Product Feature:
-
* 100% brand new , high Quality and duarable -
* Tested before shipping -
* Easy to use -
* Technical support and datasheet are available if you need . -
* Professional manufacturer in all kinds of IC chip testing sockets and adapters. -
* More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

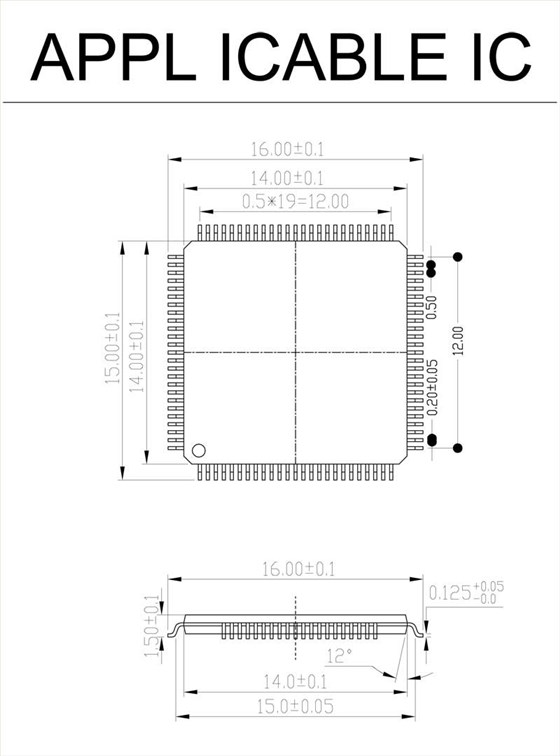

Specification and Dimension :
-

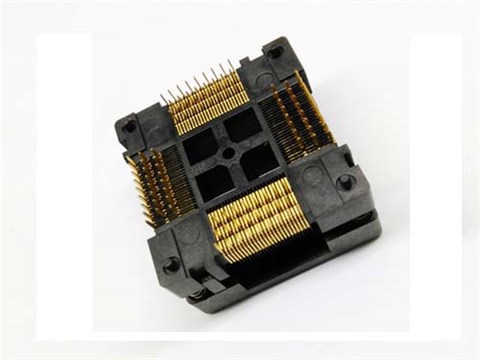

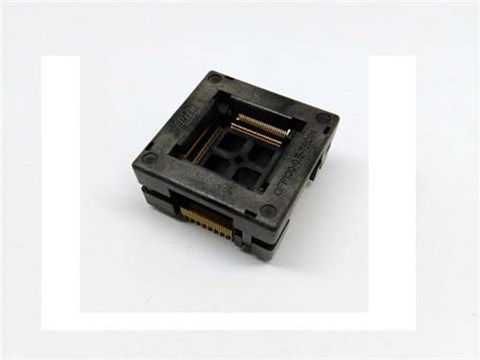

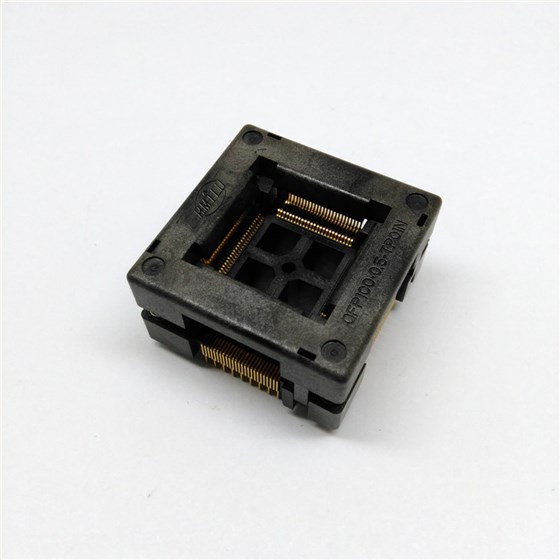

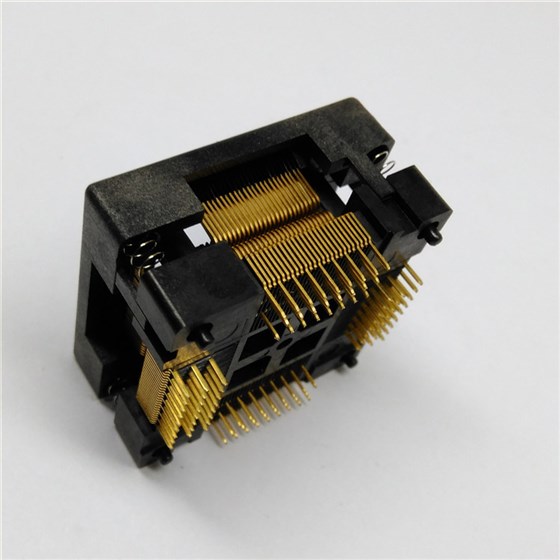

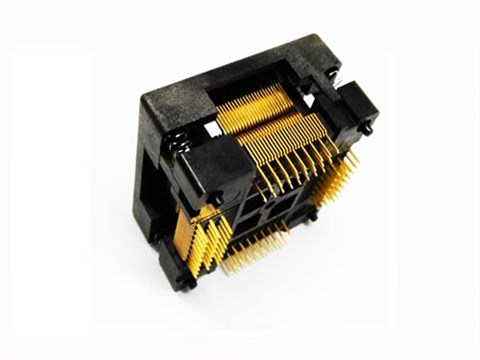

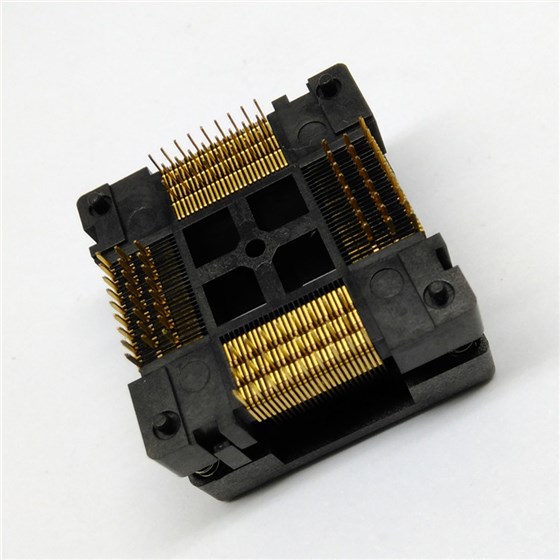

* Type : Test & Programming Socket ( with pcb ) -
* Package : QFP100 , TQFP100 , LQFP100 -
* Pin Pitch : 0.5 mm -
* Pin Count : 100 pins -
* Applicable IC body size : 14x14 mm -
* IC tip-to-tip : 16x16 mm
Specification and Dimension
| Package: | QFP 100 , TQFP 100 , LQFP 100 |
| Pin Pitch: | 0.5 mm |
| Pin Count: | 100 pins |
| Applicable IC body size: | 14x14 mm |
|
|
|
