Product Feature:
-
* 100% brand new , high Quality and duarable -
* Tested before shipping -
* Easy to use -
* Technical support and datasheet are available if you need . -
* Professional manufacturer in all kinds of IC chip testing sockets and adapters. -
* More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

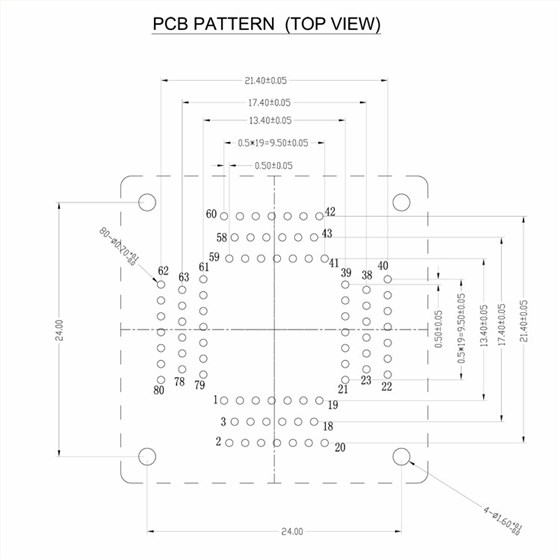

Specification and Dimension :
-
* Type : Test & Burn in Socket ( with pcb ) -
*Package : QFP80 , TQFP80 , LQFP80 -
* Pin Pitch : 0.5 mm -
* Pin Count : 80 pins -
* Applicable IC body size : 12x12 mm -
* IC tip-to-tip : 14x14 mm
Specification and Dimension
| Model Number: | QFP 80 Test & Burn in Socket |
| Type: | Test & Burn in Socket ( without pcb ) |
| Package: | QFP 80 , TQFP 80 , LQFP 80 |
| Pin Pitch: | 0.5 mm |
| Pin Count: | 80 pins |
| Applicable IC body size: | 12x12 mm |
| IC tip-to-tip: | 14x14 mm |
| Structure: | Open Top |
| Life Span: | 15,000 times |
| Model: | OTQ-80-0.5-02B |
| Specification and Dimension : |
* Type : Test & Burn in Socket ( with pcb ) * Package : QFP 80 , TQFP 80 , LQFP 80 * Pin Pitch : 0.5 mm * Pin Count : 80 pins * Applicable IC body size : 12x12 mm * IC tip-to-tip : 14x14 mm |

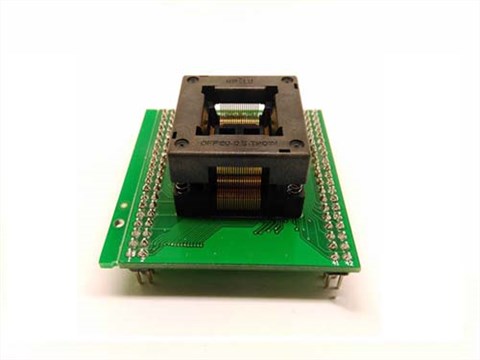

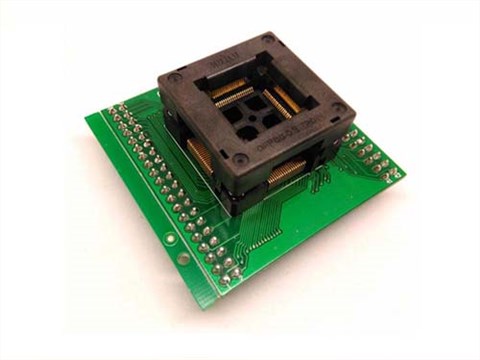

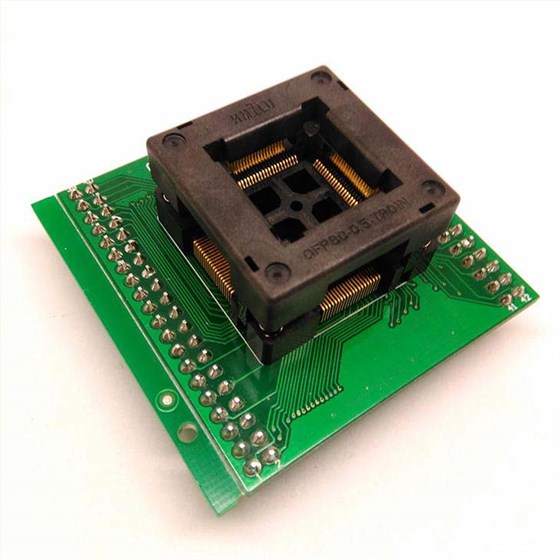

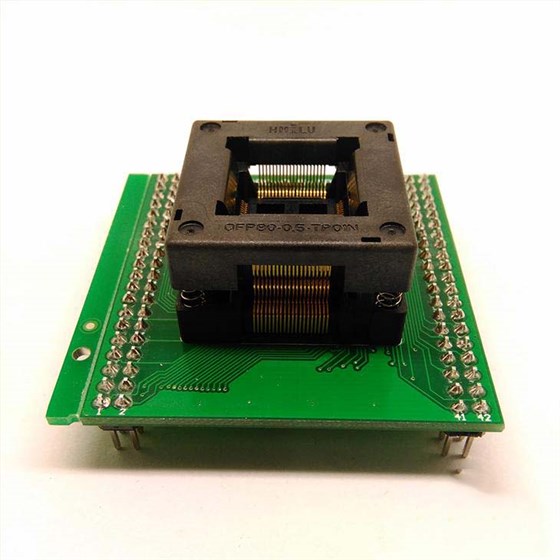

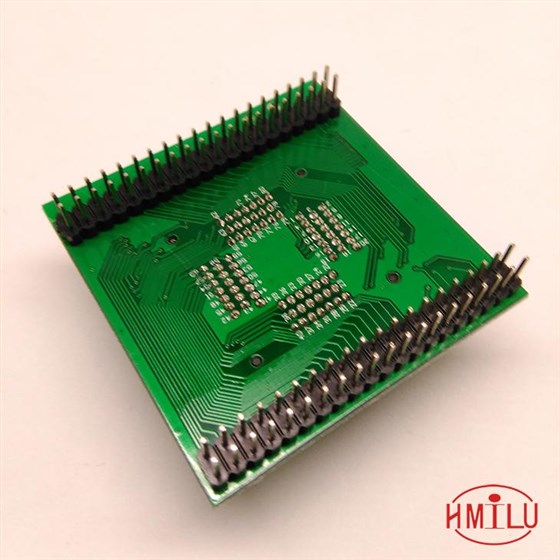

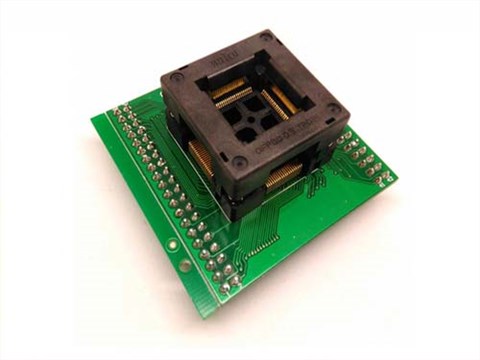

Product image
