QFN48-0.5-7*7 clamshell burn in socket

QFN48-0.5-7*7 clamshell burn in socketQFN48-0.5-7*7 clamshell burn in socketQFN48-0.5-7*7 clamshell burn in socket

Product Introduction

IC550-0484-004-G test burn in Socket QFN48 MLF48 IC Test Adapter Pitch 0.5mm Clamshell Chip Size 7*7 Flash Adapter Burn in Socket

Product details

Product features


  • 1.Product Usage : programming socket , test socket , burn in and test for chipQFN48

  • 2.Applicable Package : QFN48 , pin pitch 0.5mm

Specification and Dimension

Type QFN 48-0.5
Pin pitch 0.5 mm
Pin Count 48
Applicable IC Body Dimension 7*7 mm

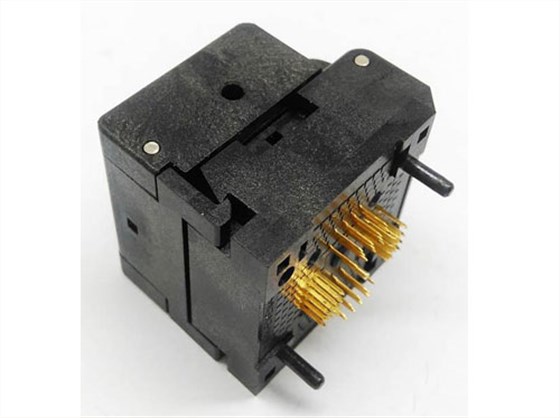

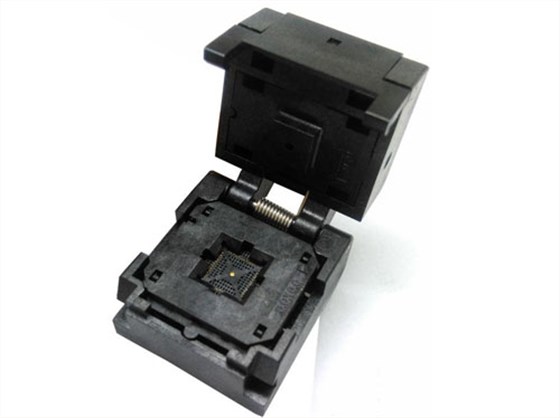

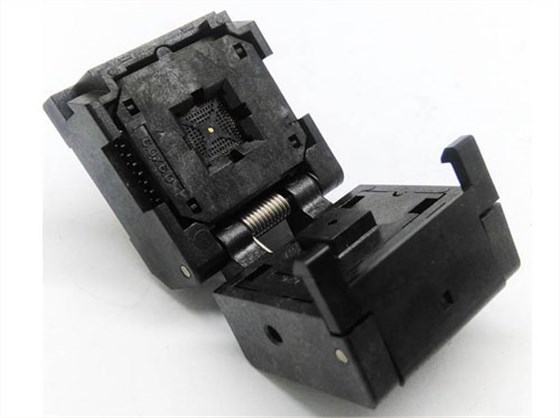

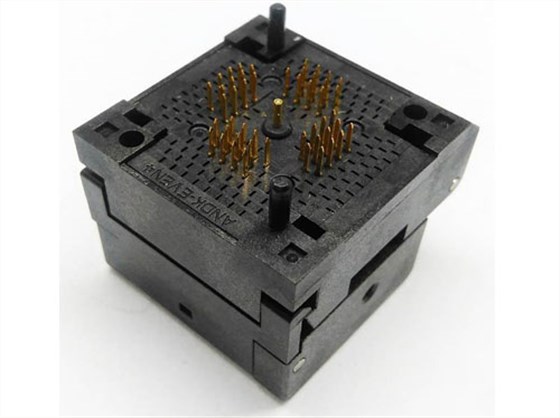

Product image

CB1

CB3

CB2

CB4
