Product Feature:
-
100% brand new , high Quality and duarable -
Tested before shipping -
Easy to use -
Technical support and datasheet are available if you need . -
we are the original manufacturer and welcome anyone to be our distribution agents -
Professional manufacturer in all kinds of IC chip testing sockets and adapters. -
More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .
Specification and Dimension :
-

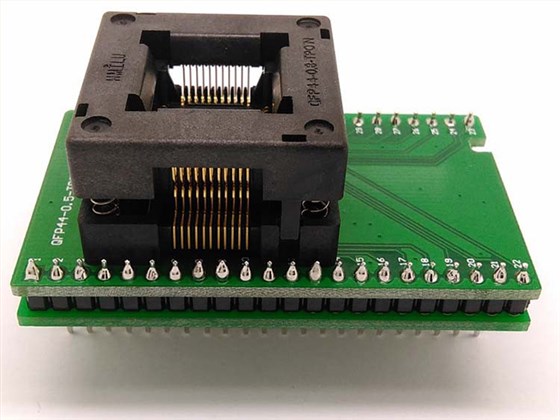

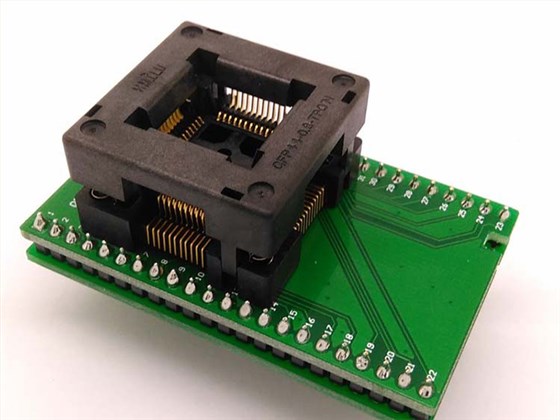

*Type : Test & Programming Socket ( with pcb )
* Package : QFP44 , TQFP44 , LQFP44
* Pin Pitch : 0.8 mm
* Pin Count : 44 pins

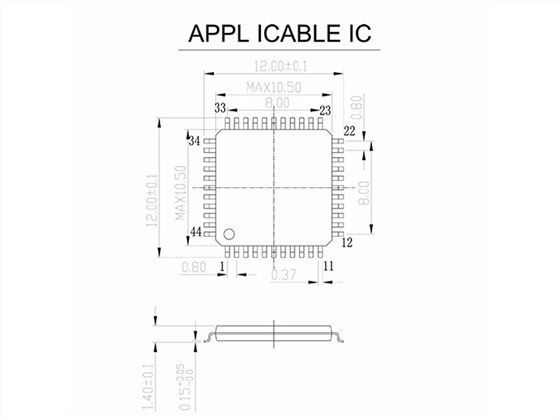

* Applicable IC body size : 10x10 mm
* IC tip-to-tip : 12x12 mm

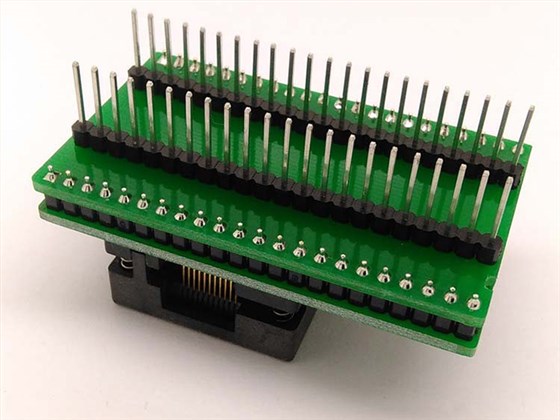

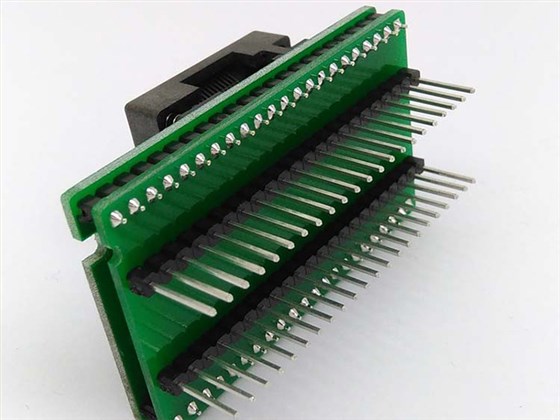

* Double-board , can plug in the DIP socket of your programmer directly .
Specification and Dimension
| Brand Name: | HMILU |
| Model Number: | QFP 44 Test & Programming Socket |
| Type: | Test Programming Socket(with scp) |
| Package: | QFP 44 , TQFP 44 , LQFP 44 |
| Pin Count | 44 pins |
| Applicable IC body size: | 10x10 mm |
| IC tip-to-tip: | 12x12 mm |
| Structure: | Open Top |
| Life Span: | 15,000 times |
| Model: | FPQ-48-0.5-06 |
| Product description: |
* Type : Test & Programming Socket ( with pcb ) * Package : QFP 44 , TQFP 44 , LQFP 44 * Pin Pitch : 0.8 mm * Pin Count : 44 pins * Applicable IC body size : 10x10 mm * IC tip-to-tip : 12x12 mm * Double-board , can plug in the DIP socket of your programmer directly |
We're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you want batch purchase , please contact us , we can give you a discount .
