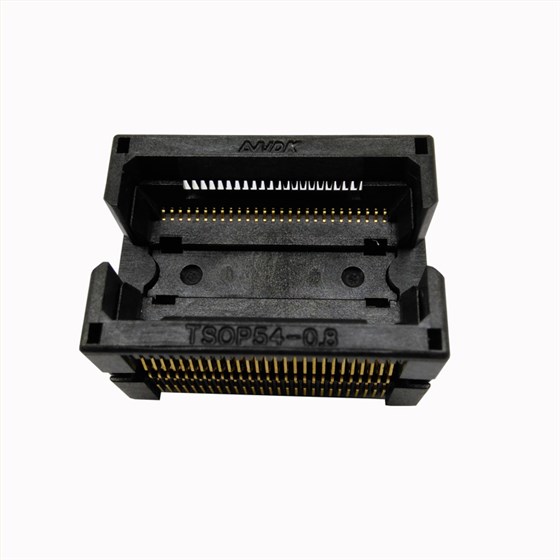

TSOP54-0.8 IC Test Socket Chip Size 18x22mm

TSOP54-0.8 IC Test Socket Chip Size 18x22mmTSOP54-0.8 IC Test Socket Chip Size 18x22mmTSOP54-0.8 IC Test Socket Chip Size 18x22mmTSOP54-0.8 IC Test Socket Chip Size 18x22mm

Product Introduction

TSOP54-0.8 IC Test Socket Chip Size 18x22mm Burn in Socket Programming Socket Adapter Conversion Block

Product details

Product Feature :


  • 1. Use double contact technology , contact more stable ,

  • 2.The socket shell use special engineering plastic , high strength , long mechanical life ,

  • 3.The shapnel use import beryllium copper , small impedance , good flexibility ,

  • 4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .

Product performance :


  • 1. Material :

  • Insulator , PEI , PPS

  • Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)

  • 2. Electrical Specification :

  • Insulation resistance : 1000m Min,At DC 500V

  • Voltage resistance : voltage resistance

  • Contact resistance : exceed 25m

  • Mechanical life : 100000Times

  • PIN feet stretch : 55g/PIN(Normal)

  • Operating temperature : Minus 65 degree to 55 degress

  • Operating force : exceed 0.9kg Max

Product Specification and Dimension :

Type TSOP 54-0.8
Pin Pitch 0.8 mm
Pin Count 54
Applicable Chip Dimension 18*22 mm

Product image

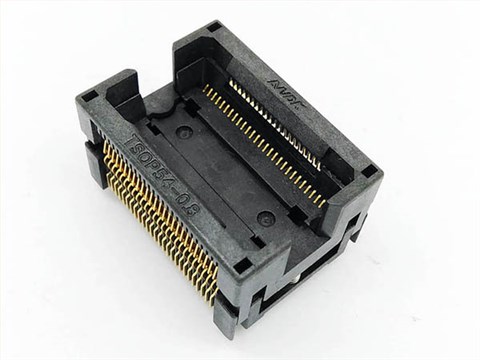

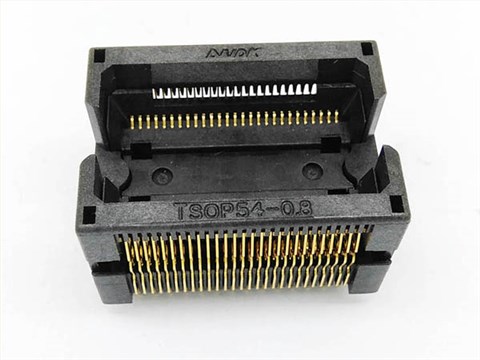

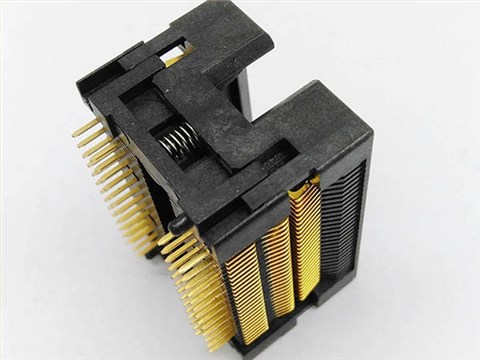

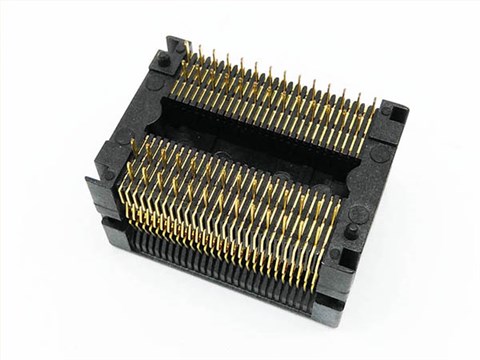

TSOP54-0.8 IC Test Socket Chip Size 18x22mm
