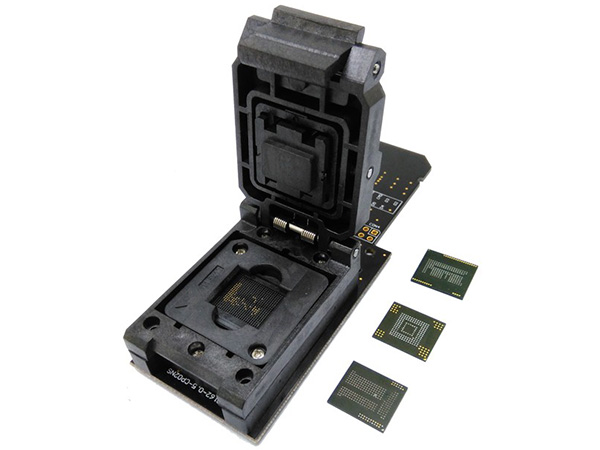

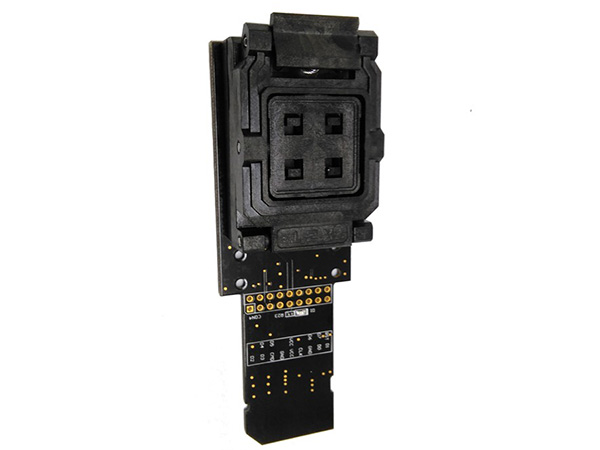

3 IN 1 eMMC153/169 eMCP162/186 eMCP221 Tester Socket Reader prog
3 IN 1 eMMC153/169 eMCP162/186 eMCP221 Tester Socket Reader programmer BGA153 BGA169 BGA162 BGA186 BGA221 Data Recovery repair
Product features
-
Apply to eMMC/eMCP of Samsung , Sandis k , Toshiba , Hynix , Micron , HTC , MTK , Intel etc . -
Apply to BGA153/169 & BGA162/186 & BGA221 test -
eMMC/eMCP data can be read and written fastly -
Accurate positioning on flat bottom pad and solder of eMMC/eMCP -

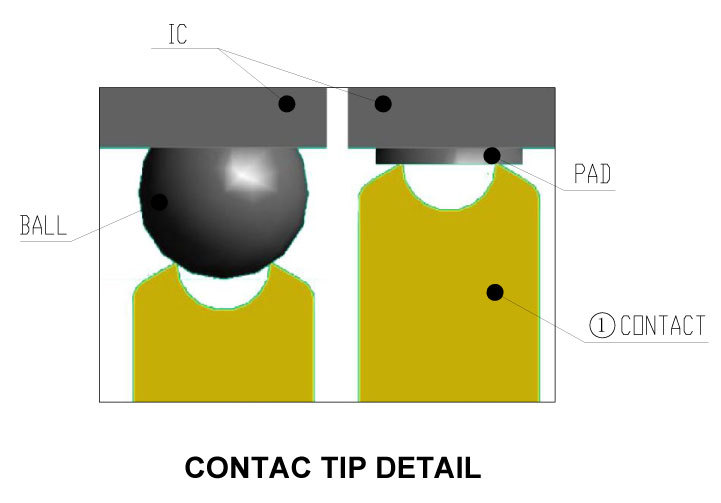

Support flat bottom and solder ball testing . -
Technical support and datasheet are available if you need . -
we are the original manufacturer and welcome anyone to be our distribution agents -
Professional manufacturer in all kinds of IC chip testing sockets and adapters. -
More Quantities with LOWER PRICE! -
More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .
Specification and Dimension

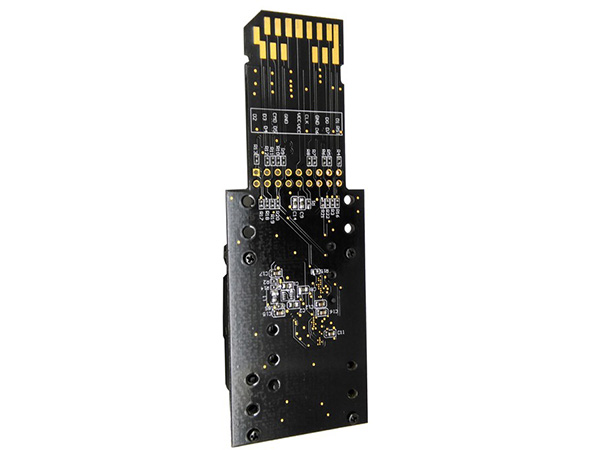

| Type : | Test & Programming Socket ( with pcb ) |
| Package : | eMMC 153/169 , eMCP 162/186 , eMCP 221 |
| Pin Pitch : | 0.5 mm |

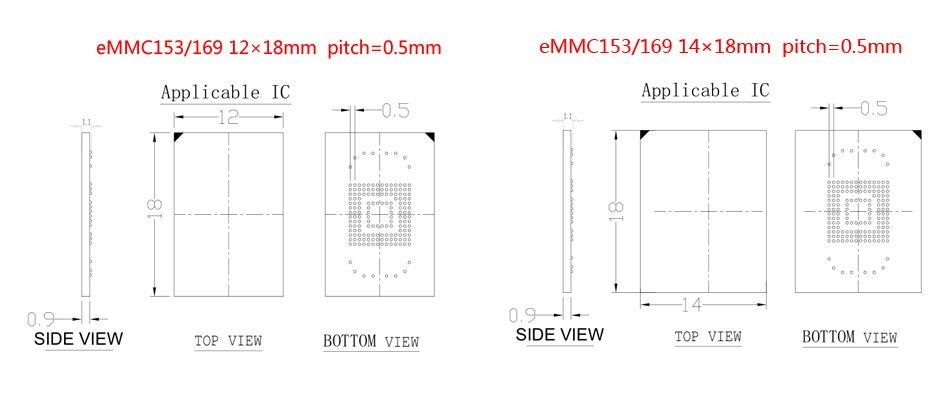

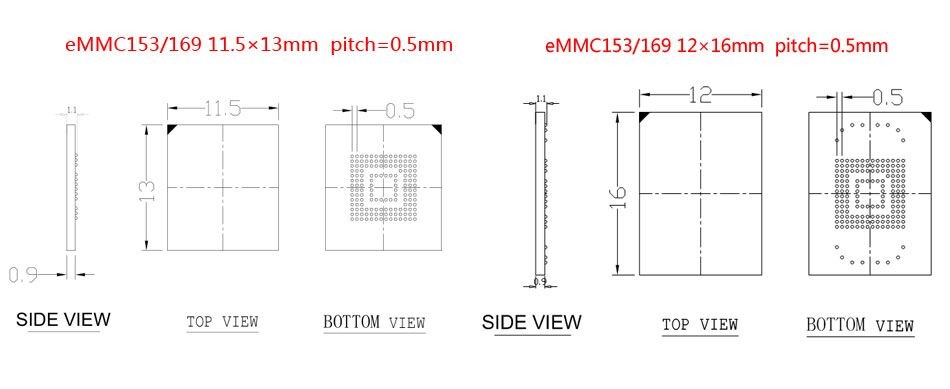

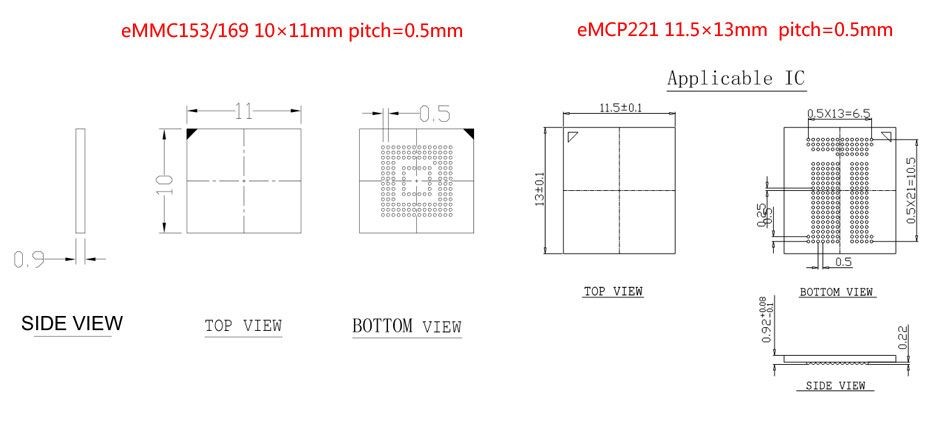

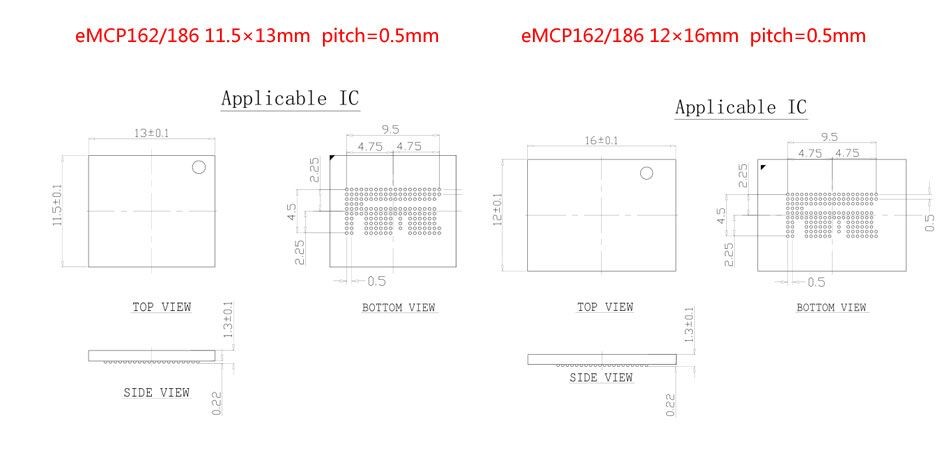

| Applicable IC body size : | 11.5X13mm , 12x16 mm , 12x18mm , 14x18mm |
| eMMC/eMCP thickness : | 0.8mm - 1.5mm |
Package Including :
-
1 * eMMC/eMCP 3 IN 1 adapter -

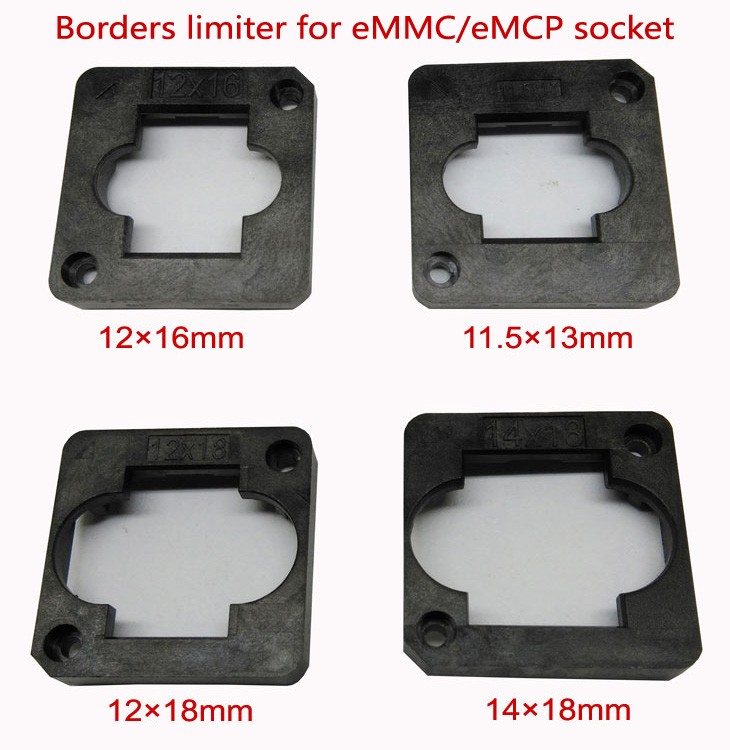

1 * border limiter 11.5x13mm -
1 * border limiter 12x16mm -
1 * border limiter 12x18mm -
1 * border limiter 14 x18 mm

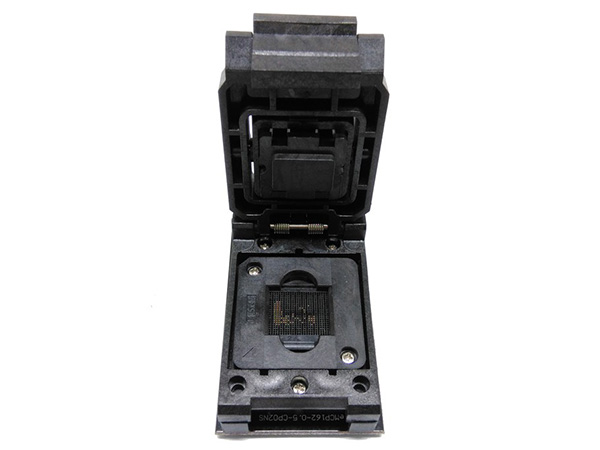

Test different IC ( BGA153/169 , BGA162/186 , BGA221 ) by moving test socket position , very easy to operate .
