SOP8 150mil socket
SOP8 burn in test socket 150mil Pitch 1.27mm IC Test Socket Adapter Open Top socket for SPI I2C nor flash SOIC8 SOP8 chip test
Product Feature
-
1. Use double contact technology,contact more stable; -
2. The socket shell use special engineering plastic,high strength,long mechanical?life; -
3. The shapnel use import beryllium copper,small impedance,good flexibility; -
4. Coating with ticken gold plating layer,contact ticken electroplate,lowest contact resistance,high reliability.
Product performance
Material:
-
1.Insulator,PEI,PPS; -
2. Shrapnel,beryllium copper Be Cu Gold plating(30) Over Nickel plating(50).
Electrical Specification
| Insulation resistance | 1000m Min,At DC 500V |
| Voltage resistance | voltage resistance |
| Contact resistance | exceed 25m |
| PIN feet stretch | 55g/PIN(Normal) |
| Mechanical life | 50000Times |
| Operating temperature | Minus 65 degree to 55 degress |
| Operating force | exceed 0.9kg Max |
Specification and Dimension
| Type | SOP 8 (16)-1.27 |
| Pin pitch | 1.27mm (150mil) |
| Pin Count | 8 |
| Applicable IC body width | 3.9mm |
|
Thoery life 20,000 times(Mechanical) Operating Temperature -55℃~+175 ℃ |
|
PRODUCT FEATURES
-
-
Small spacing
minimum pitch of 0.2mm
-
-
test accuracy
The test is accurate and the error rate is 0.001 %
-
-
High temperature
high temperature: 175 ℃, low temperature: -55 ℃
-
-
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands

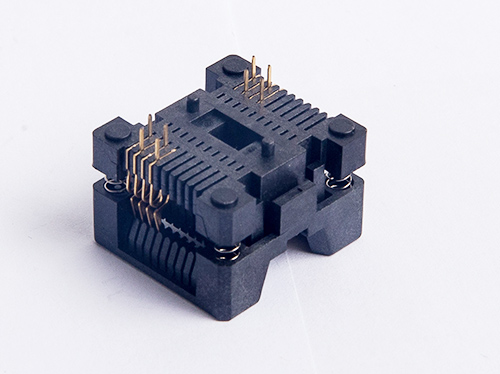

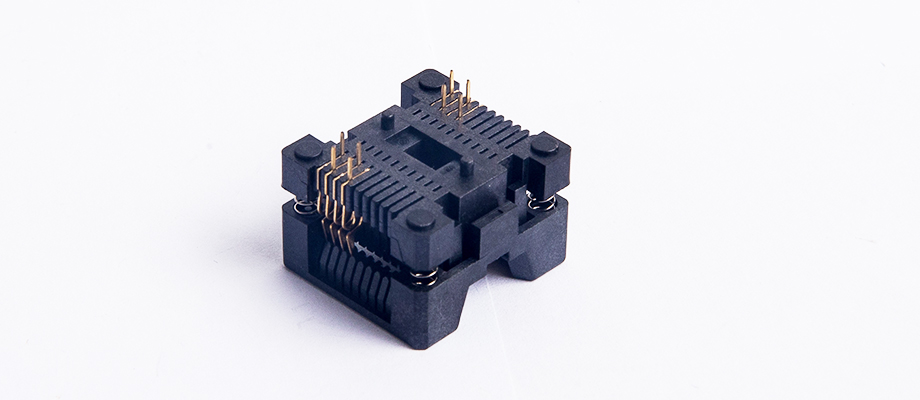

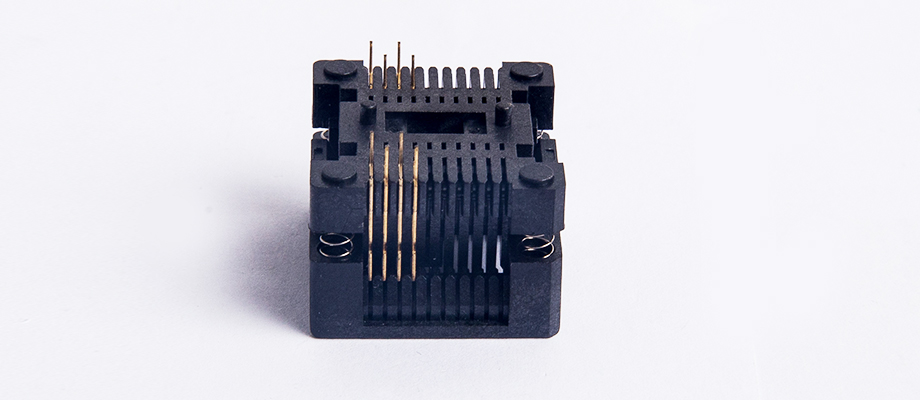

Product image
