3 IN 1 eMMC eMCP Test Socket BGA153/169 BGA162/186 BGA221 Reader
3 IN 1 eMMC eMCP Test Socket BGA153/169 BGA162/186 BGA221 Reader 11x10mm 11.5x13mm 12x16mm 12x18mm 14x18mm Flash Data Recovery
Product features
-
Apply to eMCP and eMMC of Sumsung, Sandis k, Toshiba, Hynix, Micron, MTK and Intel. -
Apply to BGA153 BGA169 BGA162 BGA186 BGA221.(just need to change the corresponding socket) -
Easy operation by just inserting the USB into PC. -
It provides a compact test solution for eMMC eMCP used in applications such as mobile, data recorder, the Internet of things, etc. -
Test, debug, validation, and programming of eMMC eMCP device -
Failure analysis / System and wafer test. -
Package and Chip qualification. -
Production prototype / Data recovery. -
We provide a simple software which can chekc the capacity , read , write and verify , please send us an email if you need it .
Specification and Dimension
| Type : | BGA 153/169 BGA 162/186 BGA221 test socket ( USB interface ) |
| BGA153/169 test socket: | 30 pins |
| BGA162/186 test socket : | 17 pins |
| BGA221 test socket : | 36 pins |
| Pin Pitch : | x |
| Pin Pitch : | 0.5mm |

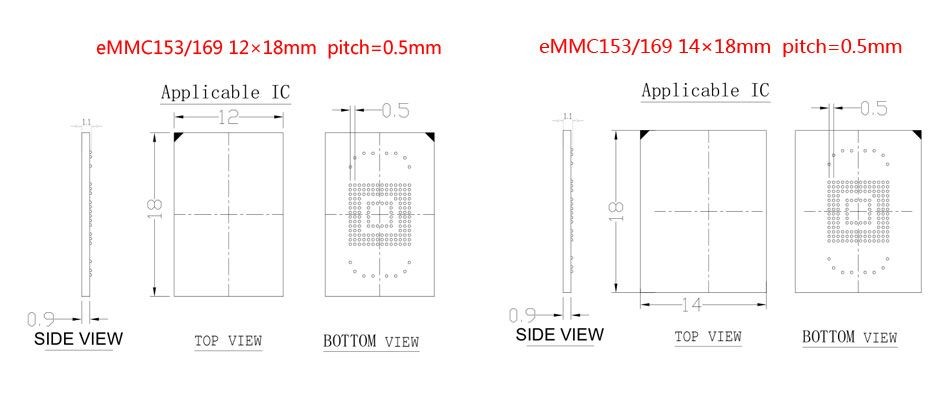

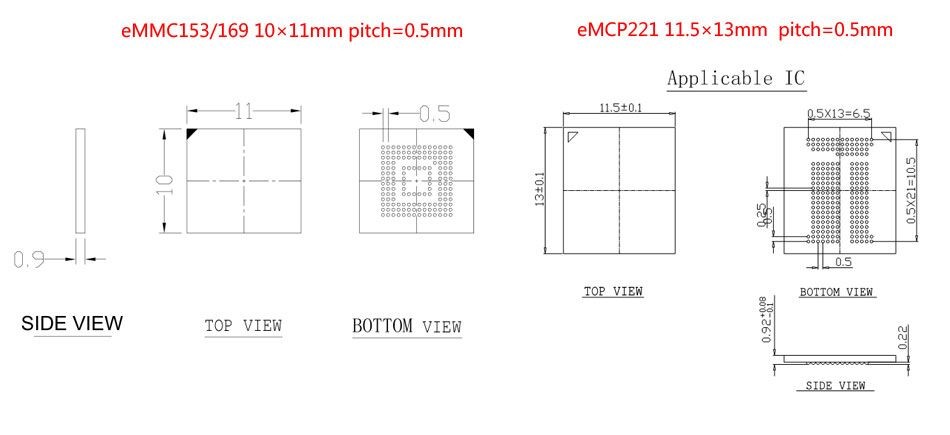

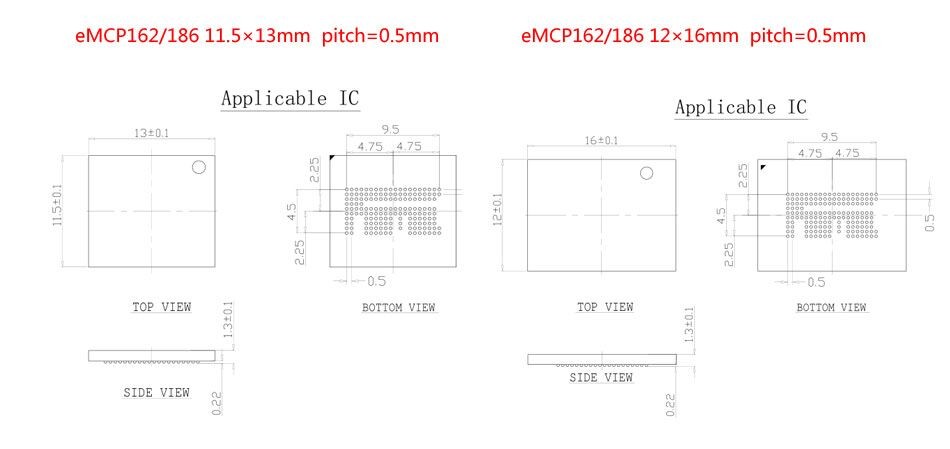

| Applicable IC Size : | 11.5x13mm , 12x16mm , 12x18mm , 14x18mm |
| Life Span : | 25,000 times |
More types sockets and adapters for eMMC , eMCP , SOP, SSOP, TSSOP, QFP, QFN, BGA, SOT, MSOP, DFN and customize design , for customized socket and more product detail , please feel free to contact us .

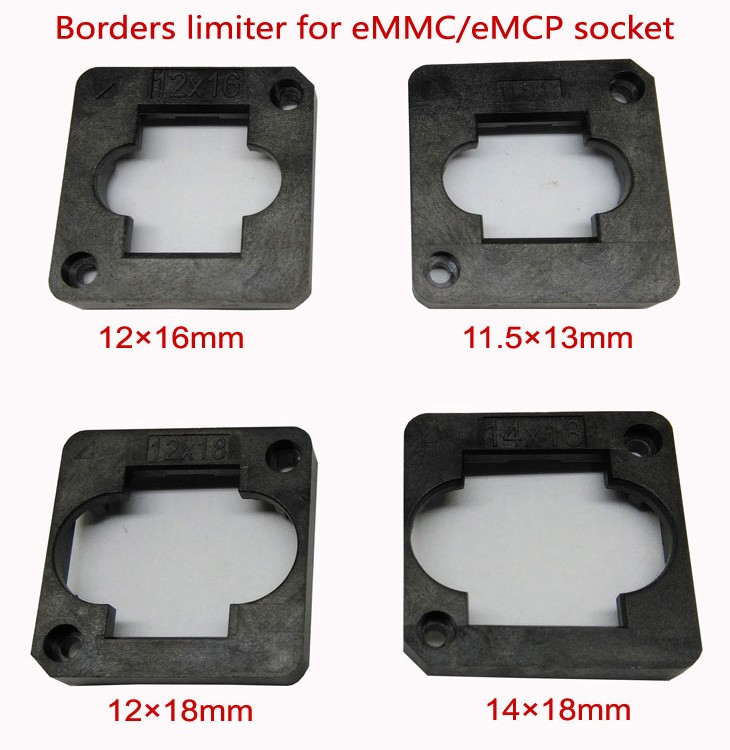

Size Limiters :
-
Applicable borders limiter / frame as below : -
4 pcs / lot 11.5x13mm/12x16mm/12x18mm/14x18mm -
Single size 11.5x13mm -
Single size 12x16mm -
Single size 12x18mm -
Single size 14x18mm

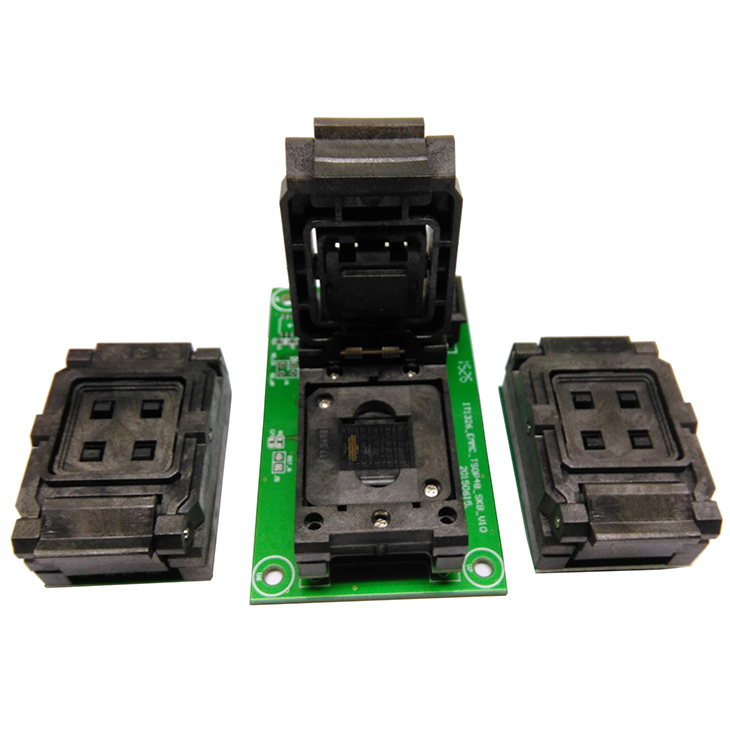

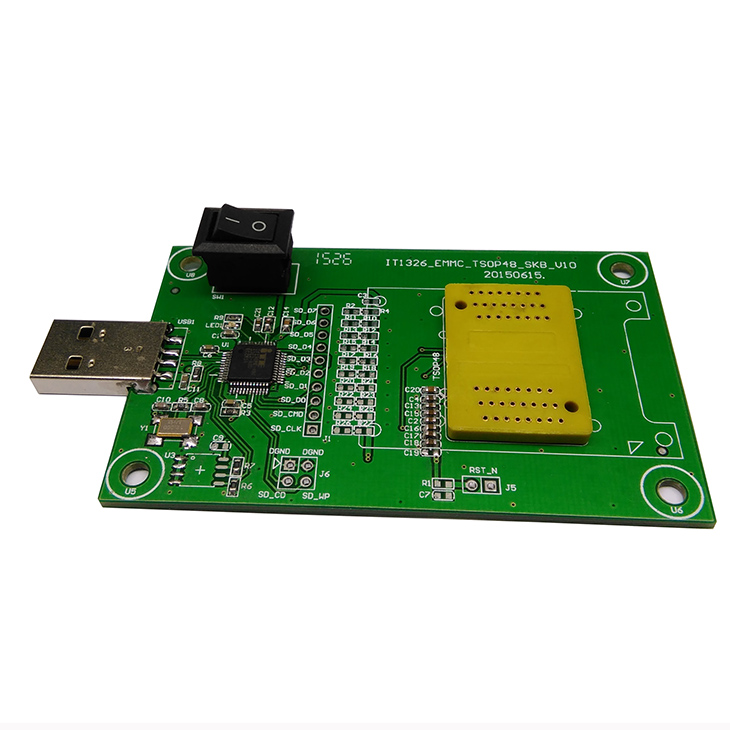

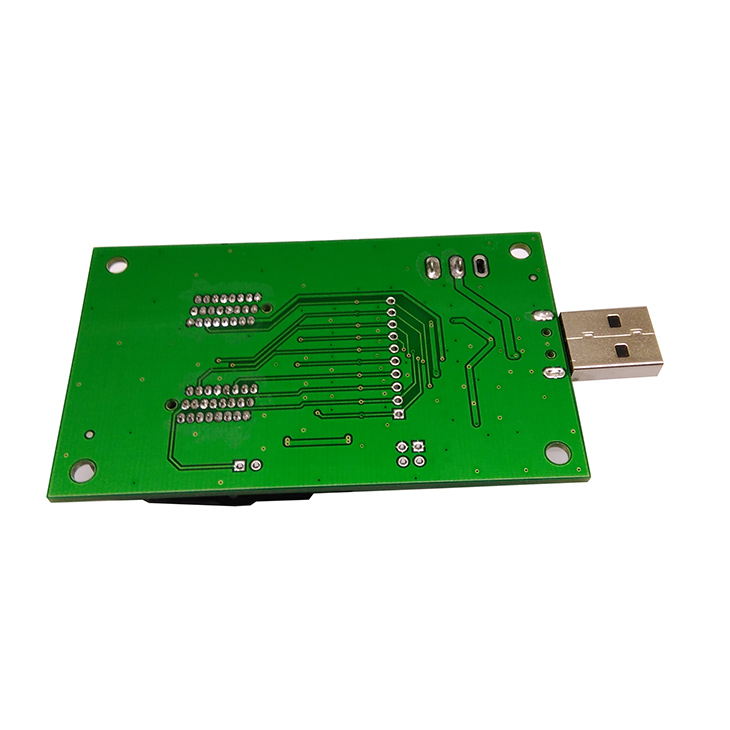

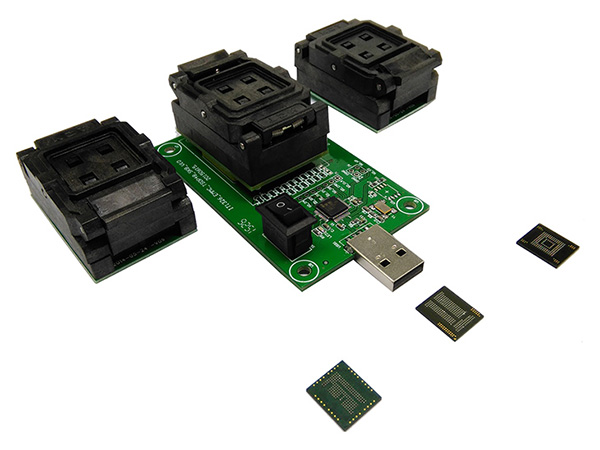

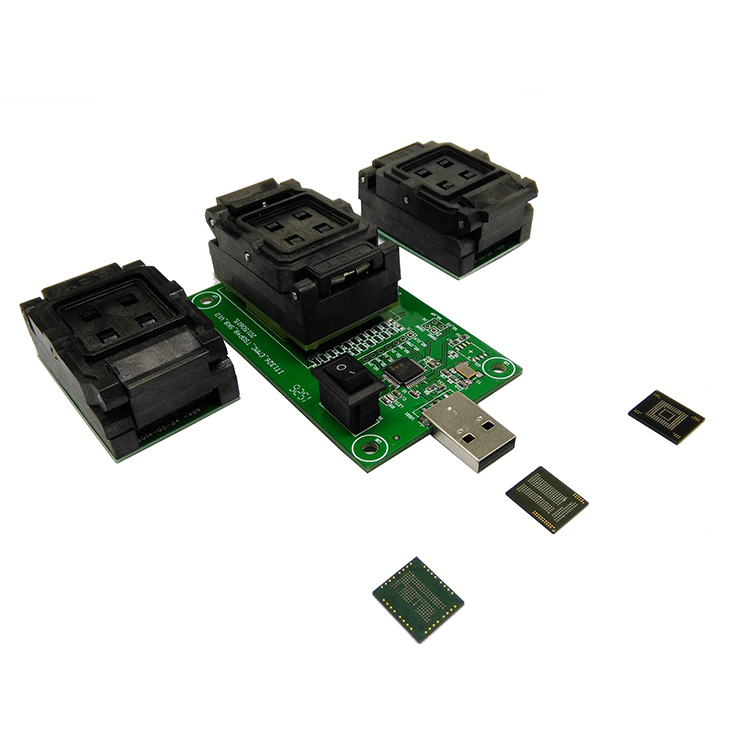

Product image
