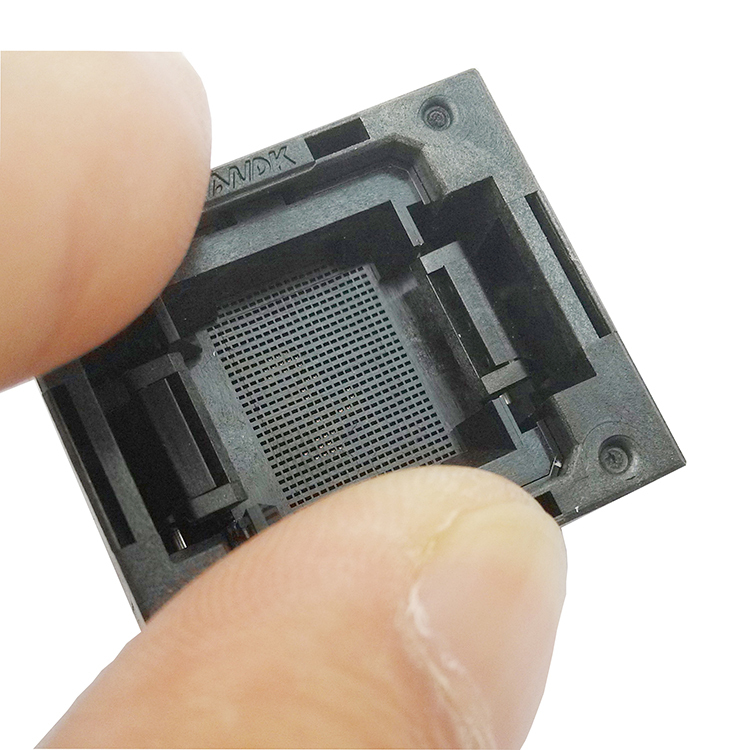

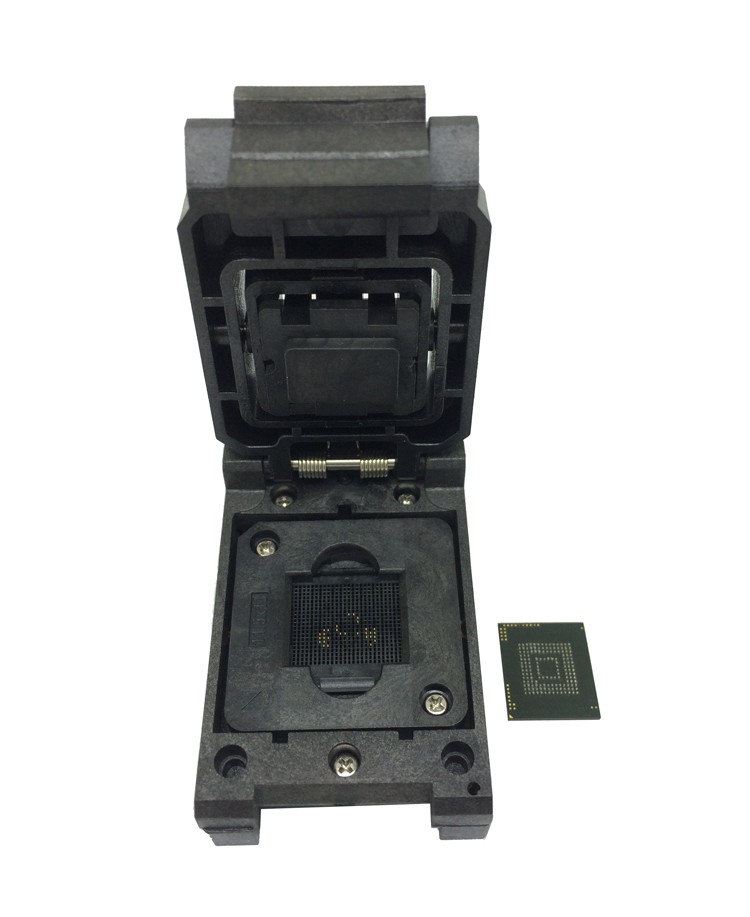

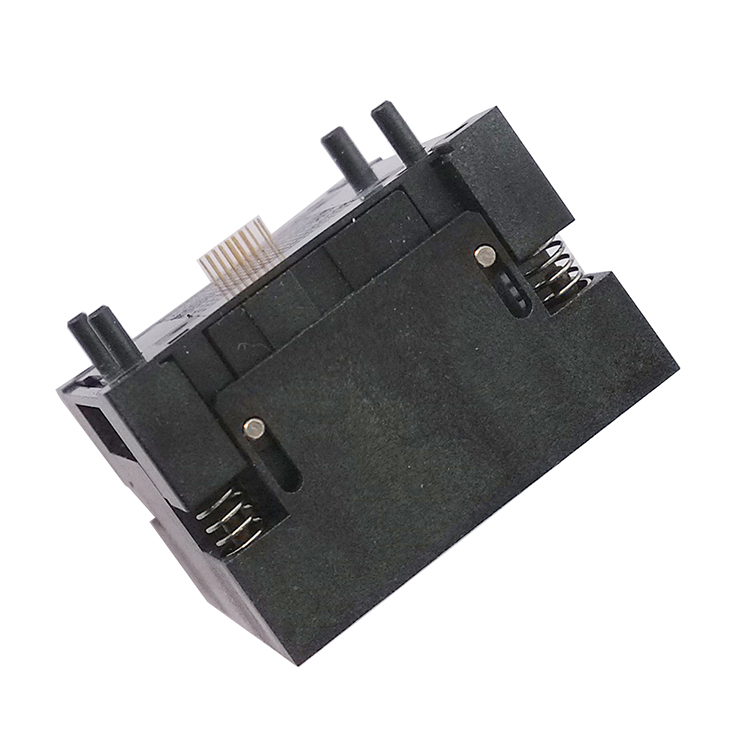

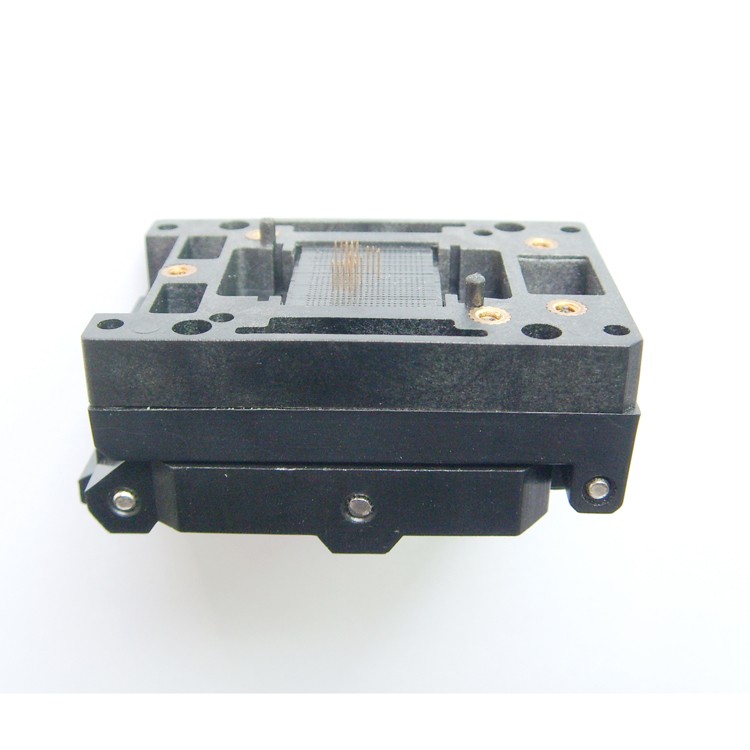

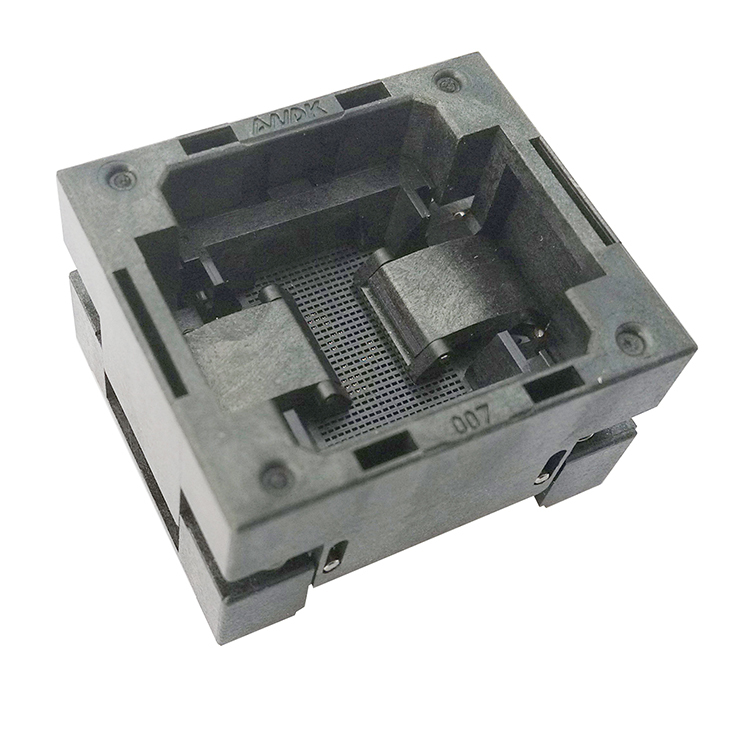

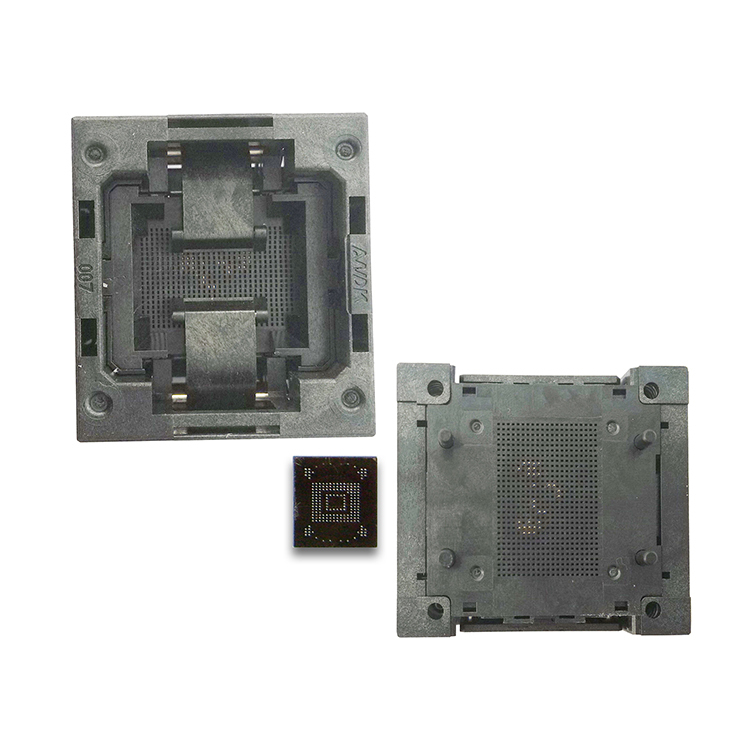

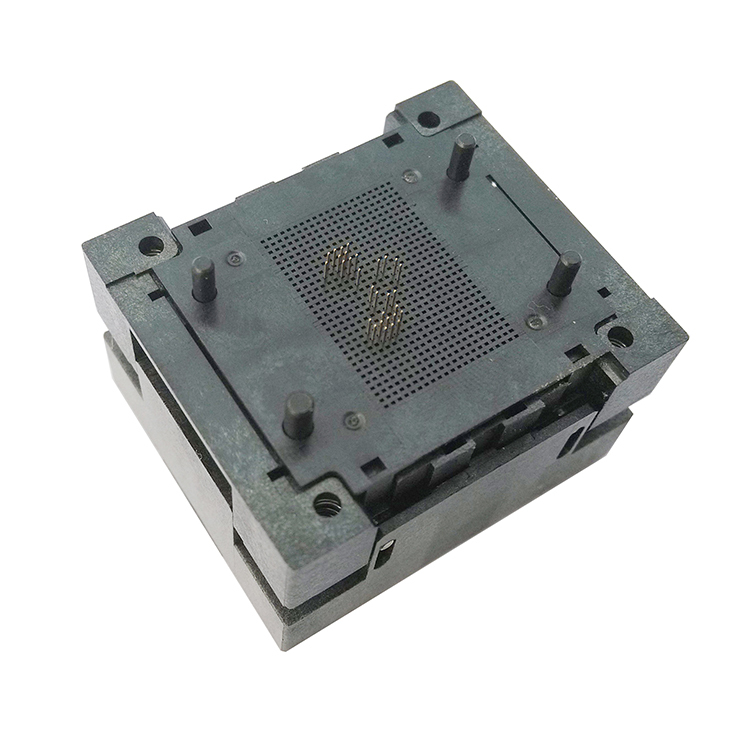

EMMC153/169 socket adapter OPEN-TOP
EMMC153/169 socket adapter OPEN-TOP smart digital device GPS device flash memory data recovery burn-in test programming code
Product Features
-
1.Apply to eMMC of Samsung , Sandis k , Toshiba , Hynix , Micron , HTC , MTK , Intel etc . -
2.Apply to BGA153 & BGA169 test -
3.eMMC data can be read and written fastly -
4. Accurate positioning on flat bottom pad and solder of eMMC -
5.Support flat bottom and solder ball testing . -
6. Technical support and datasheet are available if you need . -
7.we are the original manufacturer and welcome anyone to be our distribution agents -
8. Professional manufacturer in all kinds of IC chip testing sockets and adapters. -
9.More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .
Package Including
-
1.eMMC153/169 adapter -
2.border limiter 12x16mm

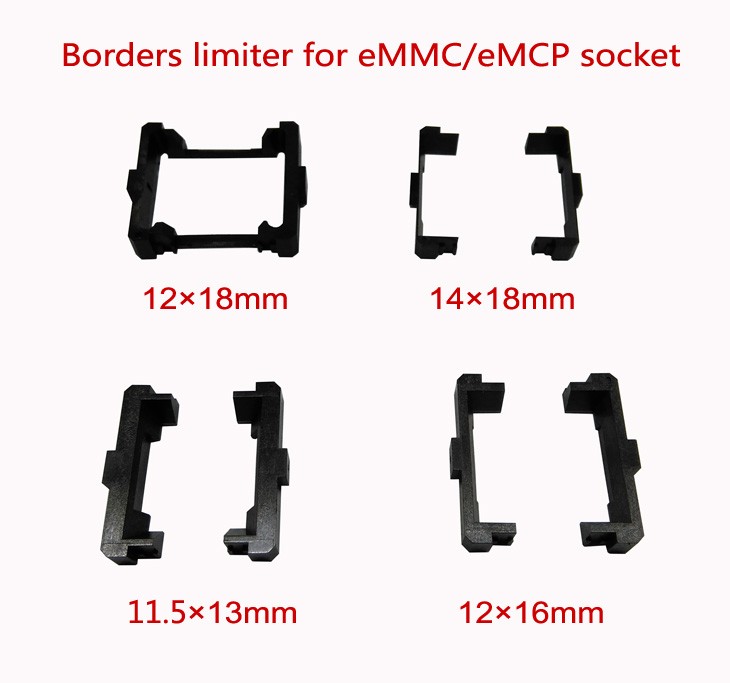

Size limiters
-
We provide one frame guider for each adapter , if you need more , please pay another $10 for per size . -
1.Applicable borders limiter / frame guider link as below : -
2.4 pcs / lot 11.5x13mm/12x16mm/12x18mm/14x18mm -
3. Single size 11.5x13mm -
4.Single size 12x16mm -
5. Single size 12x18mm -
6. Single size 14x18mm

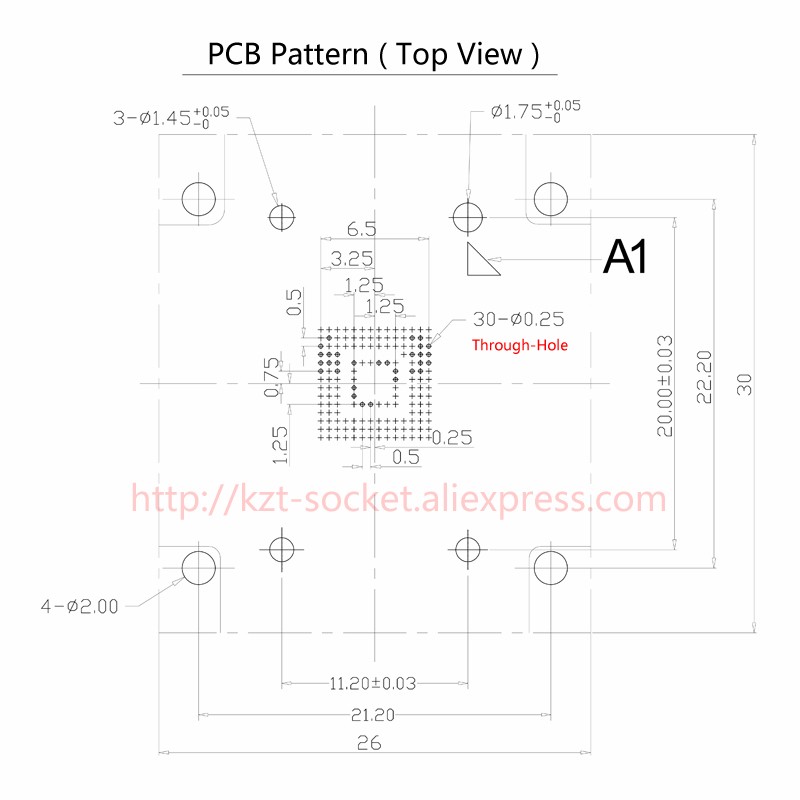

Product Specification and Dimension :
| Type | Test & Burn in Socket ( without pcb ) |
| Pin Pitch | 0.5mm |

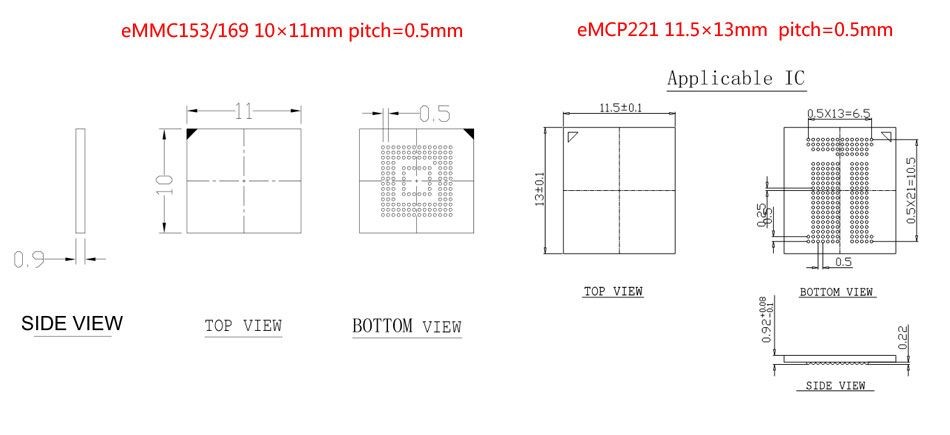

| Package | eMMC153/169 , BGA153/169 |
| Applicable IC body size | 12x16 mm |
| Pin Count | 30 pins |
| eMMC thickness | 0.8mm - 1.5mm |

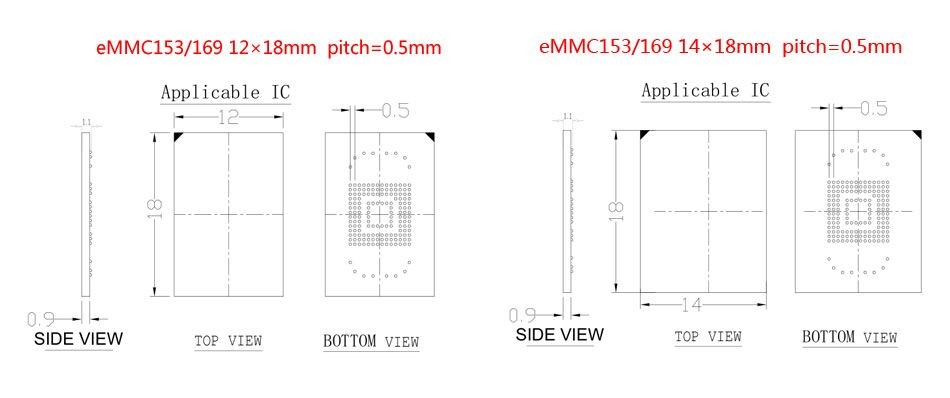

| Note | we also provide other size for this adapter ( 12x18mm , 14x18mm , 14x18mm ) , please see more product in our store |

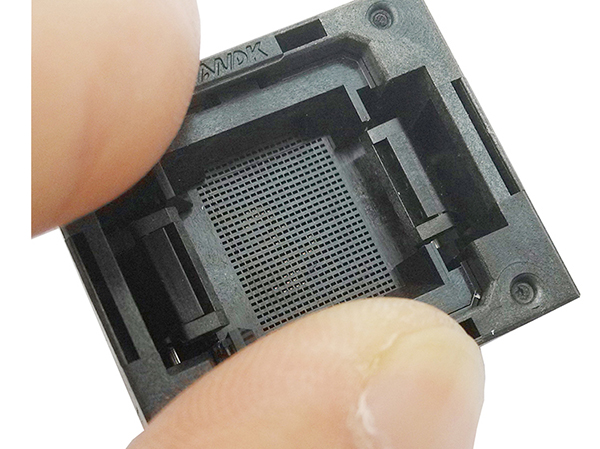

Product image
