QFN48-0.5 7*7 programming adapter
IC550-0484-004-G Programming Socket QFN48 MLF48 IC Test Adapter Pitch 0.5mm Clamshell Chip Size 7*7 Flash Adapter Burn in Socket
Product features
-
1.Product Usage : programming socket , test socket , burn in and test for chipQFN48 -
2.Applicable Package : QFN48 , pin pitch 0.5mm

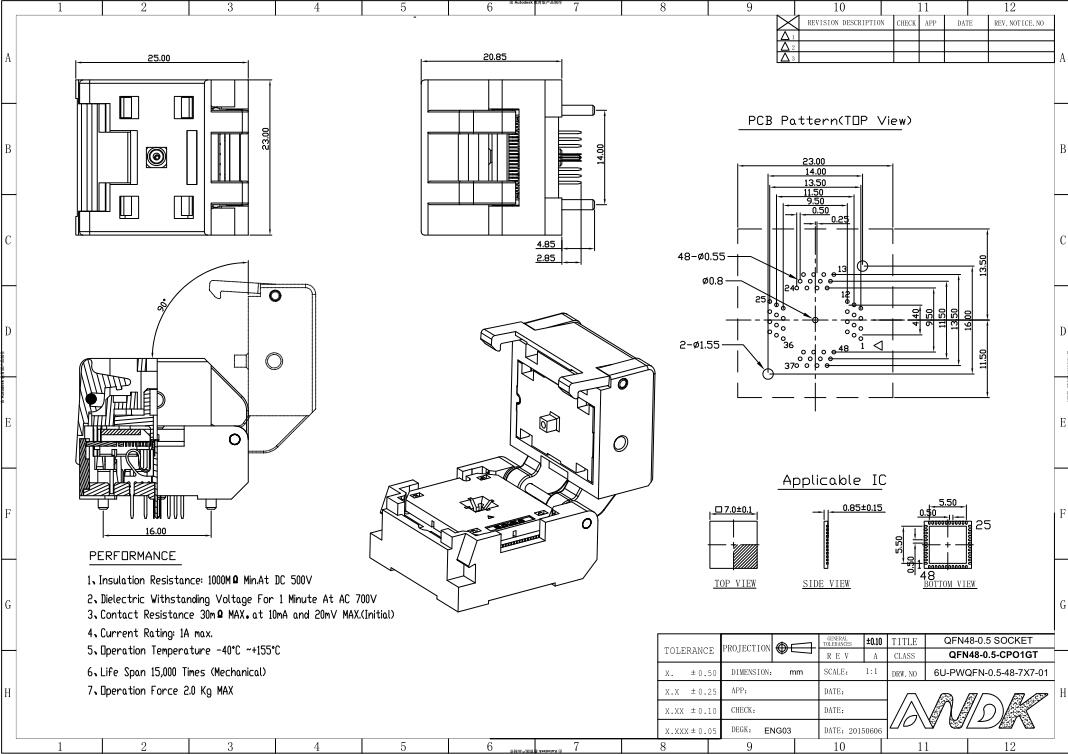

Specification and Dimension
| Type | QFN 48-0.5 |
| Pin pitch | 0.5 mm |
| Pin Count | 48 |
| Applicable IC Body Dimension | 7*7 mm |

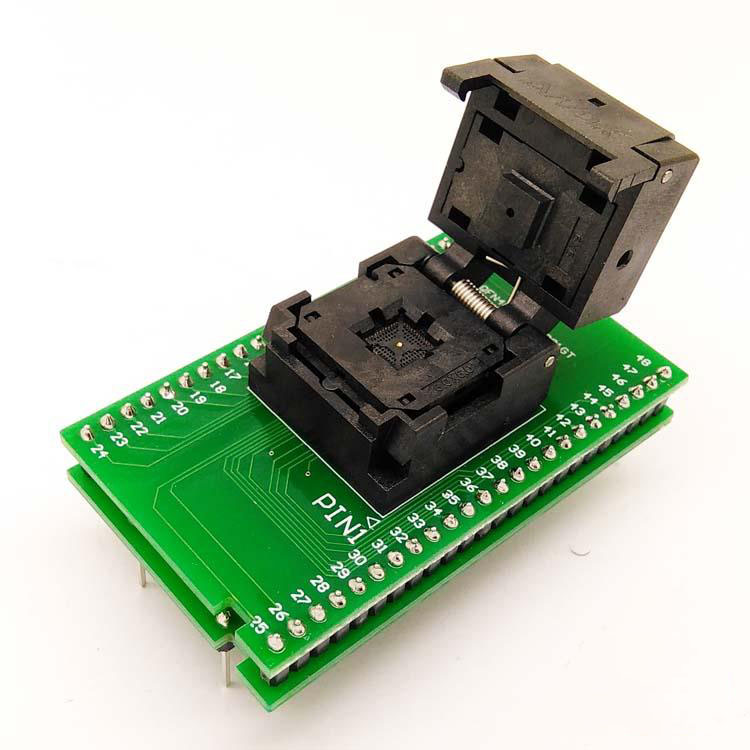

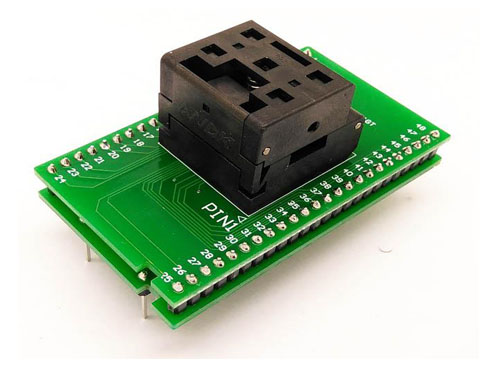

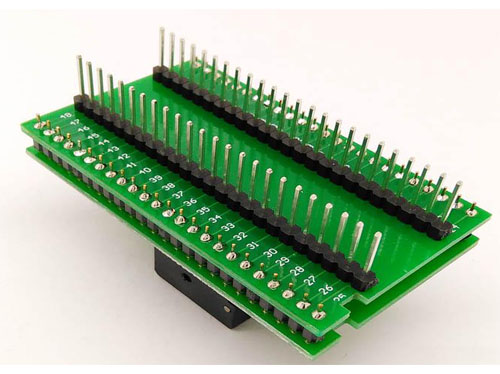

Product image
QFN48 socket MLF48 socket WLCSP48 socket IC550 0484 004 G IC test programming adapter SMD ZIF adapter
