QFN52 -0.4 7*7 open top burn in socket
QFN52 Burn in Socket QFN52 MLF52 IC Test Socket Pitch 0.4mm open top burn in Chip Size 7*7 Flash Adapter Programming Socket
Product features
-
1. Product Usage : burn in socket , test socket , burn in and test for chip QFN52 -
2.Applicable Package : QFN52 , pin pitch 0.5mm

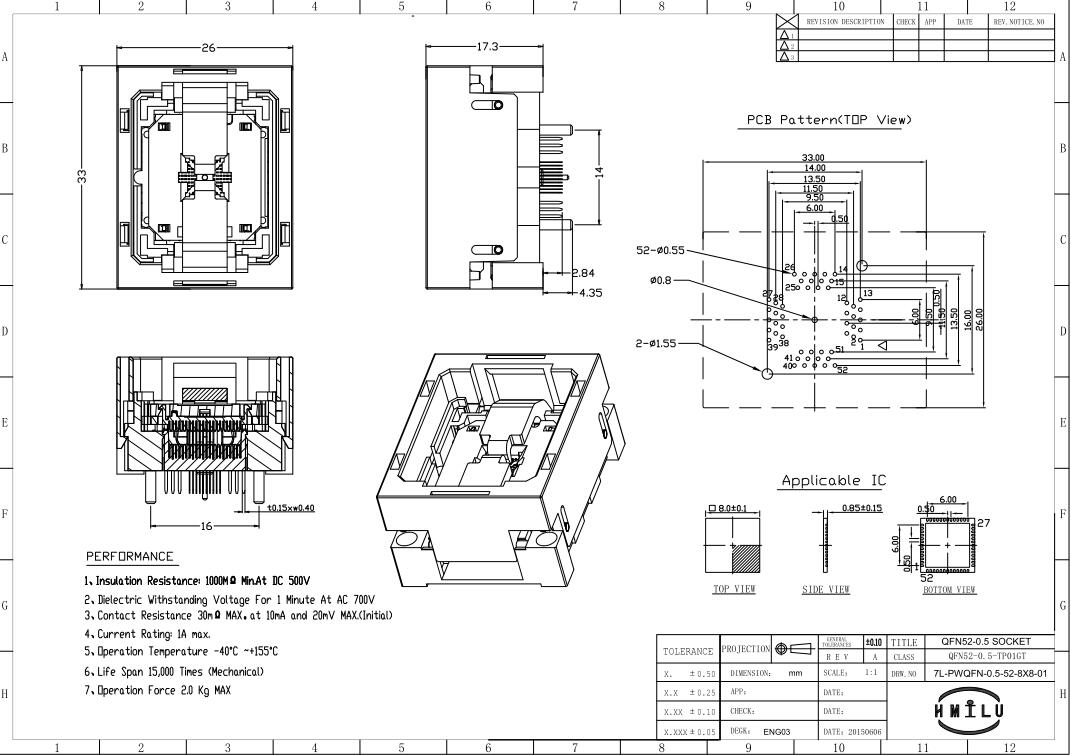

Specification and Dimension
| Type | QFN 52 |
| Pin Pitch | 0.5mm |
| Pin Count | 52 |
| Applicable IC body size | 8*8 mm |

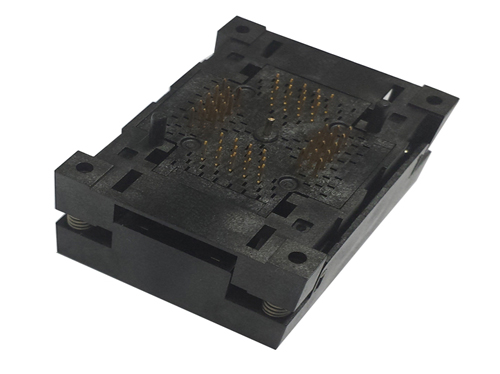

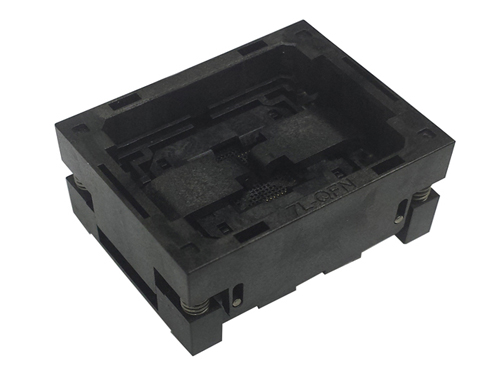

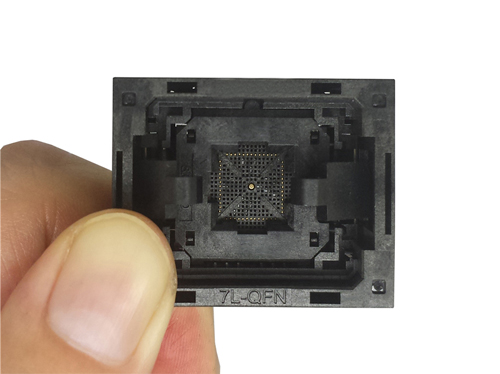

Product image
