QFN44 MLF44 WLCSP44 0.5mm 7*7 clamshell Burn in Socket
QFN44 MLF44 WLCSP44 Burn in Socket Pin Pitch 0.5mm IC Body Size 7*7mm OPEN TOP Flash Test Socket Adapter QFN44 burn-in socket
Product features
-
1.100% brand new , high Quality and duarable -
2.Tested before shipping -
3.Easy to use -
4.Technical support and datasheet are available if you need -
5.we are the original manufacturer and welcome anyone to be our distribution agents -
6.Professional manufacturer in all kinds of IC chip testing sockets and adapters -
More Quantities with LOWER PRICE! -
More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

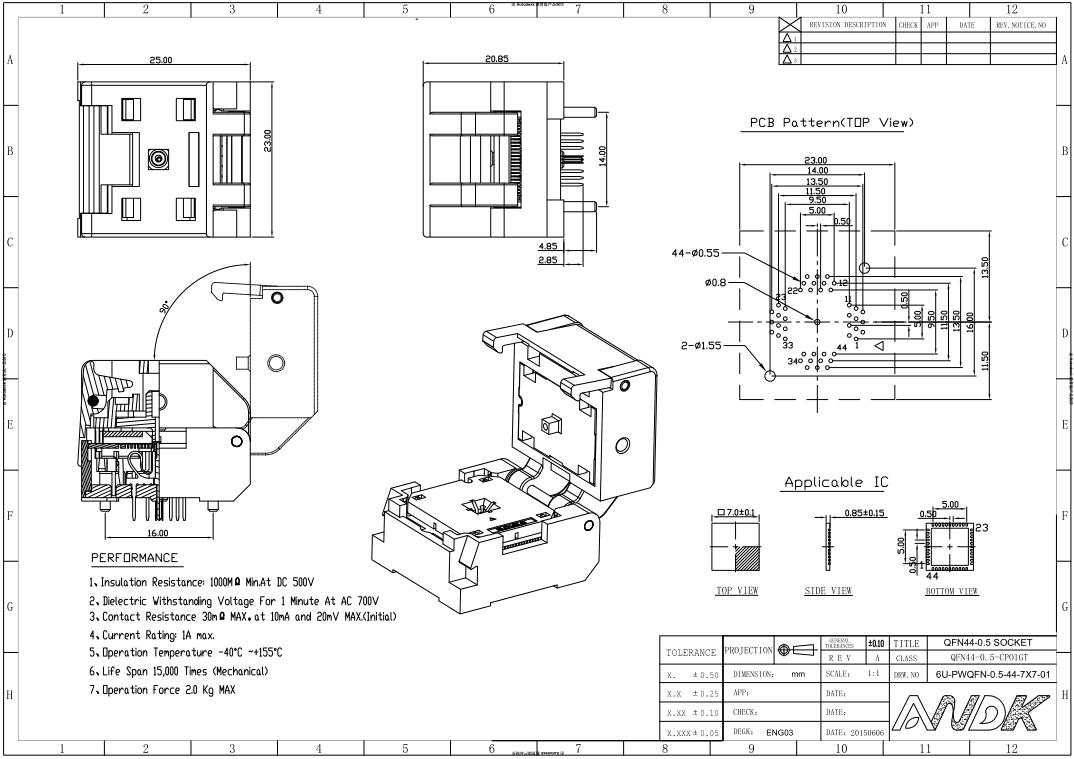

Specification and Dimension
| Type | Test & Burn in Socket ( without pcb ) |
| Package | QFN 44 , MLF 44 , WLCSP 44 |
| Pin Pitch | 0.5 mm |
| Pin Count | 44 pins |
| Applicable IC body size | 7*7 mm |
| Product description | QFN44 MLF44 WLCSP44 Burn in Socket Pin Pitch 0.5mm IC Body Size 7*7mm QFN adapter |

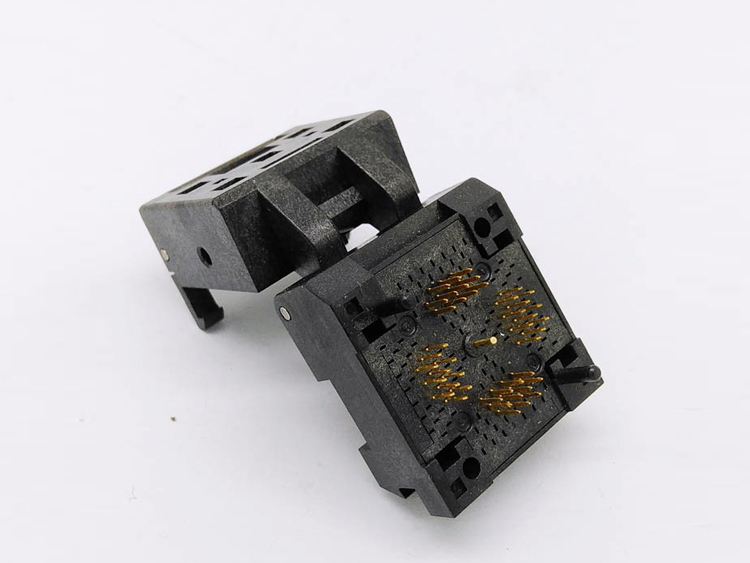

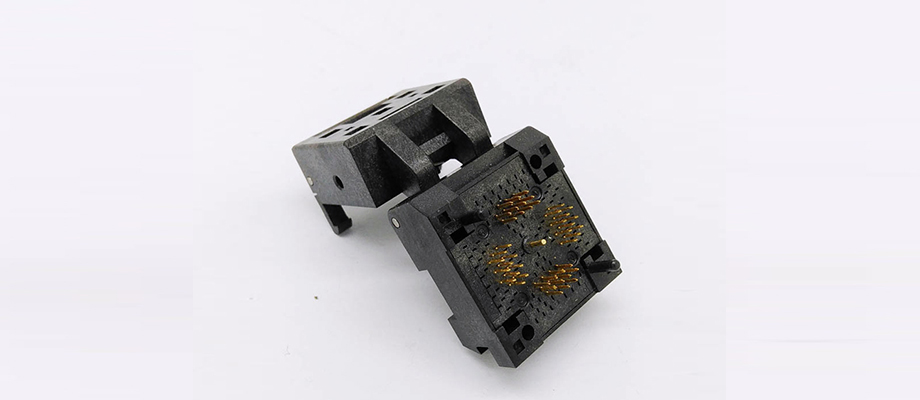

Product image
