Characteristics of eMMC BGA 162/186

•

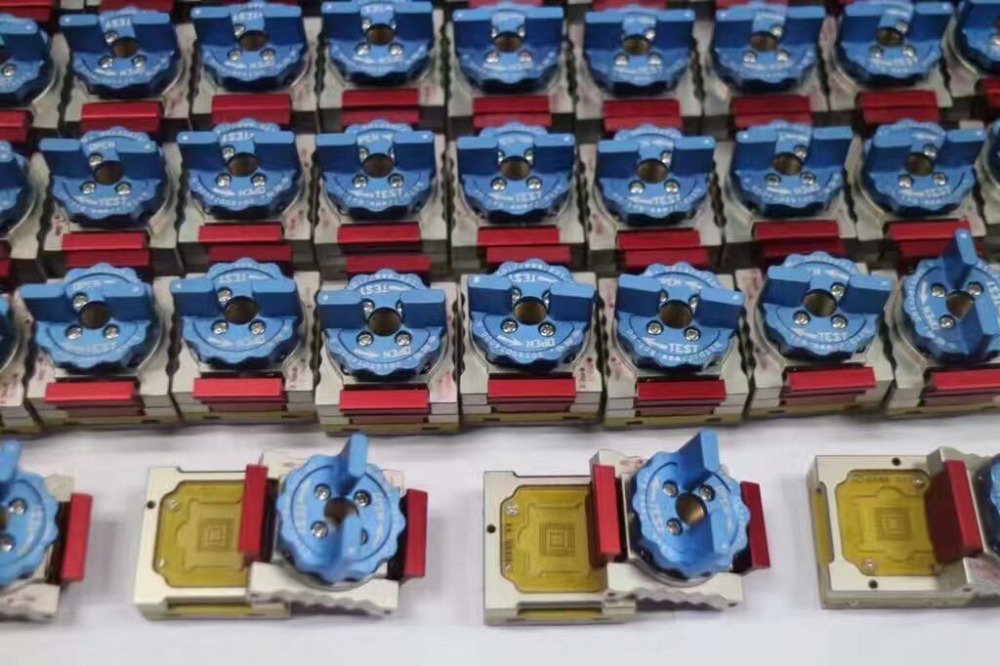

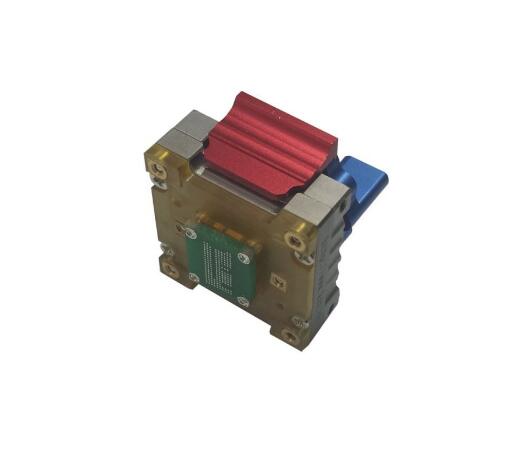

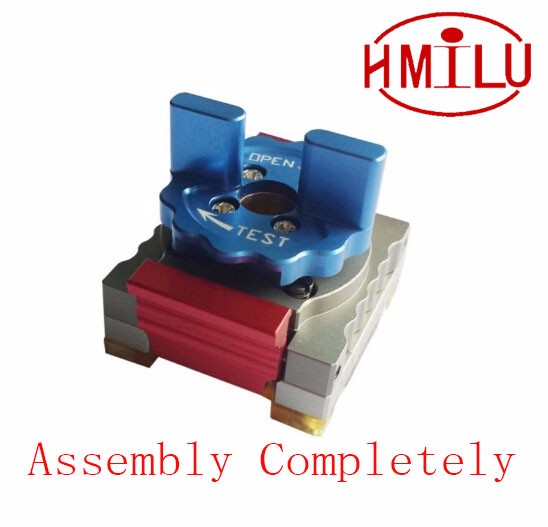

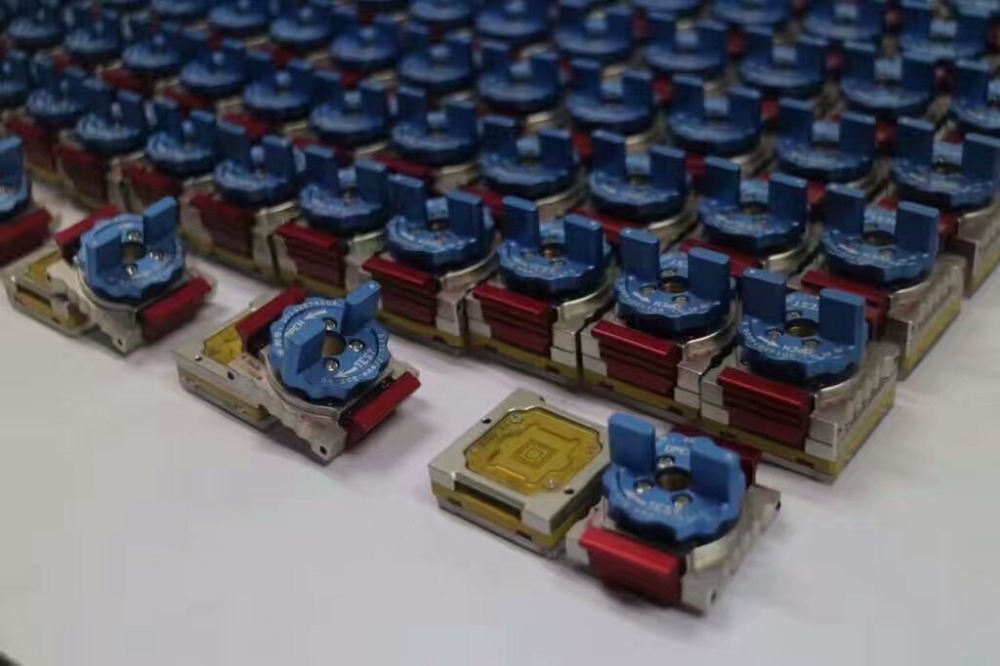

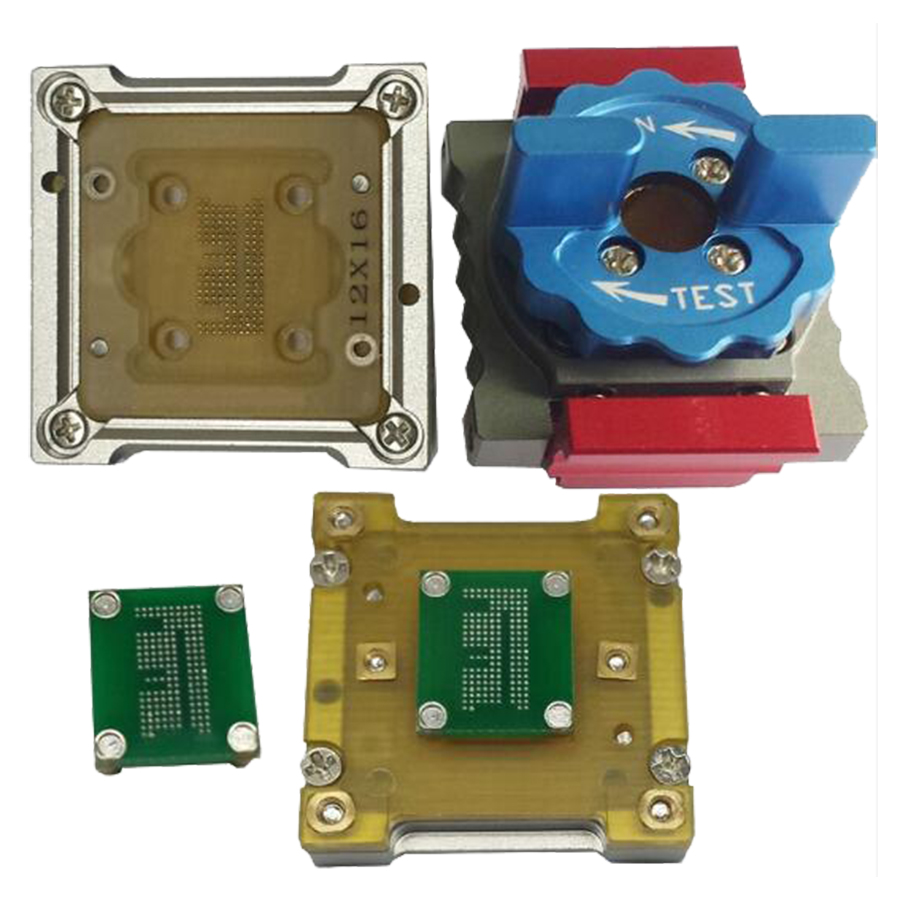

  Analysis EMMC162 BGA186 high stable socket are as below:
•
  1.Apply to different sizes of eMMC chip of Samsung, Sandisk, Micron,SK hynix etc.
•
  2.Good quality Pogo pins were chosen for stable contact.
•
  3.Materials of Popo pins: Barrel - phophated bronze Planger - Beryllium copper Spring - Piano wire
•

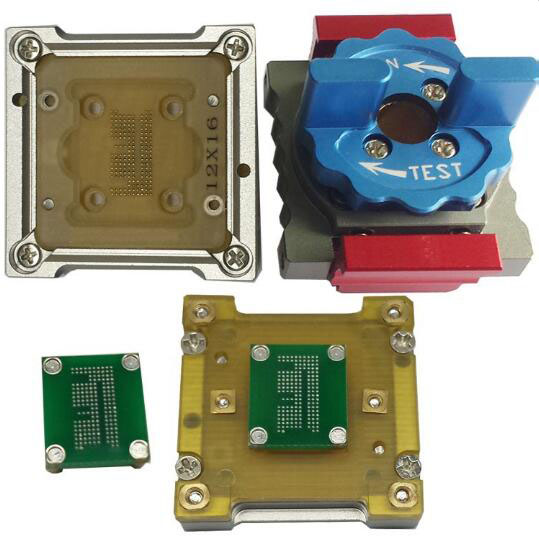

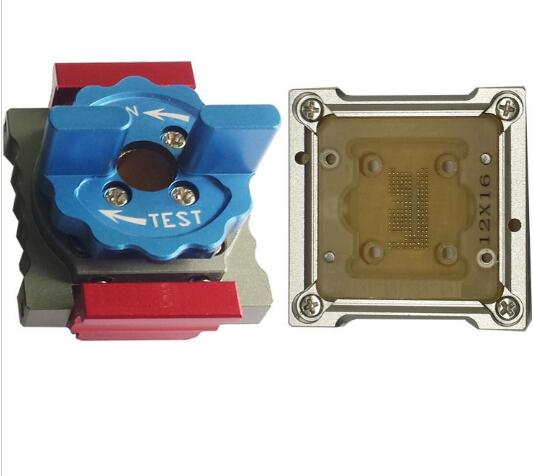

  4.Easy use for different eMMC chip sizes by using suitable guide plate. Normally there are 4 sizes 11.5x13mm, 12x16mm, 12x18mm, 14x18mm.
•

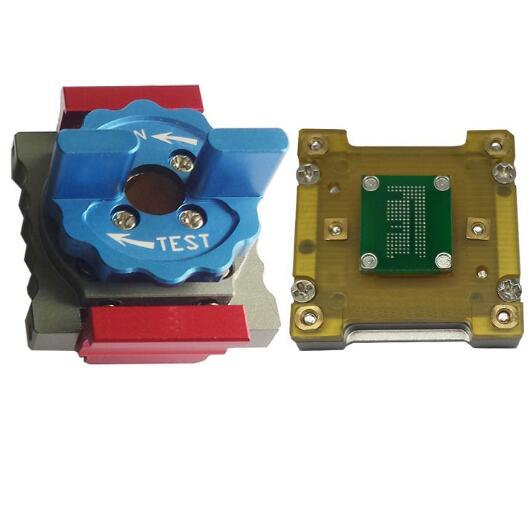

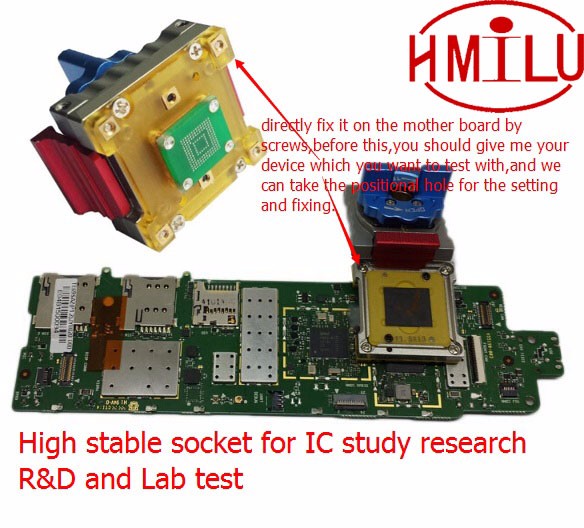

  5.Special PCB adapter for soldering.
•
  6.Simple and quick fixing.
•
  7.Layout of the test socket is LxWxH 34.55mmx28.8mmx30.3mm
•
  8.Rating current: 0.5A.
