BGA132 BGA152 Burn in Socket BGA Adapter
BGA132 BGA152 Burn in Socket BGA Adapter IC Test Socket For BGA88 BGA136 Flash Testing Programmer Adapter Open Frame Structure

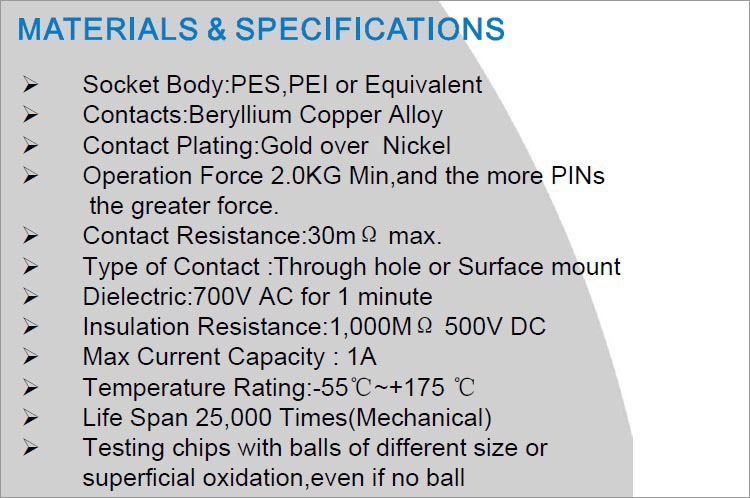

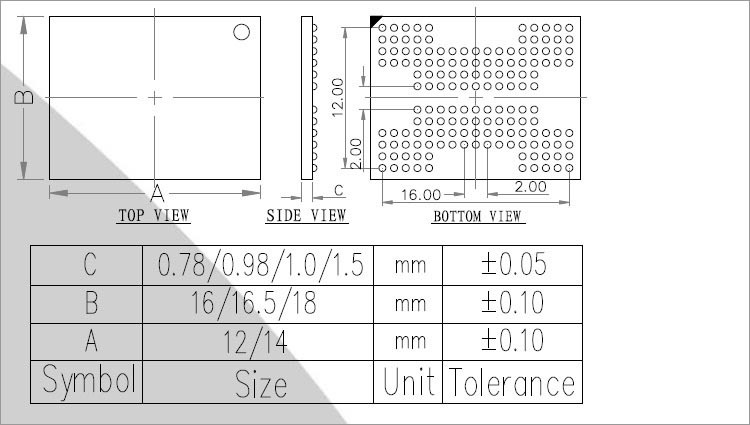

Product Specification and Dimension :
| Type | BGA 152/132-1.0 |
| Pin Pitch | 1.0mm |
| Pin Count | 88 |
| Applicable IC body width | 12*18mm / 14*18mm |

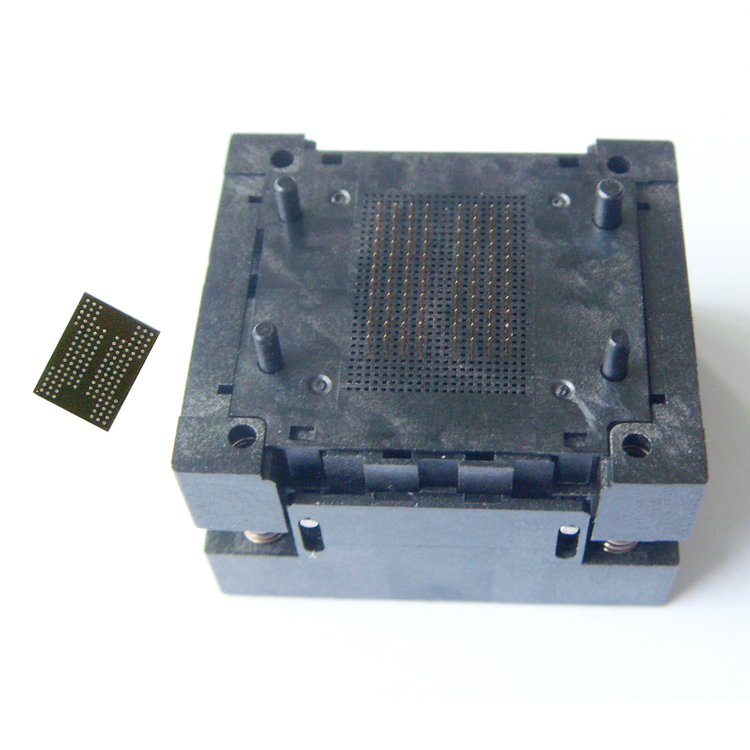

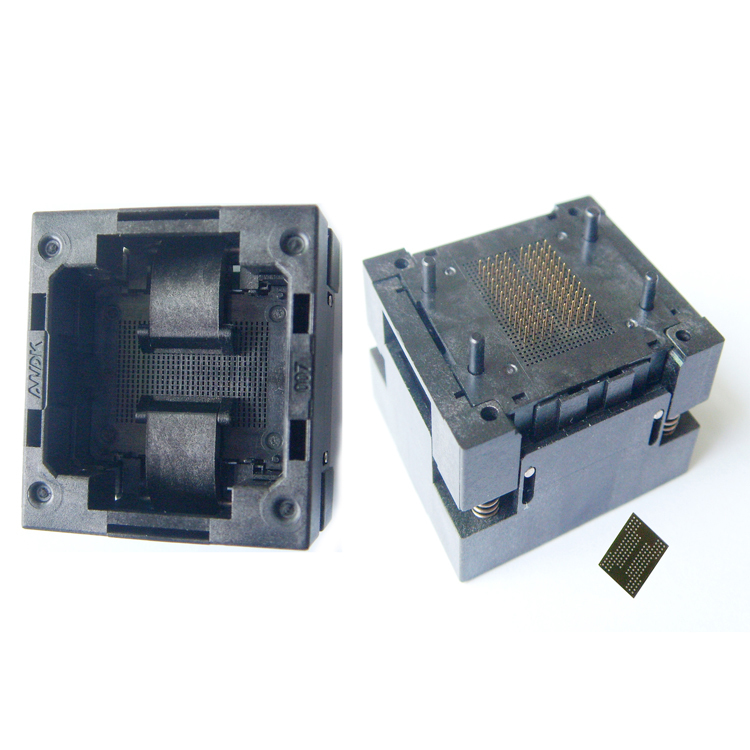

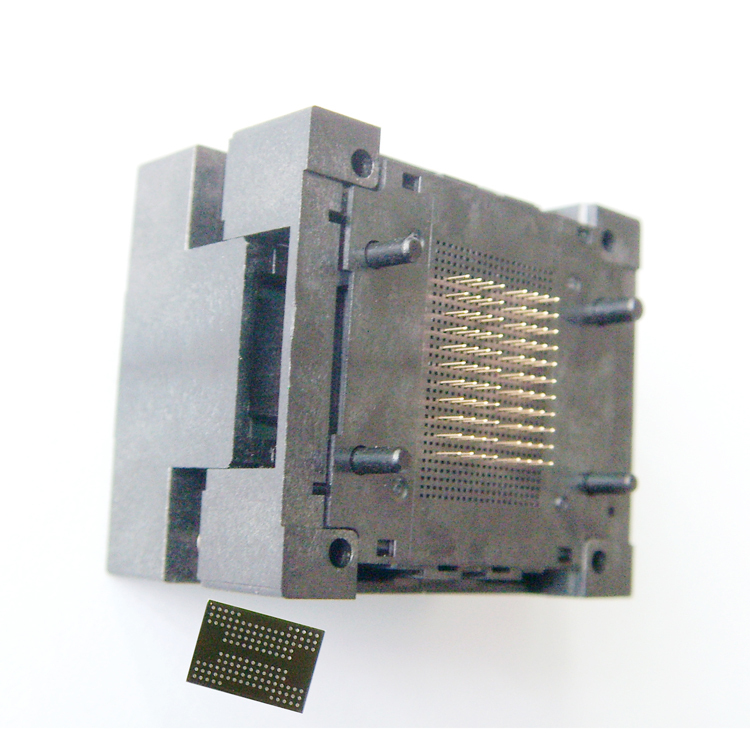

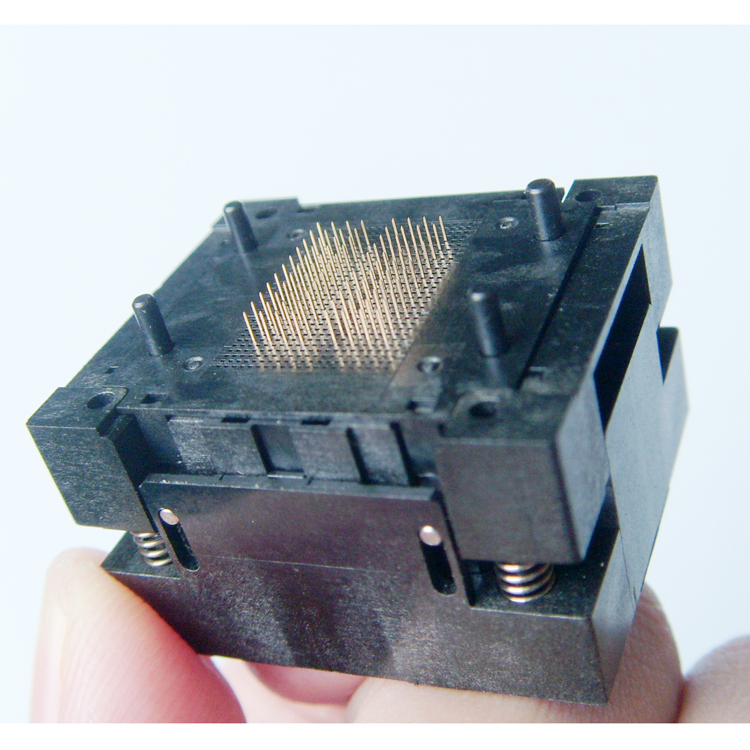

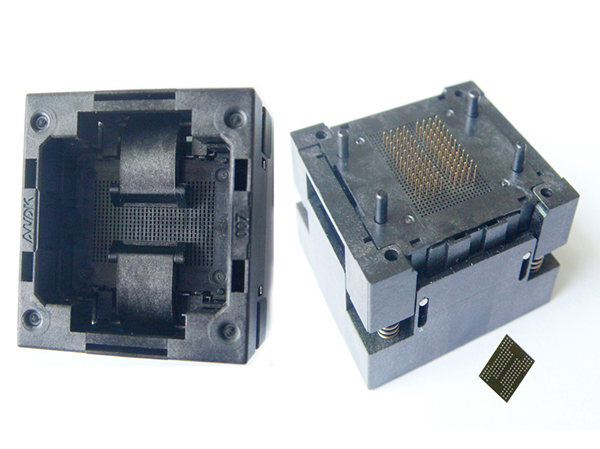

Product image
