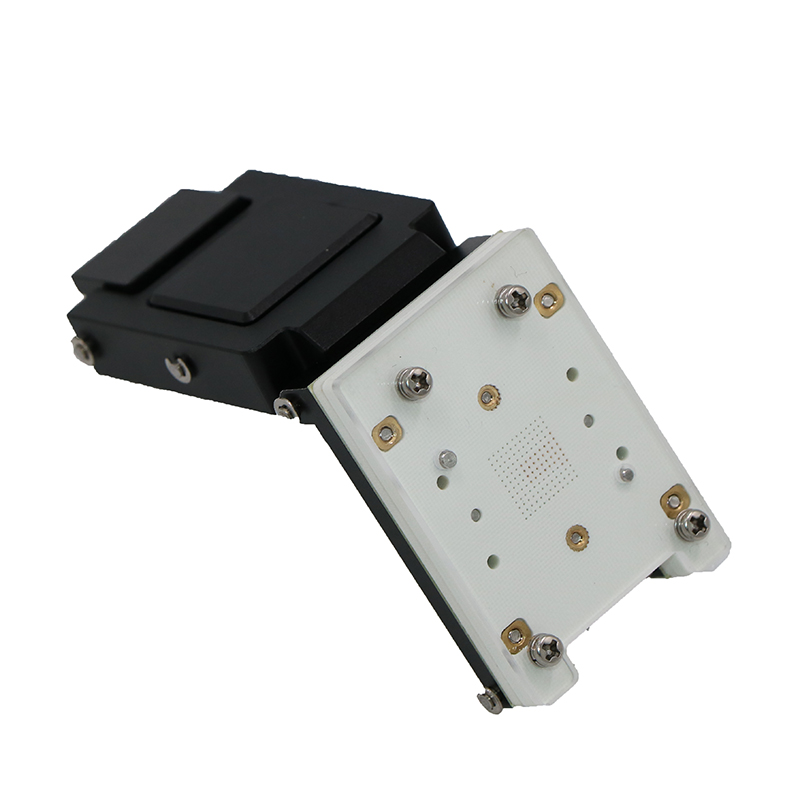

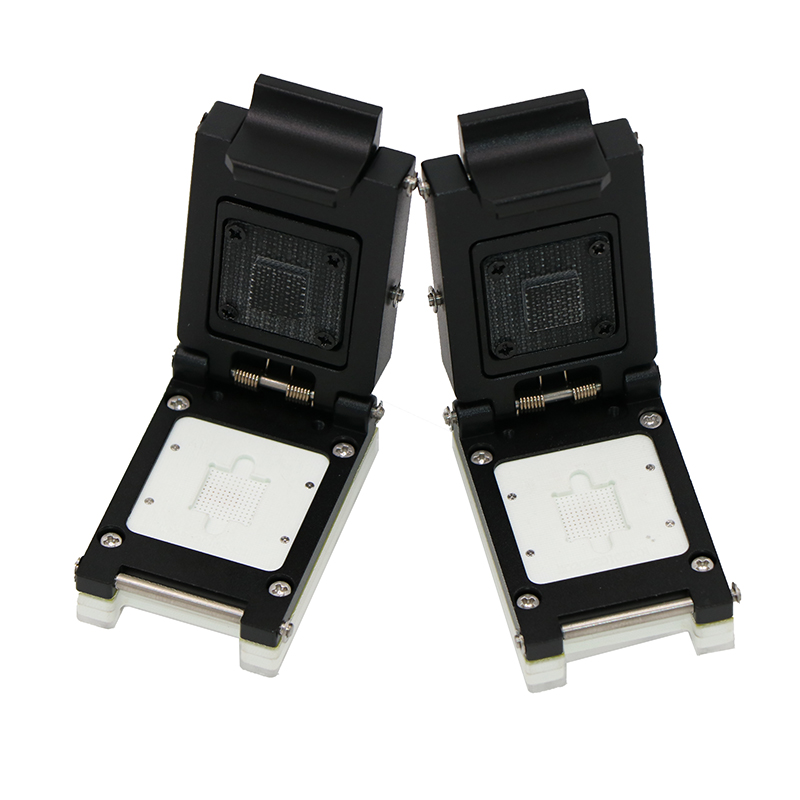

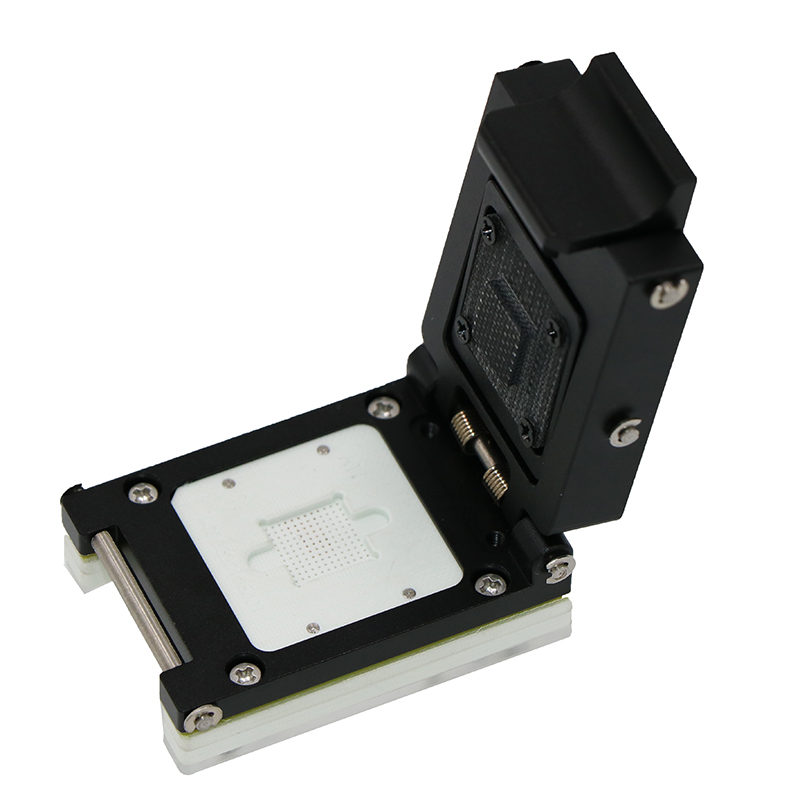

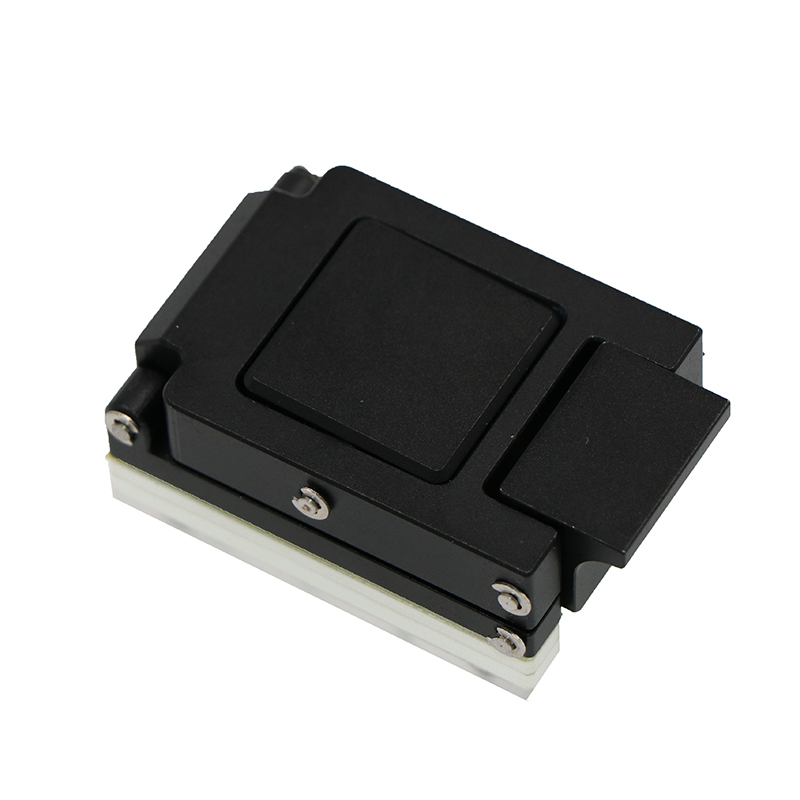

BGA144 (35) 0.75_9×9 burn in test socket for function test
BGA144 (35) 0.75_9×9 burn in test socket for function test

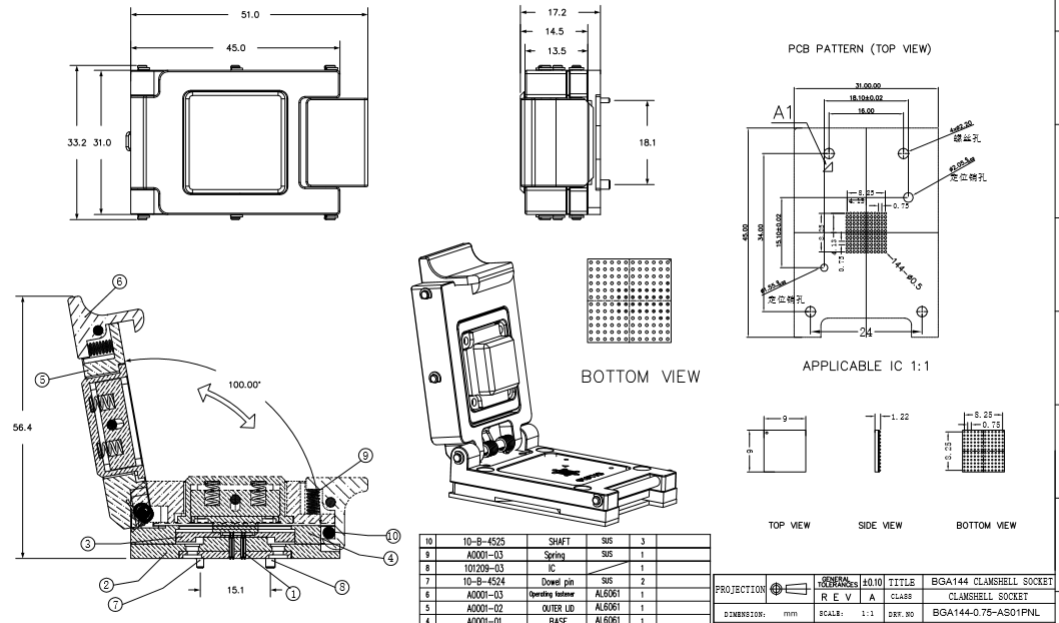

SPECIFICATION AND DIMENSION
| Type | BGA144 (35) 0.75_9×9 burn in test socket |
| Package | BGA |
| Pin Pitch | 0.75 mm |
| Pin Count | 144 pins set 35pins |
| Applicable IC body size | Special |
| Product description | customized socket |
PRODUCT IMAGE
