BGA997 socket with 1.0 pin pitch for burn in test HAST HTOL
BGA997 socket with 1.0 pin pitch for burn in test HAST HTOL
PRODUCT FEATURES
-
1.100% brand new , high Quality and duarable -
2.Tested before shipping -
3.Easy to use -
4.Technical support and datasheet are available if you need -
5.we are the original manufacturer and welcome anyone to be our distribution agents -
6.Professional manufacturer in all kinds of IC chip testing sockets and adapters -
More Quantities with LOWER PRICE! -
More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

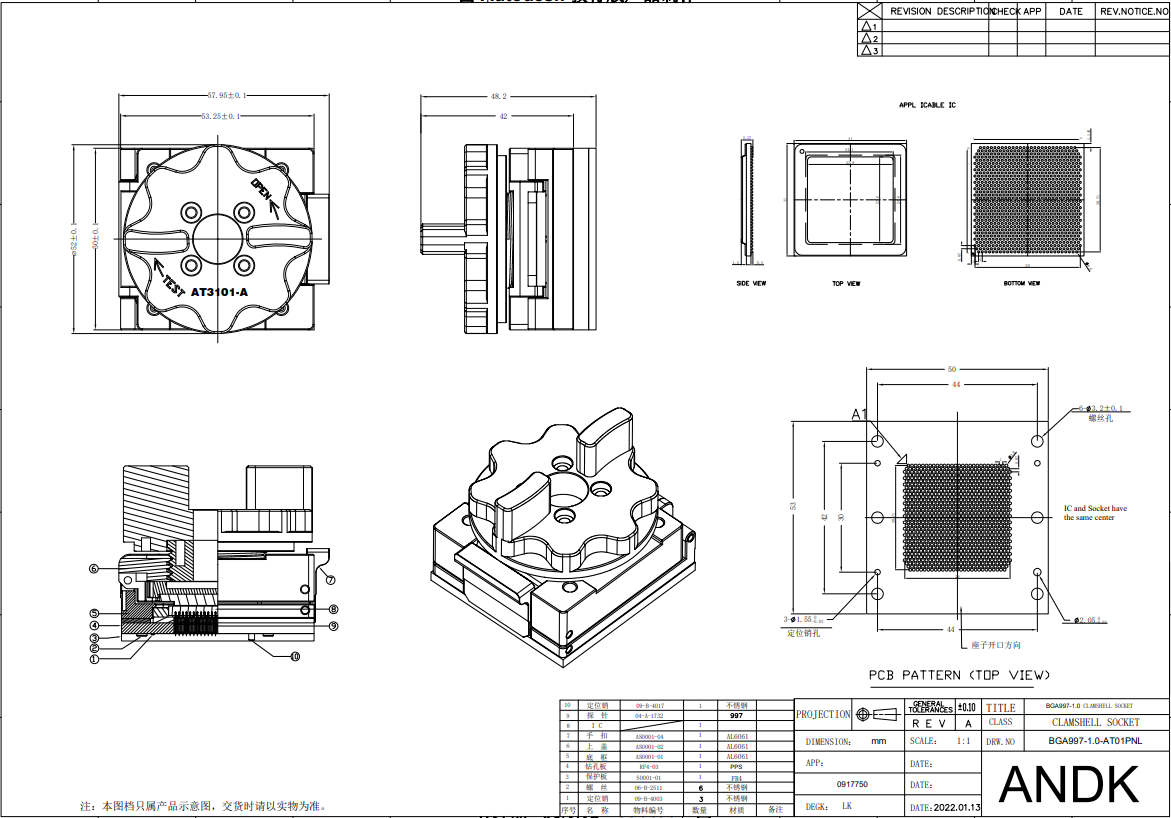

SPECIFICATION AND DIMENSION
| Type | Test & Burn in Socket ( without pcb ) |
| Package | BGA997 |
| Pin Pitch | 1.0 mm |
| Pin Count | 997 pins |
| Applicable IC body size | 31x31mm |
| Product description |
|

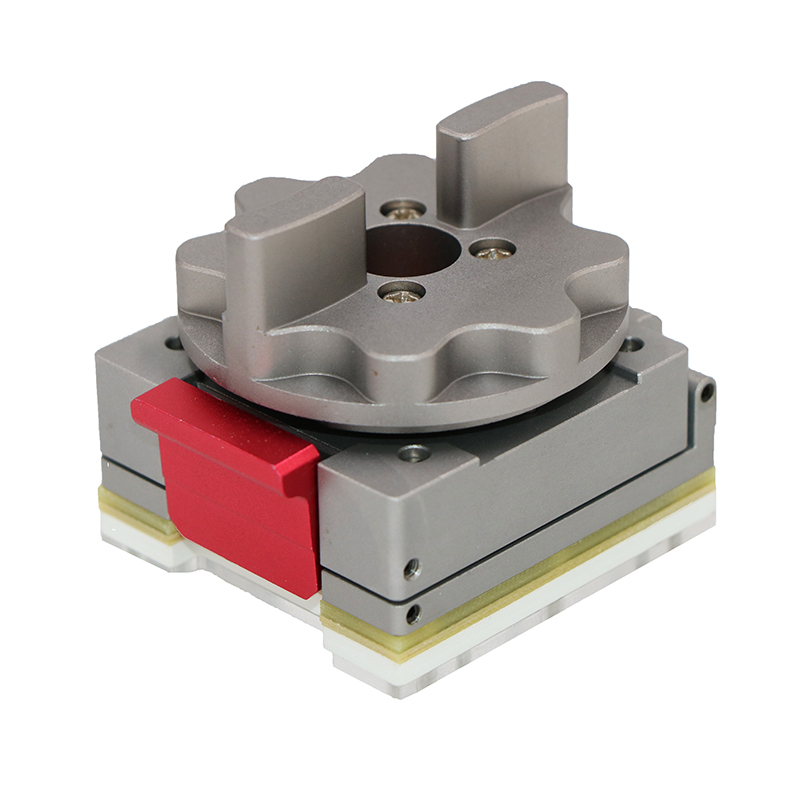

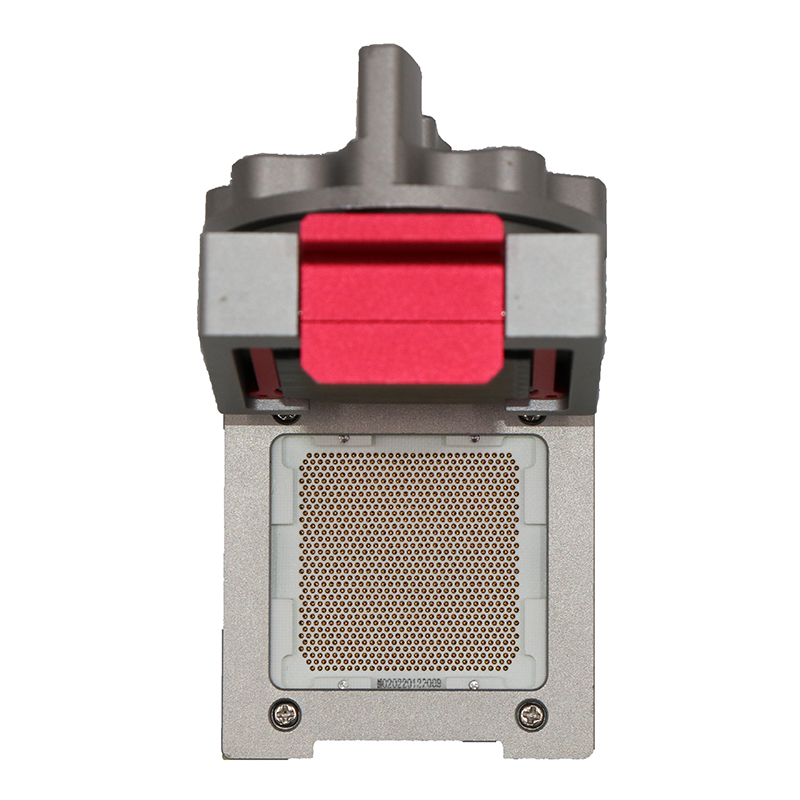

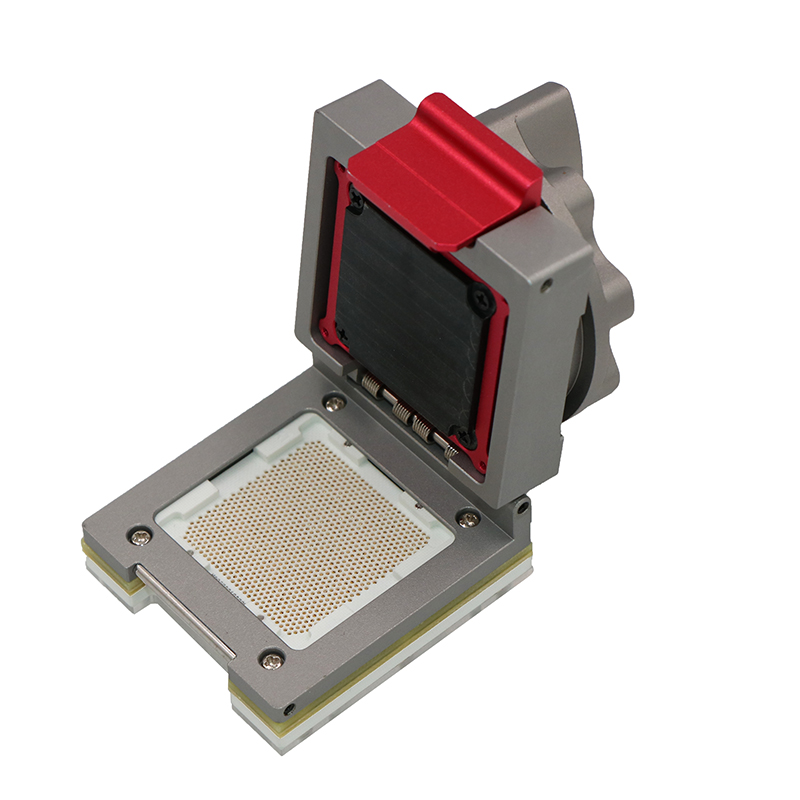

PRODUCT IMAGE
