Crystal oscillator socket for 6pin crystal size 2.1X1.7mm

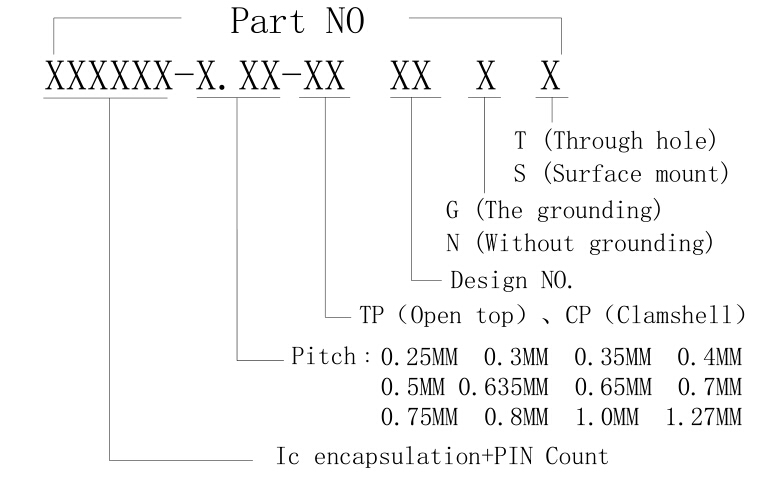

Crystal oscillator socket for 6pin crystal size 2.1X1.7mm thickness 0.7mm XO CXP06-000-CP/TP21NT crystal test burn-in socket
Product features:
-
Structure:Open Top/ Clamshell -
Adopting engineering material for socket structure,strength is high,lifetime is longt -
Adopting Imported BeCu material for socket contact spring,thickening gold-plating surface,impedance is small,elasticity is good.
HongYi & KZT socket have different socket size tooling for a variety of different electronic devices Oscillators, X-tal, SAW filters, Capacitors, MEMS, Sensors and other Semiconductor devices

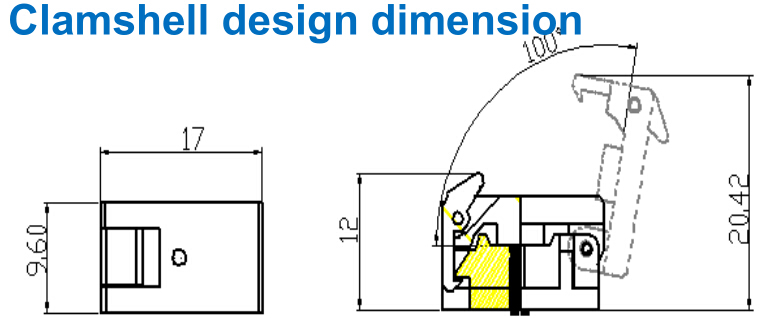

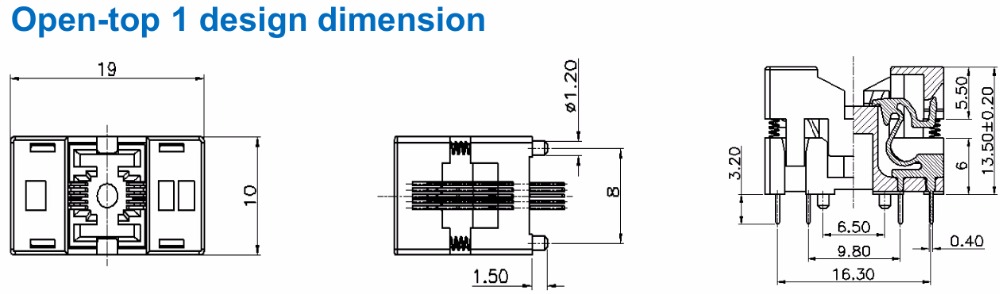

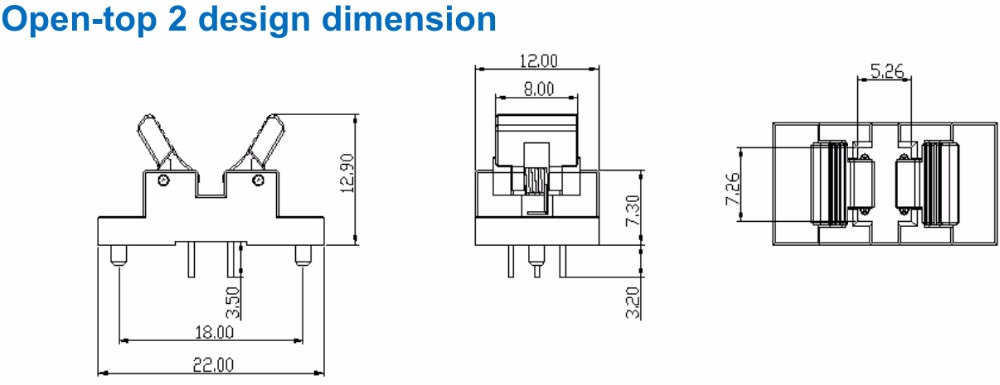

Specification and Dimension
| socket Body: | PEI |
| Contacts: | Beryllium Copper Alloy |
| Contact Plating: | Gold over Nickel |
| Operation Force: | 0.5KG min, the more PINs the greater force. |
| Contact Resistance: | 50mΩ max |
| Dielectric: | 700V AC for 1 minute |
| Insulation Resistance: | 1,000MΩ500V DC |
| Max Current Capacity : | 2A |
| Temperature Rating: | -55℃~+175 ℃ |
| Open-top: | 15,000 Times (Mechanical) |
| Clamshell: | 200,000 Times (Mechanical) |

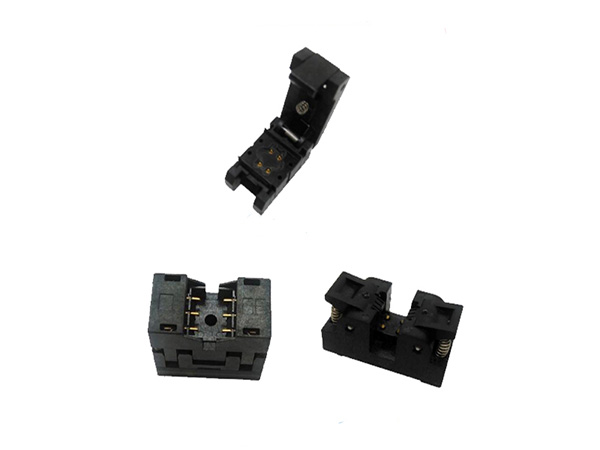

Product image
