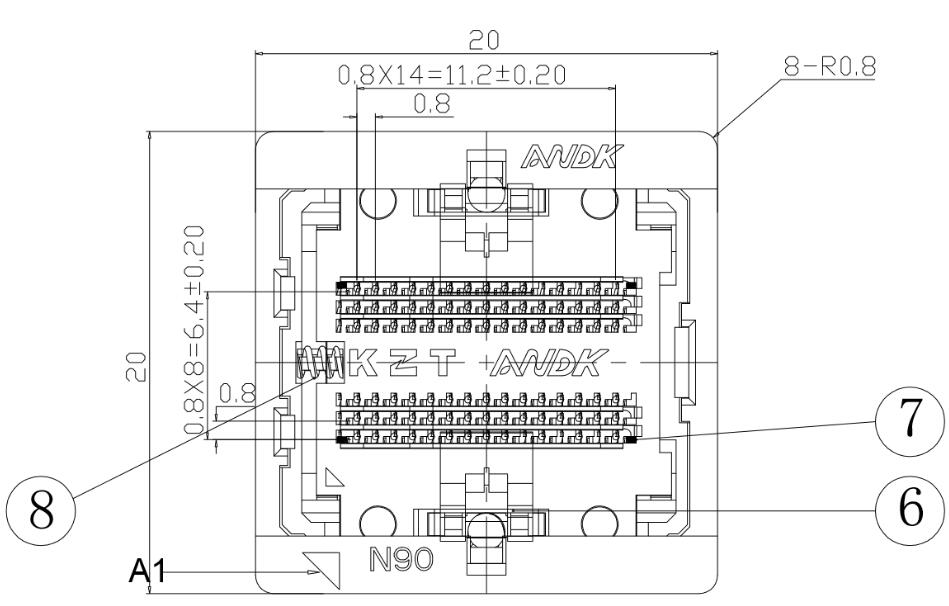

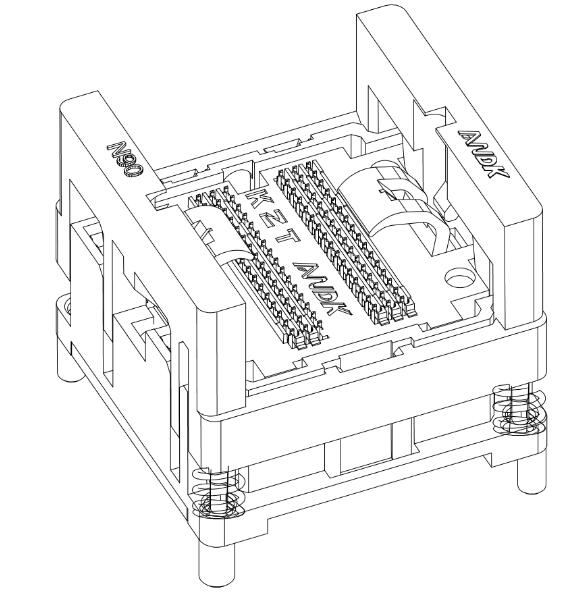

DDR3-0.8 96pin Burn in socket Ball Pin Pitch 0.8mm DDR DIMM DRAM
Product description:
DDR3-0.8 96pin Burn in socket Ball Pin Pitch 0.8mm DDR DIMM DRAM for DDR manufacturer t...
DDR3-0.8 96pin Burn in socket Ball Pin Pitch 0.8mm DDR DIMM DRAM for DDR manufacturer testing DDR NAND chips
Specification :
a) DDR3-0.8 96pin Burn in socket
b) working temperature:-55~175℃
c) Apply to Memory Chip of Sumsung , Hynix , Winbond , Micron etc
d) Socket material :PEI
e) Rated current : 1A
f) Contact resistance : 30m oh MAX.at 10mA and 20mV MAX(Start)
g) Test lifetime : 15000 times
Please leave us a message which size / datasheet of your chip , so we can send the proper socket , thanks a lot !
We're the original manufaturer , we can provide the lowest and competitive price , the shortest processing time is guaranteed ! ! !
