EMCP162 BGA186 Socket/adapter
eMCP162 BGA186 Socket/adapter with clamshell programming adapter USB HDD flash memory mobile tablet data recovery socket
Product introduction
-
Product use:EMCP, test block, the IC chip test, read and write Test method 1 select and IC match the limit frame, the IC according to the direction of the flat into the SOCKET 2 USB wire inserted into the computer USB interface, open the power switch of the element, select the appropriate test procedures
characteristic
-
1.at the same time compatible with 162-FBGA 186-FBGA -
2. shrapnel adopts import beryllium copper formed by high precision stamping dies, head shape imitation probe design, the late addition of hard, thick gold plating layer processing, so as to ensure product reliability and durability -
3. support hot plug and a power switch is individually, supported by USB interface or through the connection with the plate on the gill corresponding pin is connected to test -
4. the floating plate structure, positioning precision, take the IC convenient, more efficient work -
5. test board welding on the transit board, test seat without welding, on the plug in the adapter board can be changed easily.
Specification and Dimension
| Applicable package | EMCP 162/186 Pin spacing 0.5mm |
| Test seat | EMCP 162/186-0.5 |
| Service life | 100 thousand times |
| Model | EMCP 162/186 test block adapter |
| Pin spacing (mm) | 0.5 |
| Pin PIN number | 17 |
| Chip size | 12*18 14*18 11.5*13 12*16 |

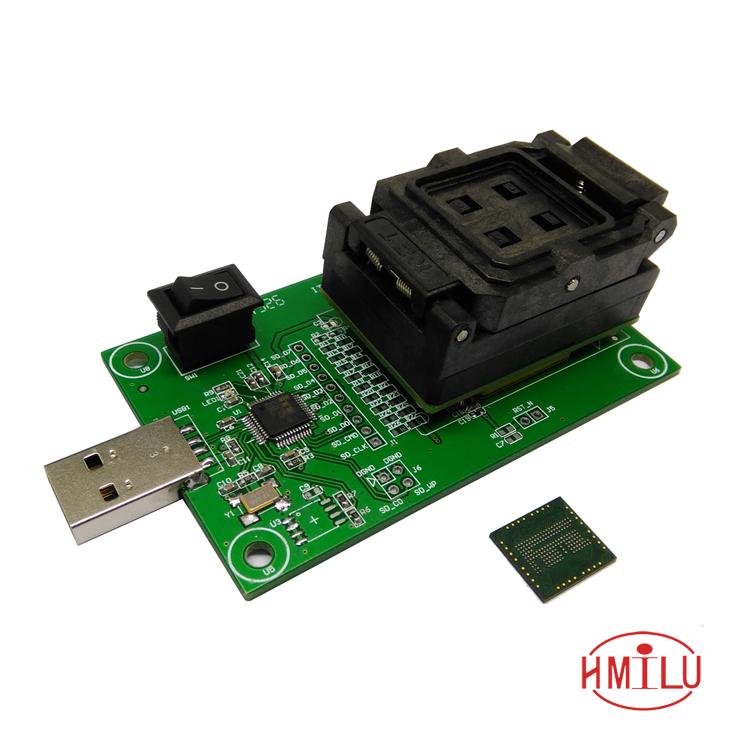

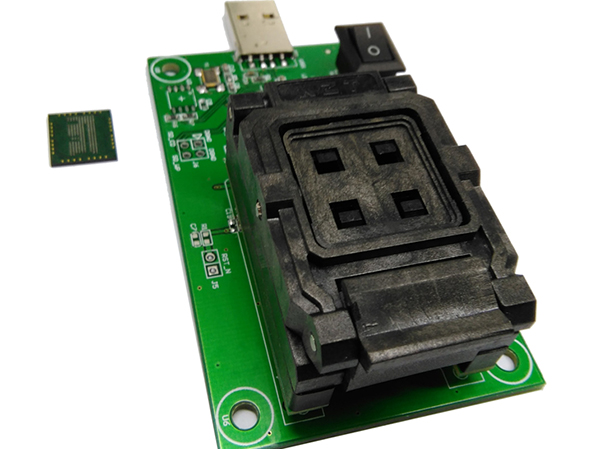

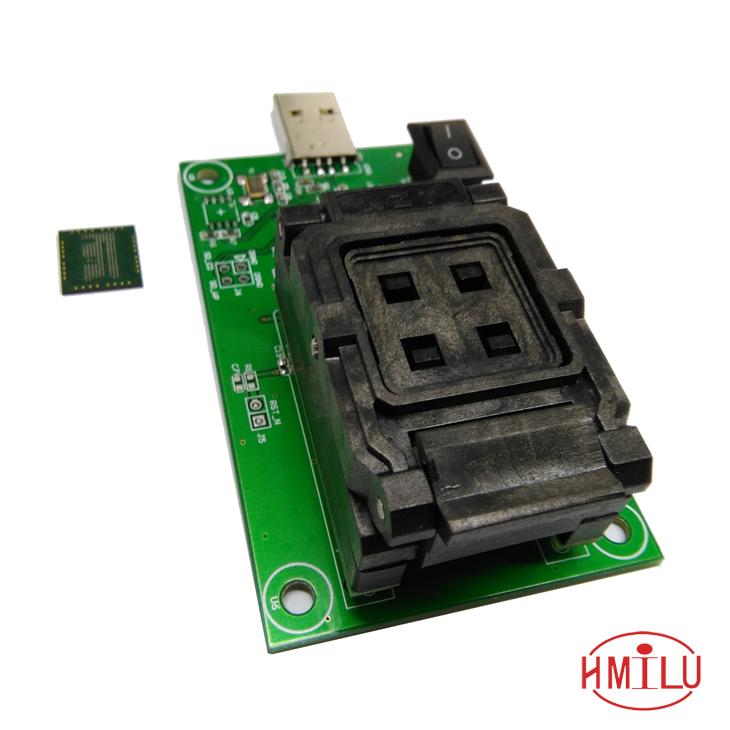

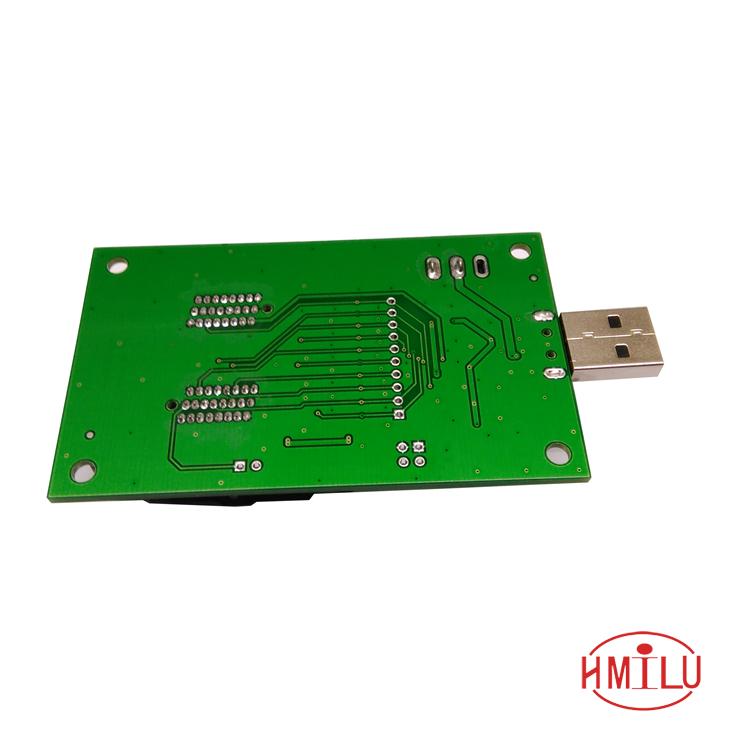

Product image
