eMCP221 Test Socket with SD
eMCP221 Test Socket with SD interface Pogo Pin Nand flash reader For BGA 221,Apply to eMCP size 11.5x13mm Pitch 0.5mm Adapter
Product Features
-
1.aluminium alloy socket with Pogo Pin. -
2.Apply to Samsung,Sandis k,Toshiba,Hynix,Micron,MTK,Intel, etc--eMCP -
3. Apply to BGA221. -
4. Accurate positioning on flat bottom pad and solder of eMCP. -
5.Long operating life,up to 30,000 times. -
6. Apply to eMCP thickness:0.8--1.5mm. -
7. Could reading and writing the data of eMCP with it. -

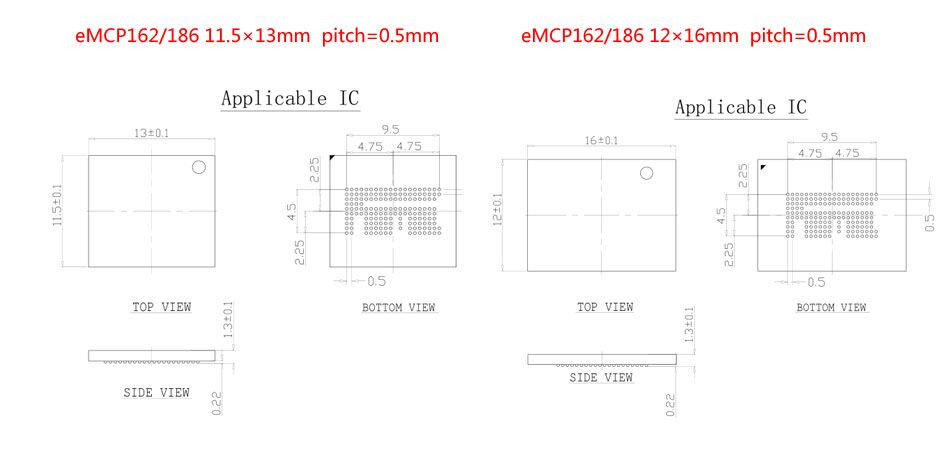

8. eMCP size : 11.5X13mm,pitch:0.5mm. -
9. Easy to operate,insert with the SD card reader into your PC, then could read. -
10. Support flat bottom and solder ball testing.

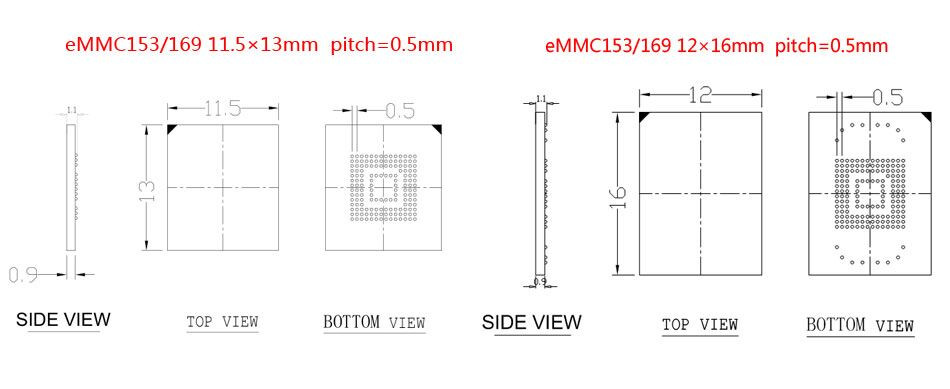

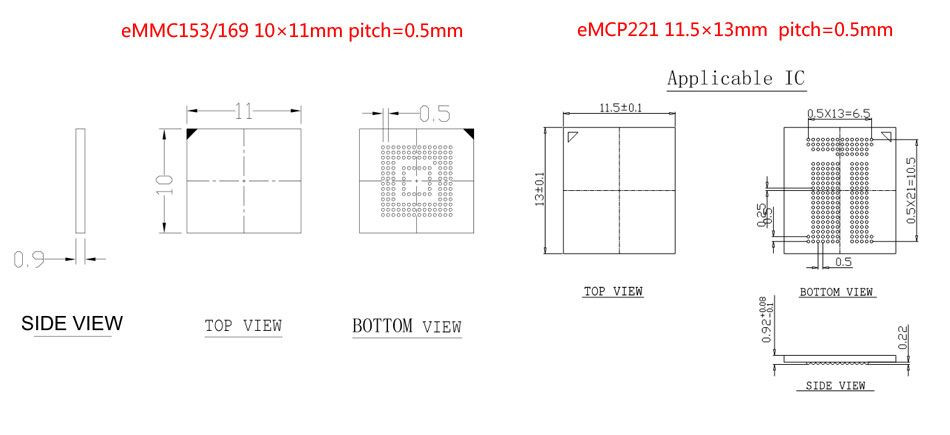

Product Specification and Dimension :
| Type | eMCP 221 Socket |
| Interface | SD |
| Pin Pitch | 0.5mm |
| Applicable Chip Size | 11.5x13 mm |

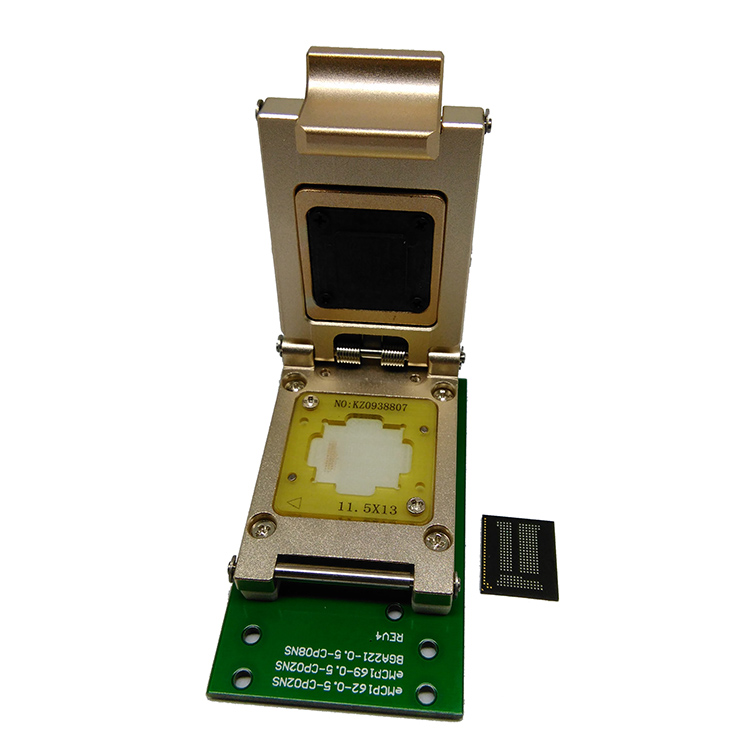

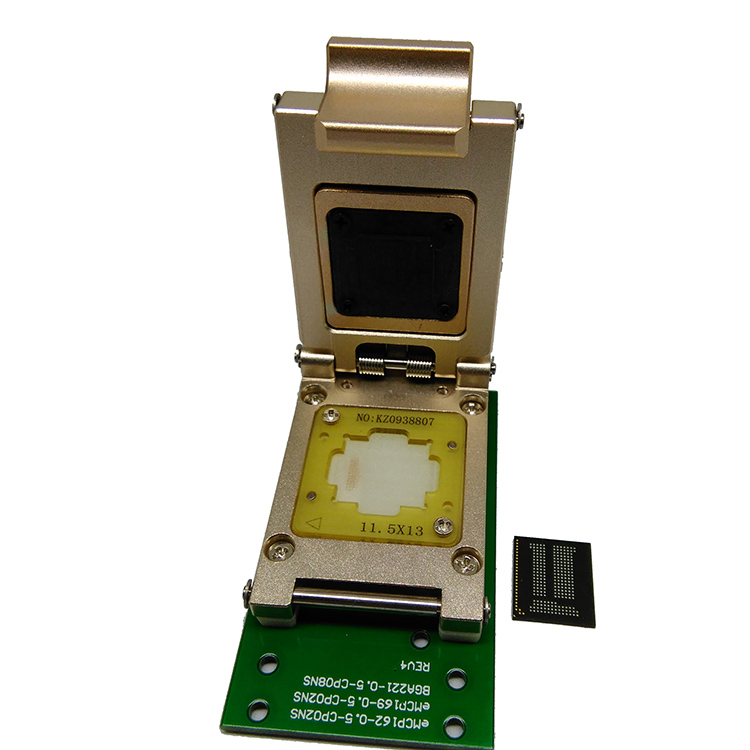

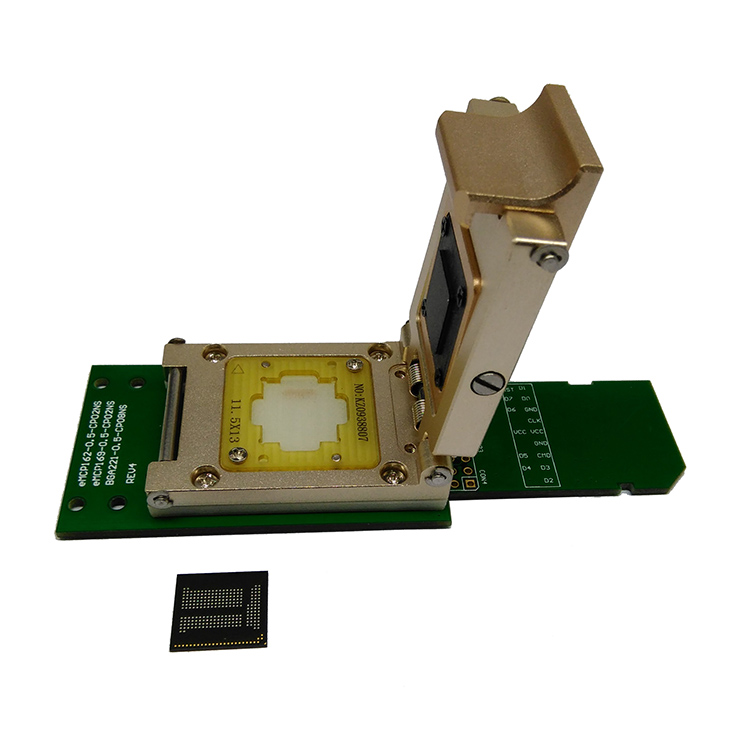

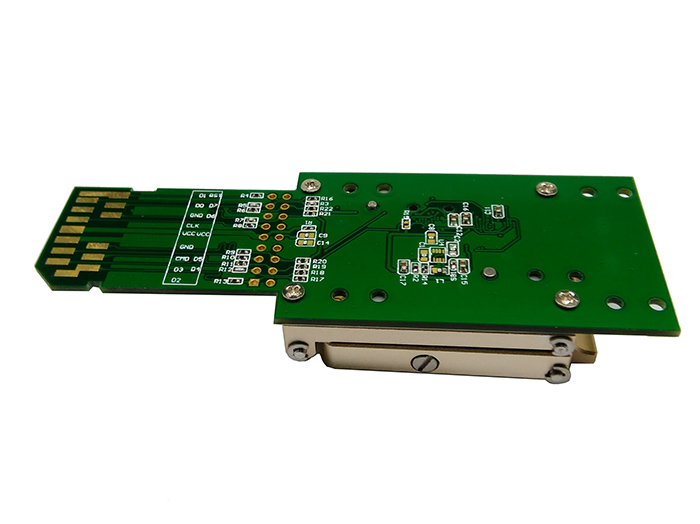

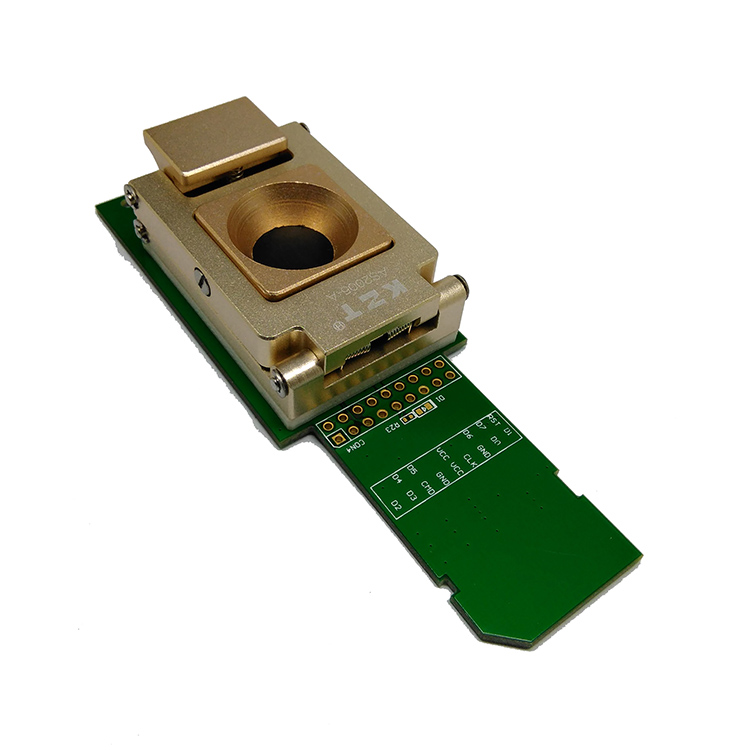

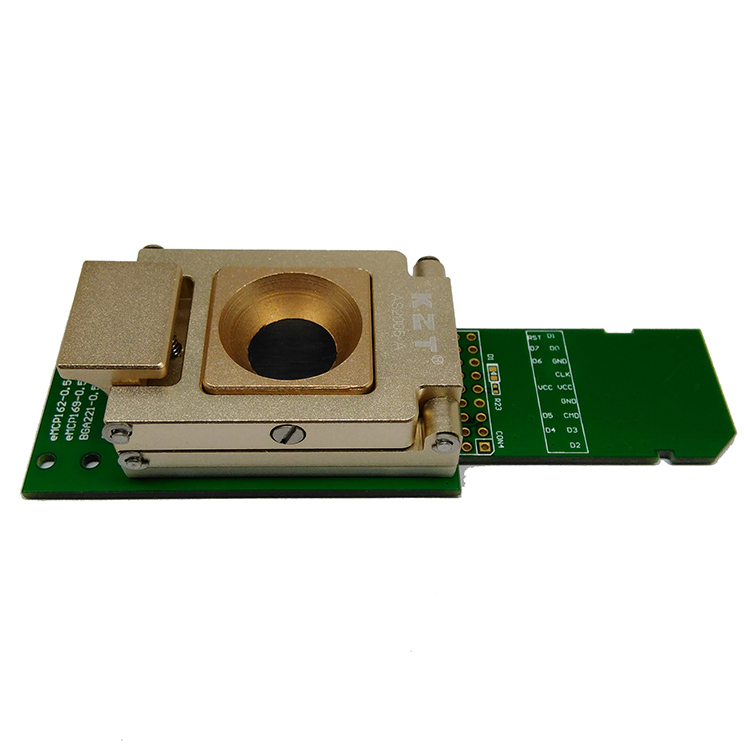

Product image
