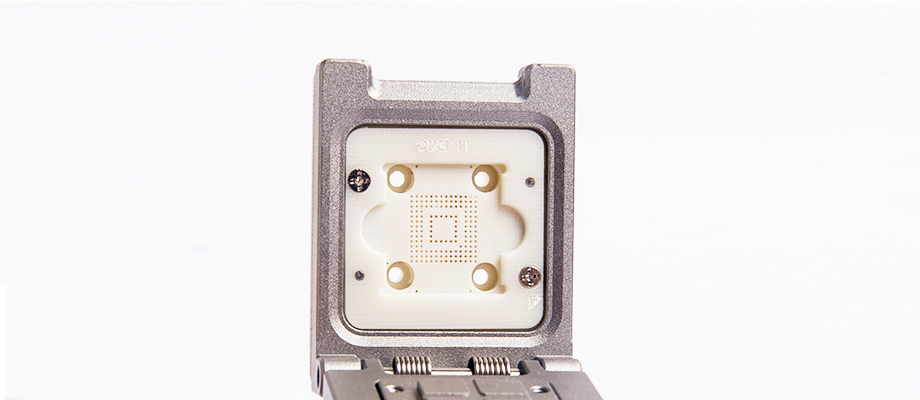

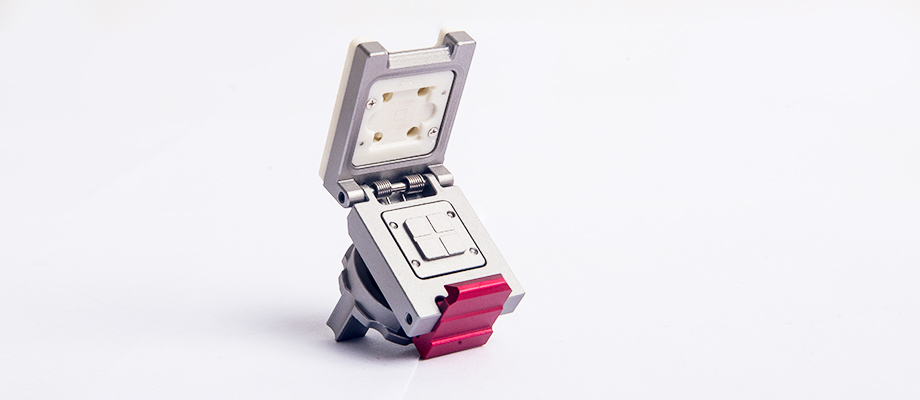

eMMC153-169 socket

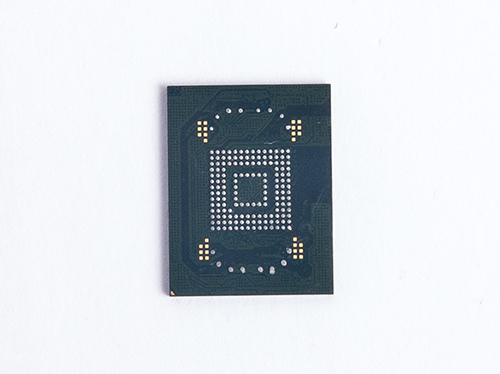

eMMC153/169 customized IC function test socket for eMMC153/169 NAND flash test
parameter
| Application IC | eMMC153/169 |
| IC size | 9*11mm 10*11mm 11.5*13mm 12*16mm 12*18mm 14*18mm |
| Socket structure | Clamshell |
| Contact pin | Pogo pin |
| Service life | 100000 times |
| Material | PEI/alloy |
PRODUCT FEATURES
-
-
Small spacing
minimum pitch of 0.2mm
-
-
test accuracy
The test is accurate and the error rate is 0.001 %
-
-
High temperature
high temperature: 175 ℃, low temperature: -55 ℃
-
-
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands
Product image
