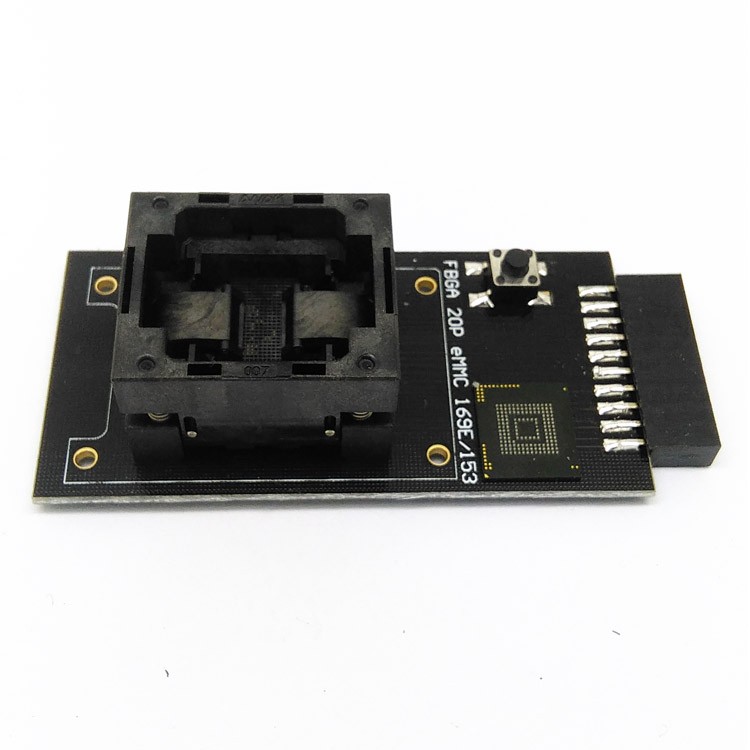

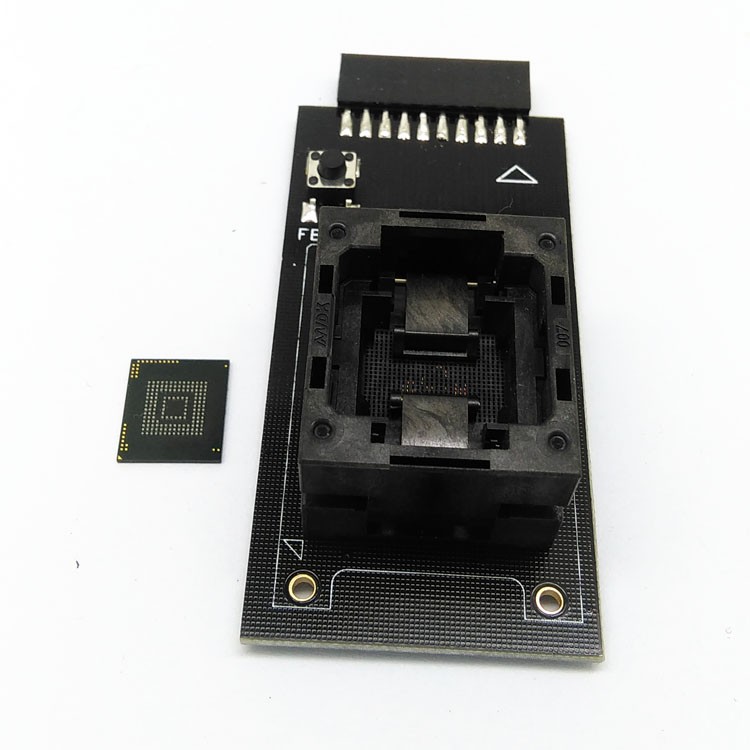

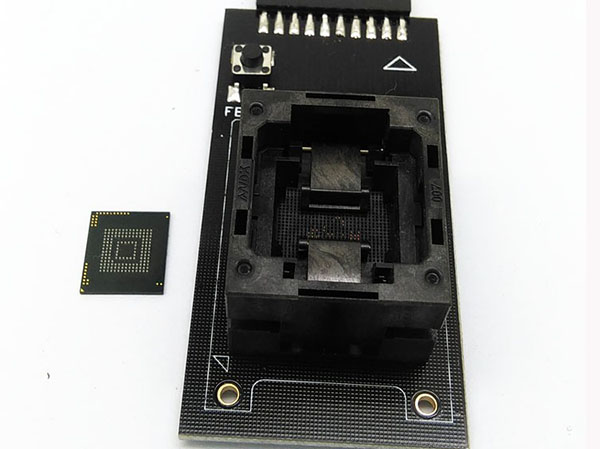

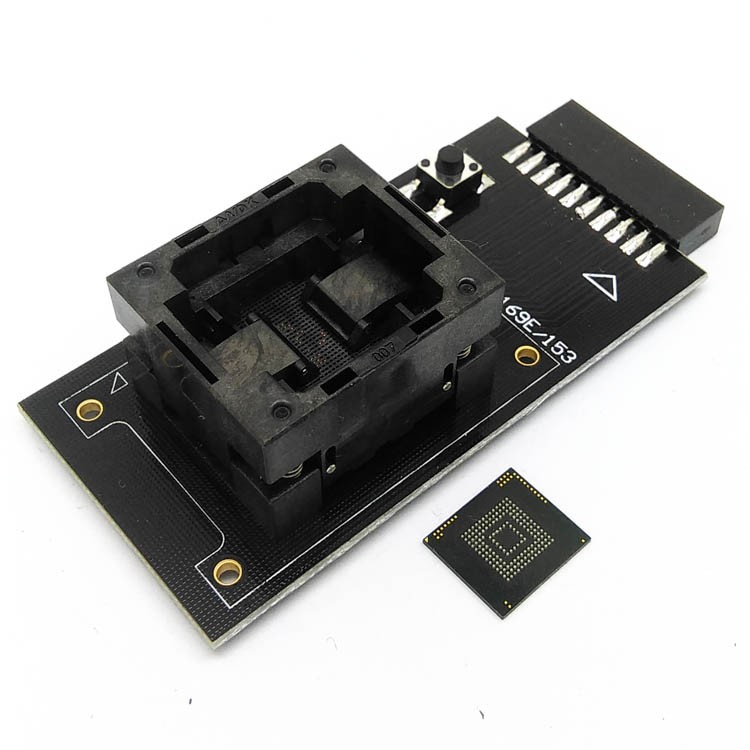

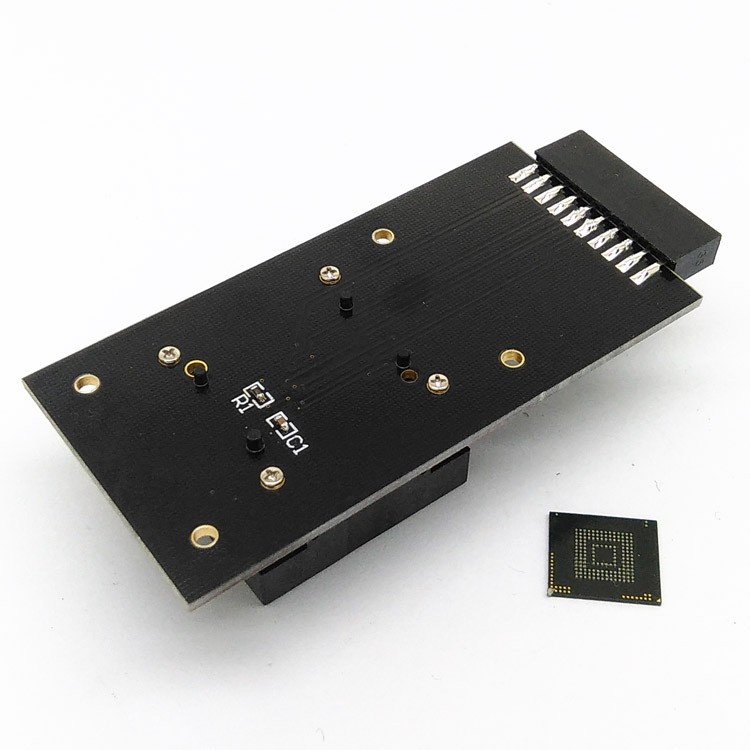

eMMC153/169 to 20pin universal port
eMMC test Socket to 20pin universal port for nand flash testing for BGA 169 and BGA 153 reader for data recovery
Product Specifications:
-
1.Apply to eMMC of Samsung, Sandisk, Toshiba, Hynix, Micron, HTC and Intel. -
2.Apply to BGA153 and BGA169. -

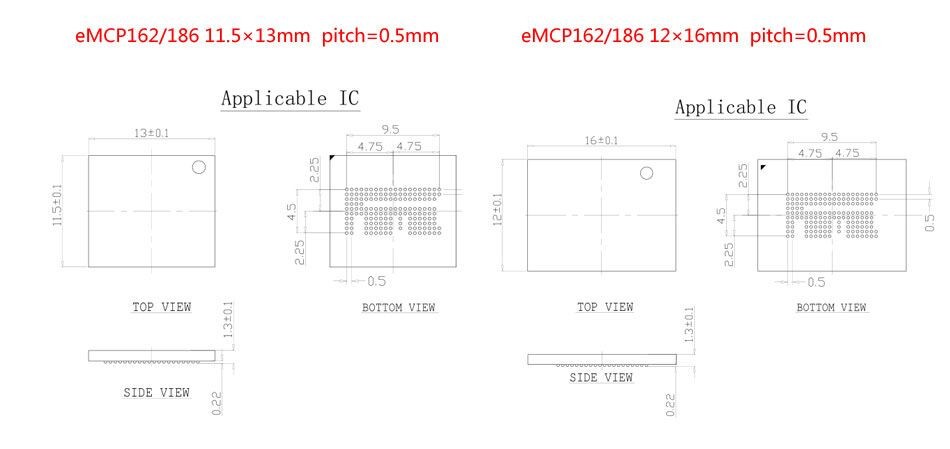

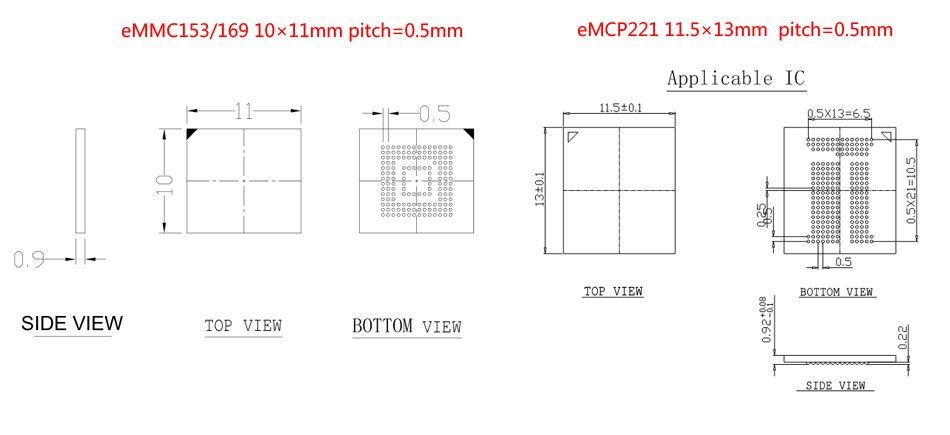

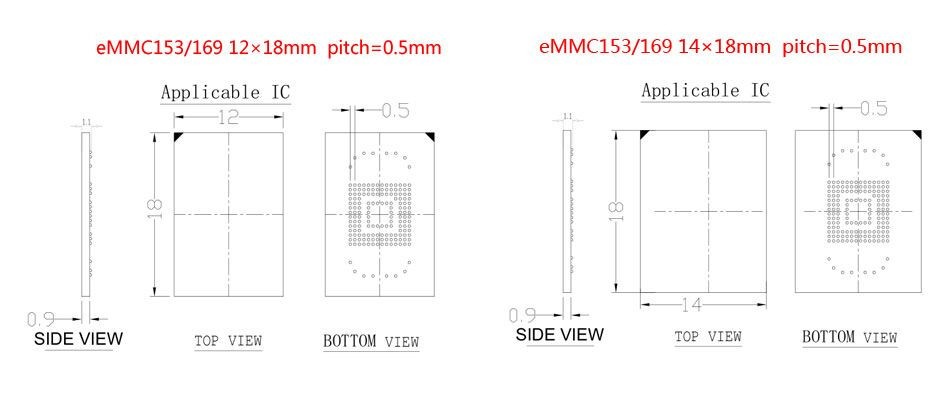

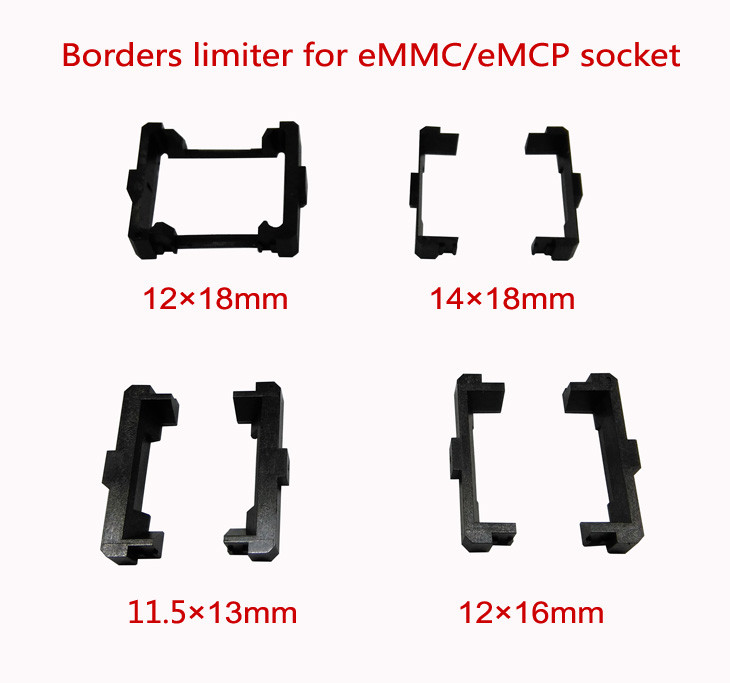

3. We provide size 11.5x13mm , 12x18mm , 12x16mm , 14x18mm. -
4. With 20 pins and pin pitch 0.5mm. -
5.Life cycle is around 25000 times. -
6. ceMMC data can be easily read and re-written. -
7. Test can be done with or without solder ball. -
8. Easy positioning and operation.
Product Suitable IC （PART）:
-
1.THGBM1G6D4EBA14（Toshiba,TOSHIBA，16x18x0.95mm, pitch=0.5mm） -
2.SDIN4C2-4G(SanDisk, 16x12x0.85mm, pitch=0.5mm) -
IC number: -
SDIN4C1-4G 4Gx 8 FBGA169 16x12x0.85mm -
SDIN4C1-8G 8Gx 8 FBGA169 16x12x0.85mm -
SDIN4C2-8G 8Gx 8 FBGA169 16x12x0.85mm -
SDIN3C2-2G 2Gx 8 FBGA169 16x12x0.85mm -
SDIN3C2-4G 4Gx 8 FBGA169 16x12x0.85mm -
SDIN3C2-8G 8Gx 8 FBGA169 16x12x0.85mm -
3.KLM2G1DEDD-A101（SAMSUNG，16x12x0.85mm, pitch=0.5mm） -
Density Part number Org PKG PKG size MMC ver Status -
1GB KMAFG0000A-S998 x8 153FBGA 11.5x13 MMC4.2 MP -
2GB KLM2G1DEFD-A301 x8 169FBGA 12x16 MMC4.3 MP -
4GB KLM4G2DEFD-A301 x8 169FBGA 12x16 MMC4.3 MP -
4GB KLM4G1DEHM-B101 x8 169FBGA 14x18 MMC4.3 CS -
8GB KLM8G4DEFD-A301 x8 169FBGA 12x16 MMC4.3 MP -
8GB KLM8G2DEHM-B101 x8 169FBGA 14x18 MMC4.3 CS -
16GB KLMAG8DEFD-A301 x8 169FBGA 12x16 MMC4.3 MP -
16GB KLMAG4EEHM-B101 x8 169FBGA 14x18 MMC4.3 CS -
32GB KLMBG8EEHM-B101 x8 169FBGA 14x18 MMC4.3 CS
Product image
