eMMC153/169 to SD interface HDMI
eMMC socket test flash chip eMMC153 socket eMMC169 BGA169 socket BGA153 Android phone flash data backup data recovery SD HDMI
Product Features
-
1.Apply to eMMC of Samsung, Sandis k, Toshiba, Hynix, Micron, HTC and Intel. -
2.Apply to BGA153 and BGA169. -

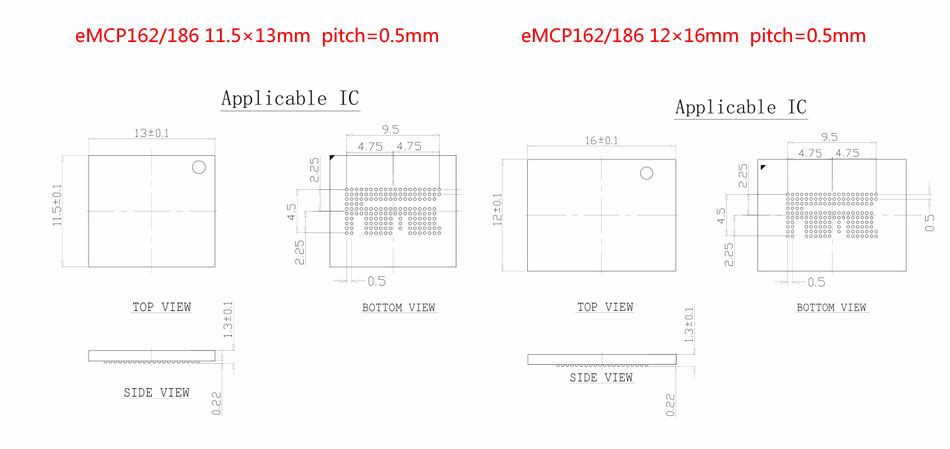

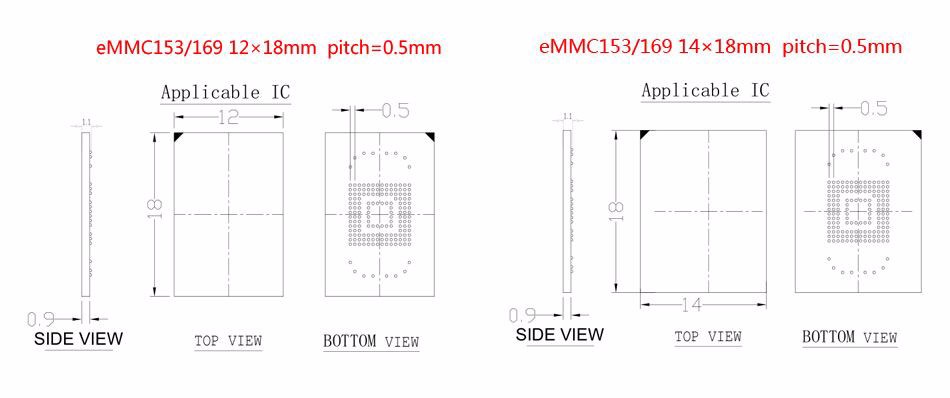

3. eMMC size of this product is 12x18mm , we also provide size 11.5x13mm , 12x16mm , 14x18mm , please see more products in our store . -
4. Apply to eMMC thickness of 0.8 to 1.5mm. -
5.With 30 pins and pin pitch 0.5mm. -
6. Life cycle is around 25000 times. -
7. eMMC data can be easily read and re-written. -
8. Test can be done with or without solder ball. -
9. Easy positioning and operation.

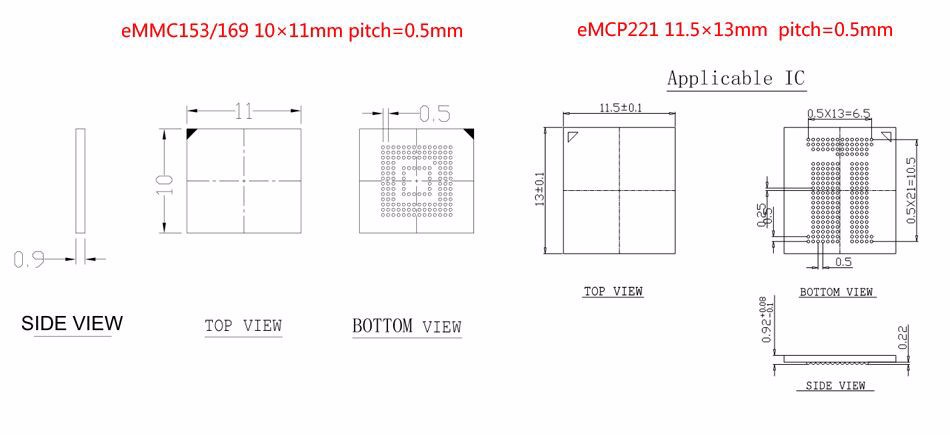

Product Specification and Dimension :
| Type | eMMC 153/169 to SD interface HDMI |
| Pin Pitch | 0.5mm |
| Pin | 30 |
| Structure | Clamshell |

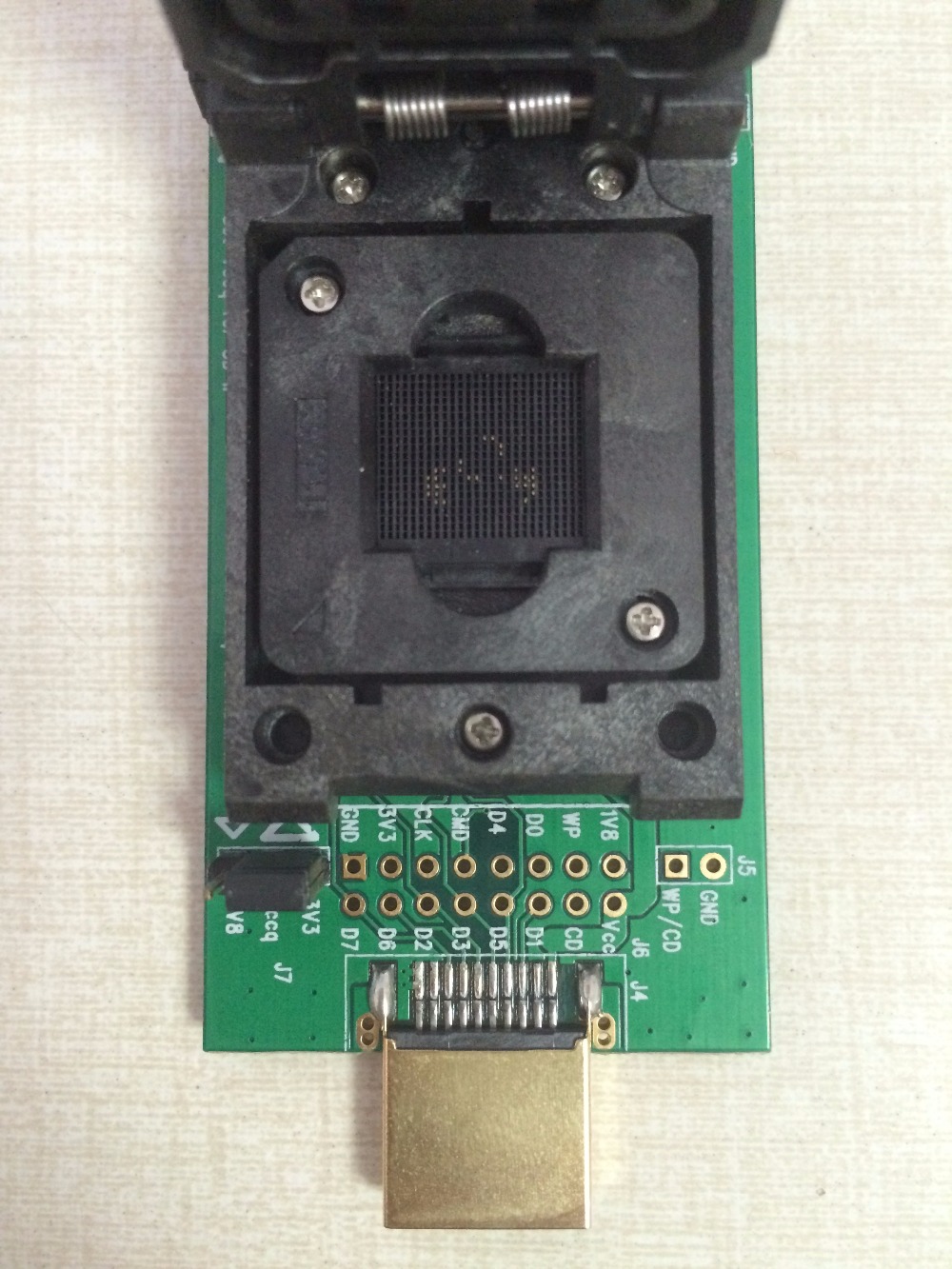

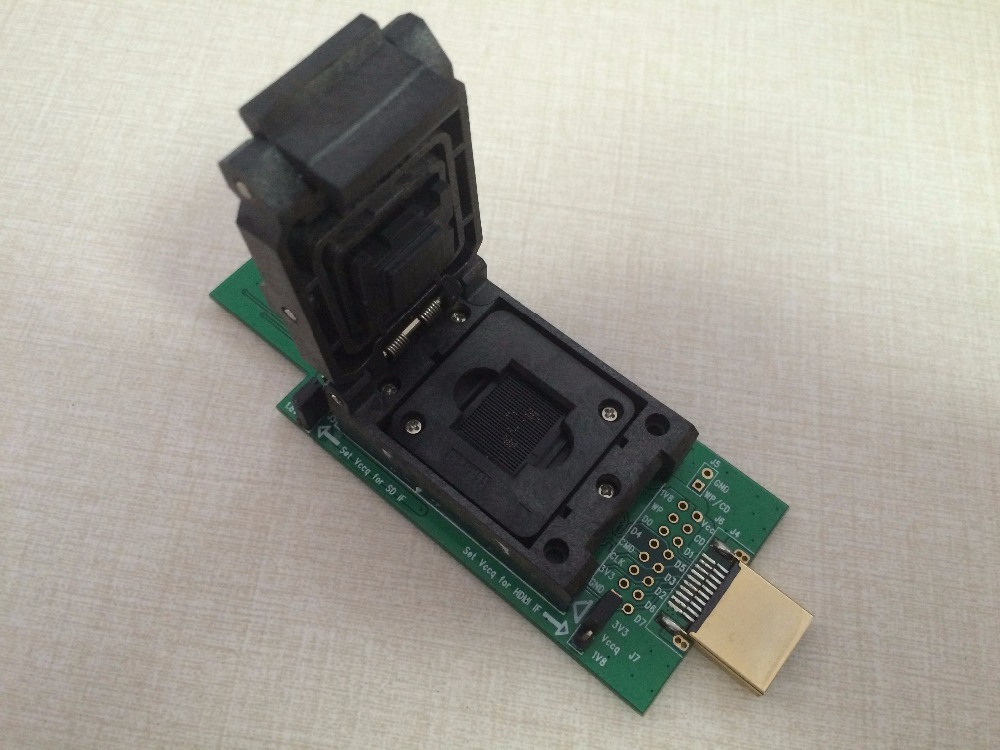

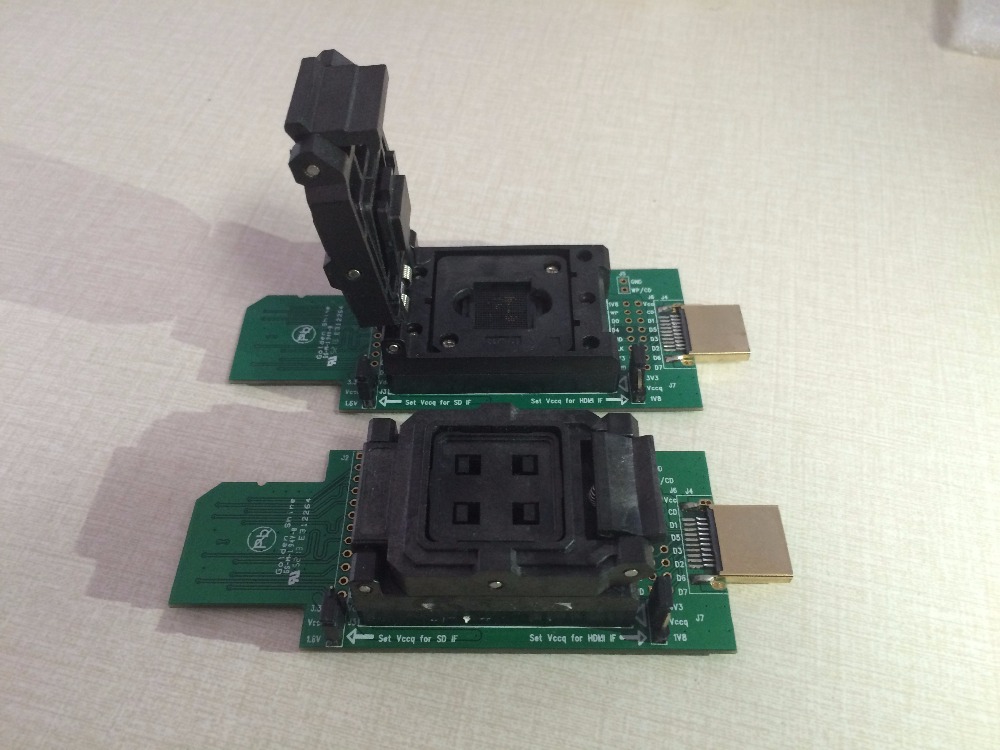

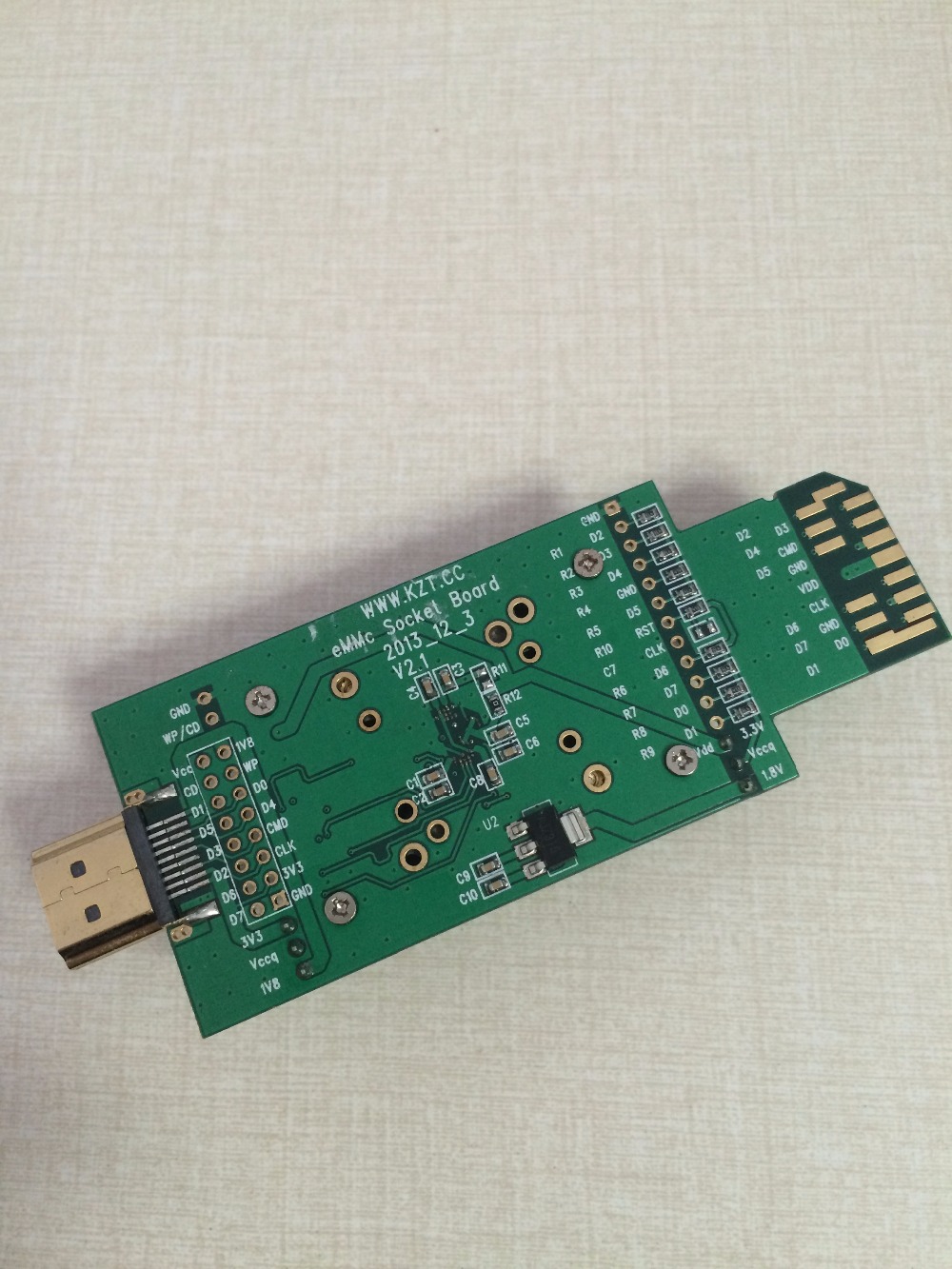

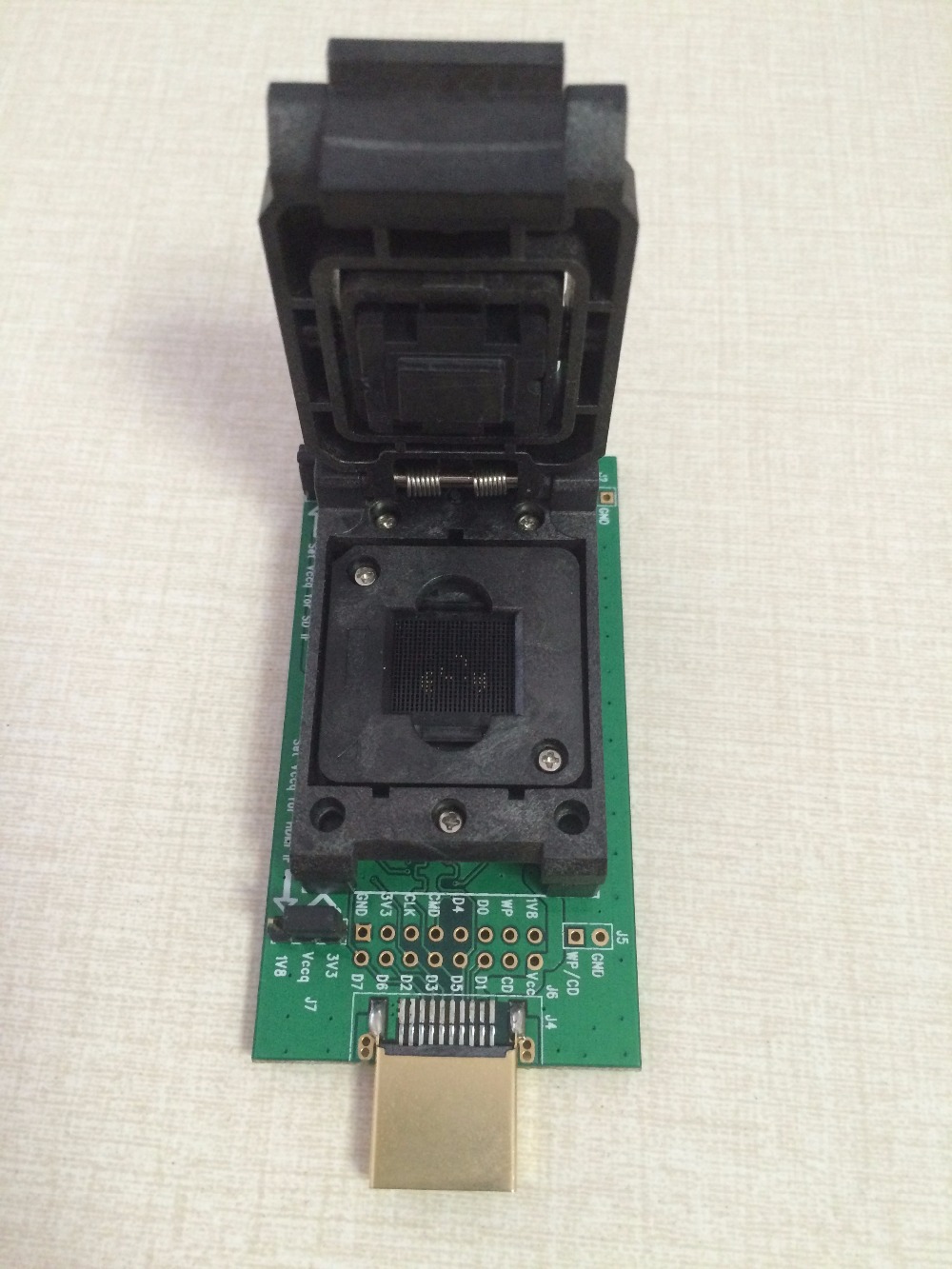

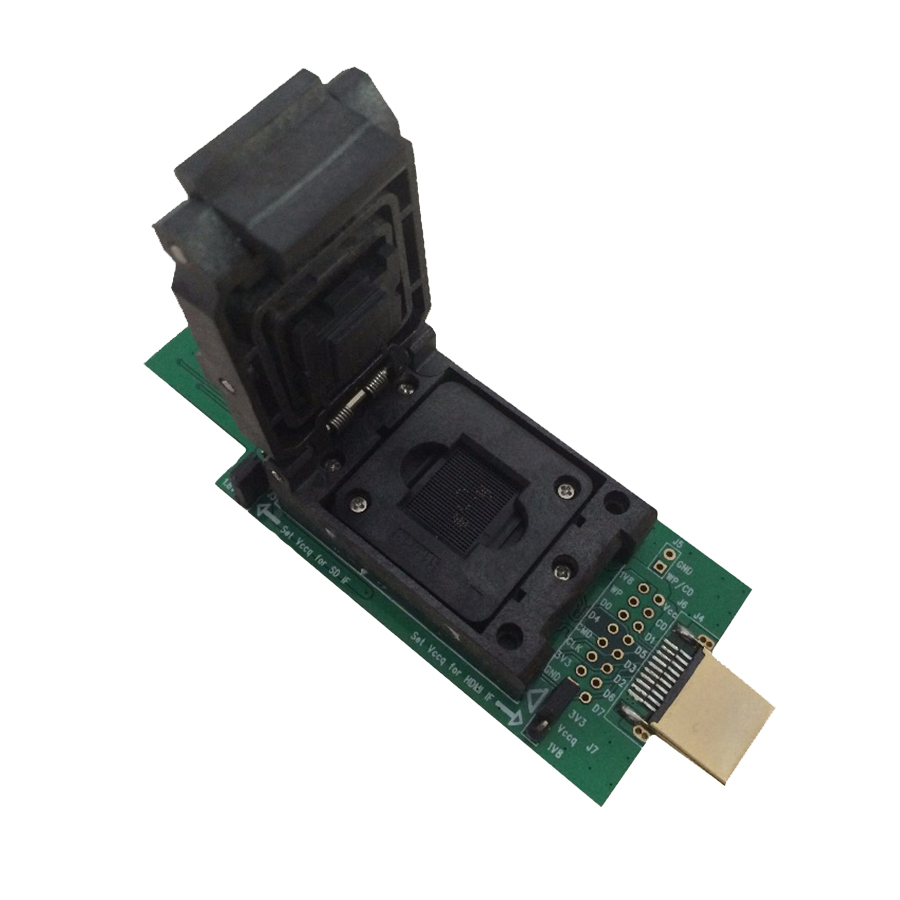

Product image
