MSOP8 To DIP8 programming socket
MSOP8 To DIP8 MCU Programmer Test Socket Pitch 0.65mm IC Body Width 3mm Programming Socket Adapter
Product features
-
1. 100% brand new , high Quality and duarable -
2. Tested before shipping -
3. Easy to use -
4.Technical support and datasheet are available if you need . -
5.we are the original manufacturer and welcome anyone to be our distribution agents -
6.Professional manufacturer in all kinds of IC chip testing sockets and adapters. -
7.More Quantities with LOWER PRICE!
More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .
Product Introduction
| Insulator | PEI, PPS |
| Shrapnel | beryllium copper |
| Thoery life | 15,000 times(Mechanical) |

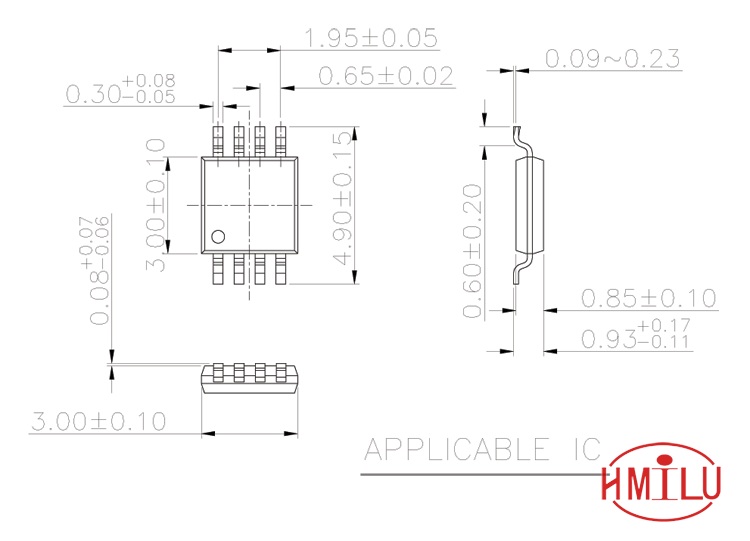

| Adapter chip specification | MSOP package, 8PIN, pin spacing 0.65mm, the width of 3mm chip body |
| Model | MSOP8-0.65 |
Specification and Dimension
| Type | Test & Programming Socket ( with pcb ) |
| Package | MSOP8 |
| Pin pitch | 0.65 mm |
| Pin Count | 8 pins |
| Applicable IC body width | 3mm |

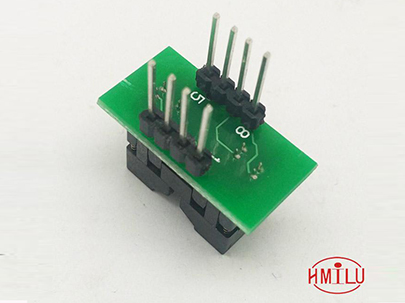

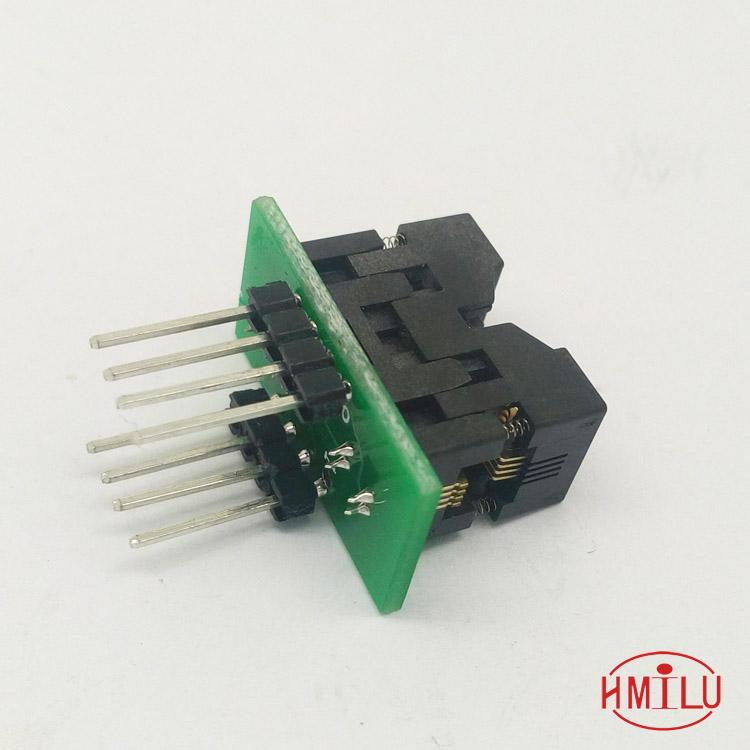

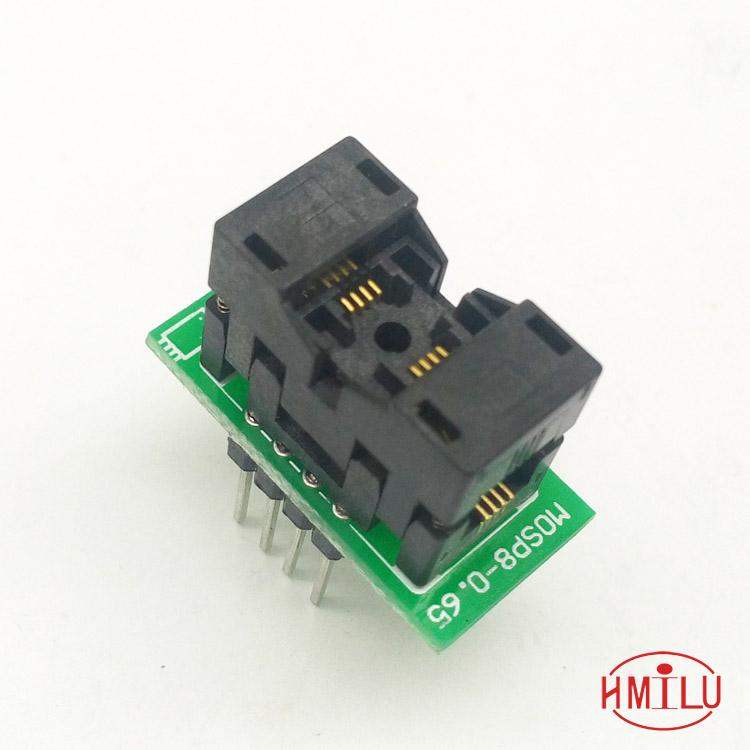

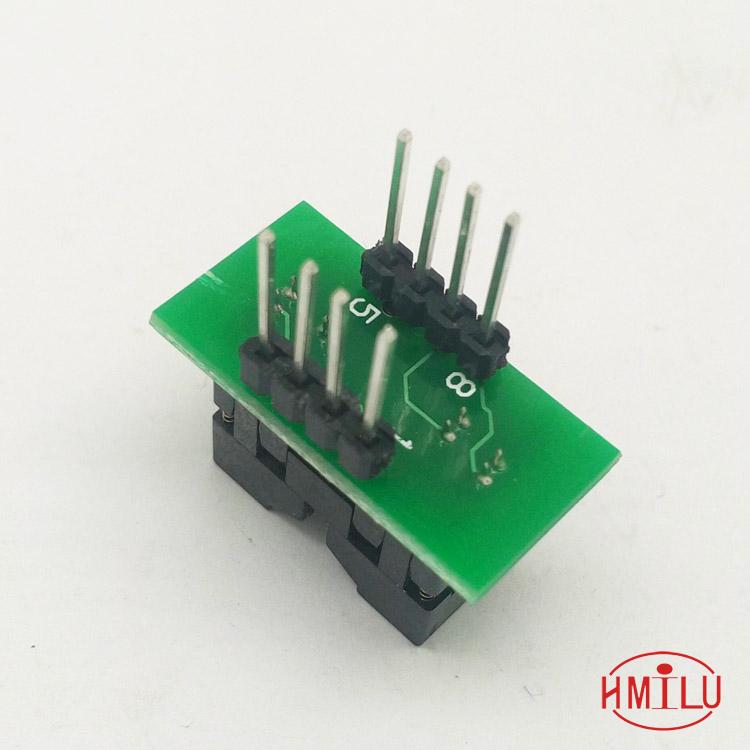

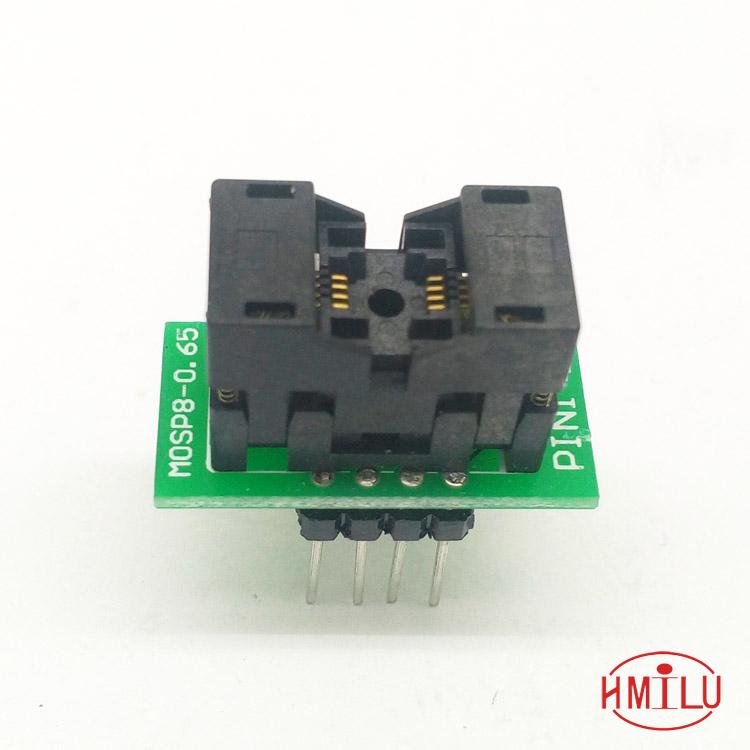

Product image
