New TSOP56 Opentop Programming Socket IC Test Socket
New TSOP56 Opentop Programming Socket IC Test Socket Flash Burn in Socket Adapter High Quality Eletronic for RT809H programmer
Product Feature :
-
1. Use double contact technology , contact more stable , -
2. The socket shell use special engineering plastic , high strength , long mechanical life , -
3. The shapnel use import beryllium copper , small impedance , good flexibility , -
4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
Product performance :
-
1. Material :
a) Insulator , PEI , PPS
b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)
-
2. Electrical Specification :
a) Insulation resistance : 1000m Min,At DC 500V
b) Voltage resistance : voltage resistance
c) Contact resistance : exceed 25m
d) PIN feet stretch : 55g/PIN(Normal)
e) Mechanical life : 100000Times
f) Operating temperature : Minus 65 degree to 55 degress
g) Operating force : exceed 0.9kg Max -
3. Specification :
a) Type : TSOP 56-0.5 programming socket
b) Pin pitch : 0.5 mm
c) Pin Count : 56
d) Chip Dimension : 14*18 mm
Specification and Dimension
| Type: | TSOP 56 Programming Socket |
| Pin: | 56 |
| Pin Pitch: | 0.5mm |
| Chip Dimension: | 14*18 mm |
| Product description: |
1. Use double contact technology , contact more stable , 2. The socket shell use special engineering plastic , high strength , long mechanical life , 3. The shapnel use import beryllium copper , small impedance , good flexibility , 4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability . |
( Note : Universal DIP socket is compatible with 7.6 - 15.2mm pin row distance , This TSOP56 socket DIP pin row distance is 30mm , can't plug in your programmer directly )

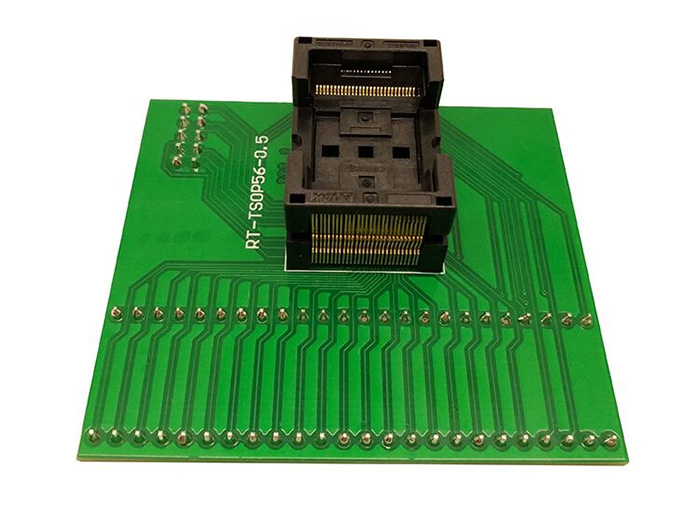

Product image
