PSOP44 SOP44 SOP44(44)-1.27 programming socket
PSOP44 SOP44 SOP44(44)-1.27 programming socket SOP44 Test Socket OTS-44-1.27-04 Programmer Adapter for RT809H programmer
Product Features
-
1.Use double contact technology , contact more stable , -
2.The shapnel use import beryllium copper , small impedance , good flexibility , -
3.Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
Product performance :
-
1. Electrical Specification : -
700V AC at 1 min -
Contact resistance : 50mΩ MAX. -
PIN feet stretch : 55g/PIN(Normal) -
Mechanical life : 15000Times -
Operating temperature : Minus 55 degree to 175 degress -
Operating force : 0.5KG min~ 0.9kg Max
Specification and Dimension
| Type | SOP 44 (44)-1.27 programing socket |
| Pin pitch | 1.27 mm |
| Pin Count | 44 |
| Applicable IC body width | 3.9mm |
| ANDK Thoery life | 20,000 times(Mechanical) |
| HMILU Thoery life | 5,000 times(Mechanical) |
| ANDK Operating Temperature | -55℃~+175 ℃ |

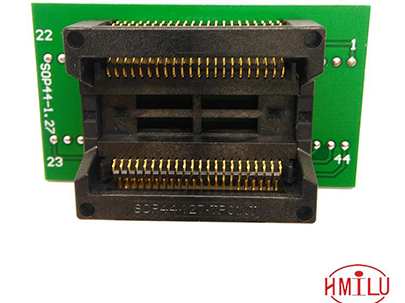

Product image
