QFN12 MLF12 0.5 2*2 programmer socket
QFN12 MLF12 Burn in Socket IC Test Socket Pitch 0.5mm Chip Size 2*2 Flash Adapter Clamshell Programming Socket SDM contactor
Product features
-
1.Product Usage : programmer socket , test socket , burn in and test for chip QFN12 -
2.Applicable Package : QFN12 , pin pitch 0.5mm

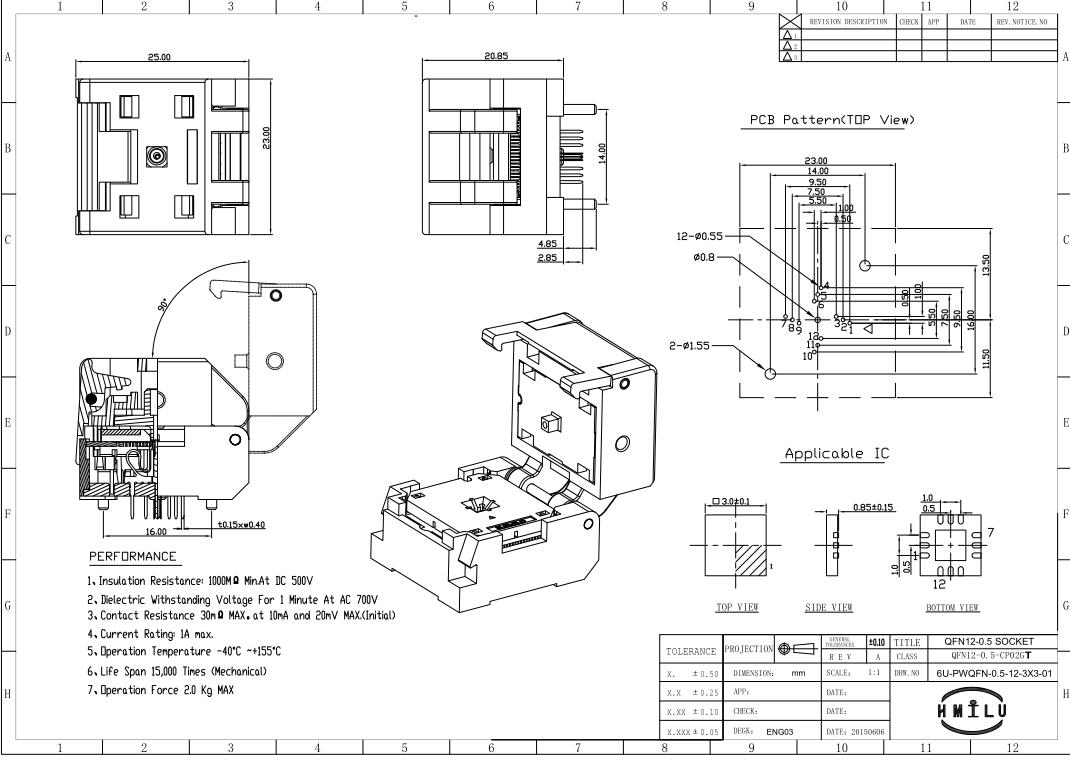

Specification and Dimension
| Model Number | QFN 12-0.5 |
| Pin Pitch | 0.5 mmPin |
| Pin Count | 12 pins |
| Applicable IC body size | 2*2mm |

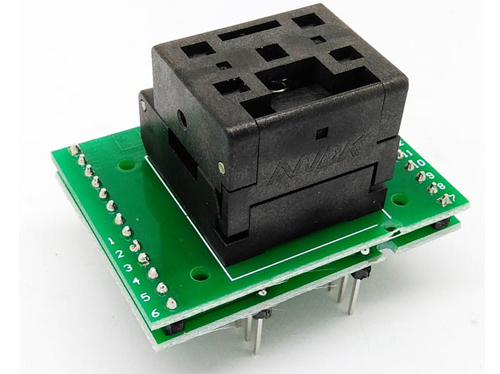

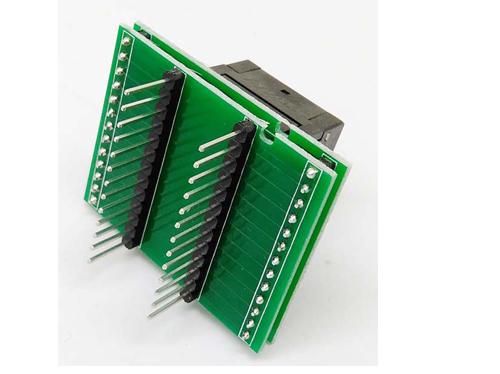

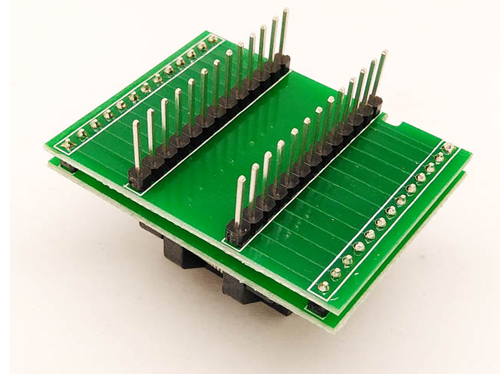

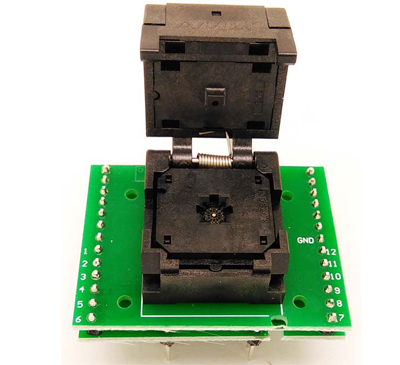

Product image
