QFN28 MLF28 WLCSP28 -0.4 clamshell burn in socket
QFN28 MLF28 WLCSP28 test burn in Socket Adapter Pitch 0.4mm IC Body Size 4*4mm IC550-0284-011-G Clamshell Test Socket
Product features
-
1.100% brand new , high Quality and duarable -
2.Tested before shipping -
3.Easy to use -
4.Technical support and datasheet are available if you need -
5.we are the original manufacturer and welcome anyone to be our distribution agents -
6.Professional manufacturer in all kinds of IC chip testing sockets and adapters -
More Quantities with LOWER PRICE! -
More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

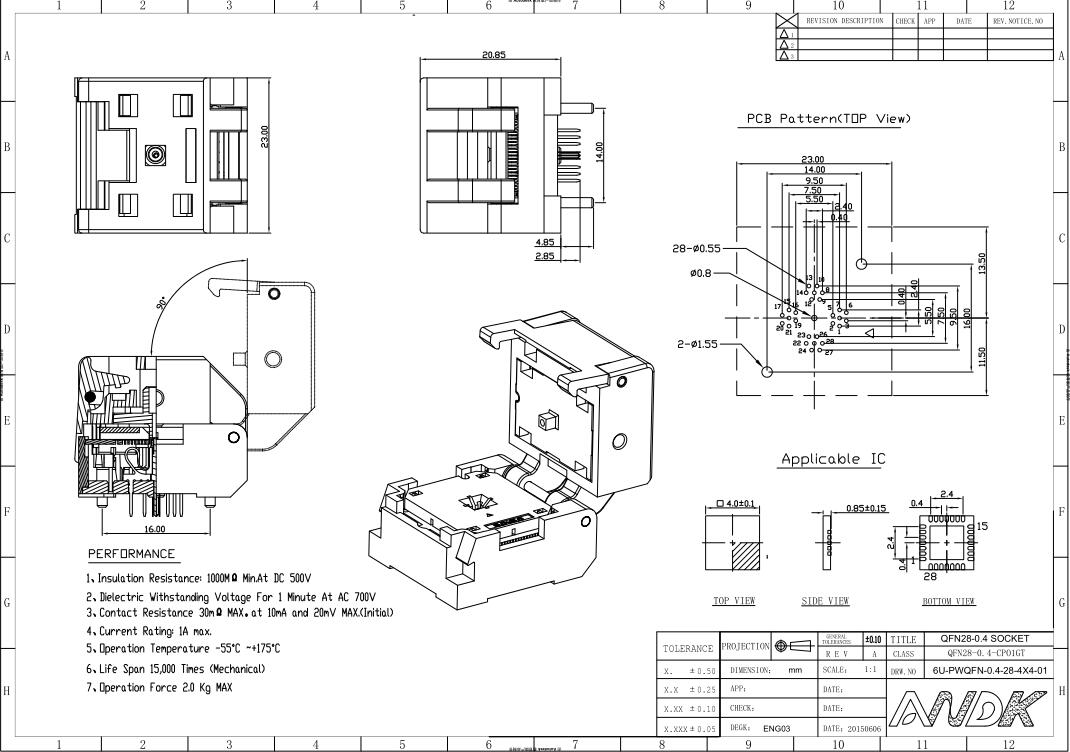

Specification and Dimension
| Model Number | QFN28 Programming Socket |
| Type | Test & Programming Socket ( with pcb , POGO PIN ) |
| Package | QFN 28 , MLF 28 , WLCSP 28 |
| Pin Pitch | 0.4mm |
| Pin Count | 28 pins |
| Applicable IC body size | 4*4 mm |
| Structure | Clamshell |
| Product description | Type : Test & Programming Socket ( with pcb ) * Package : QFN28 , MLF28 , WLCSP28 ... |

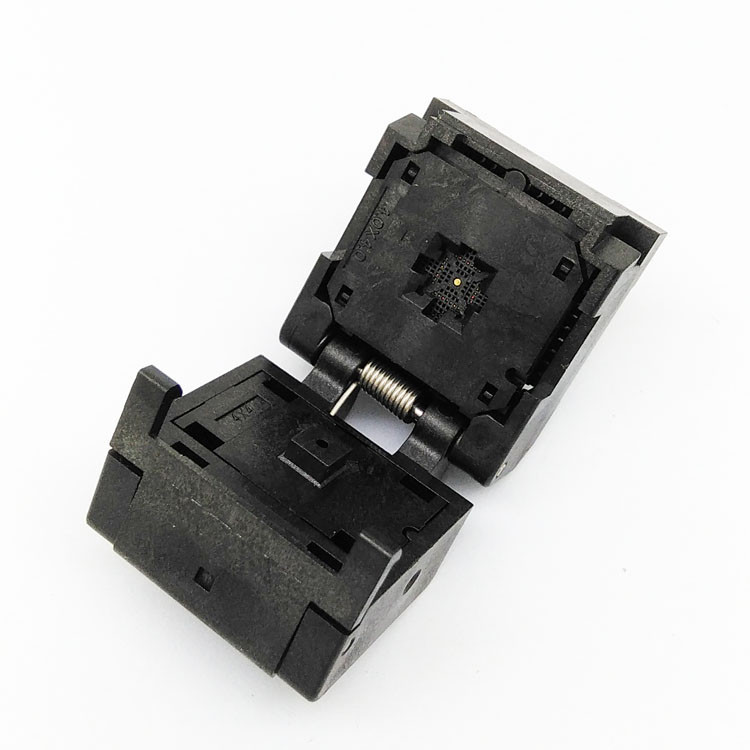

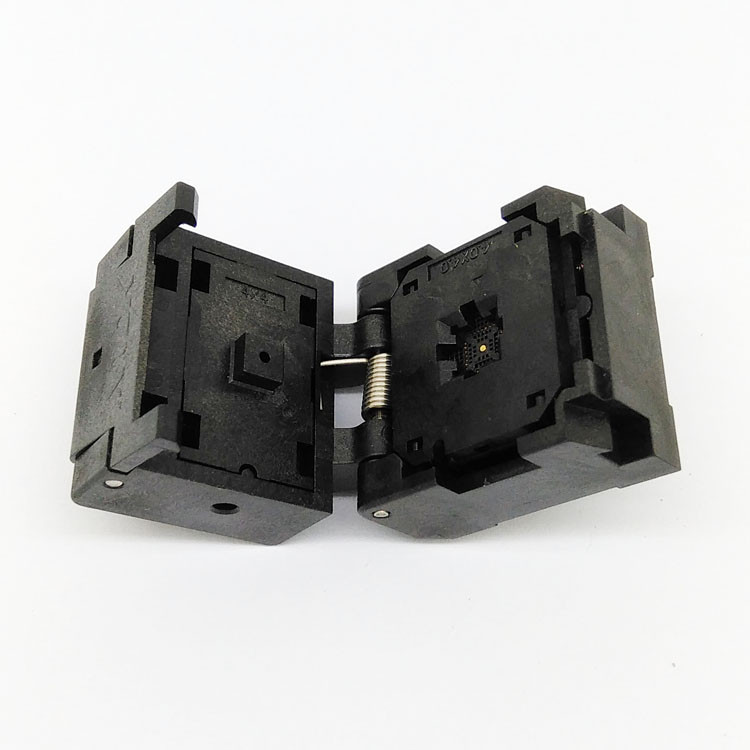

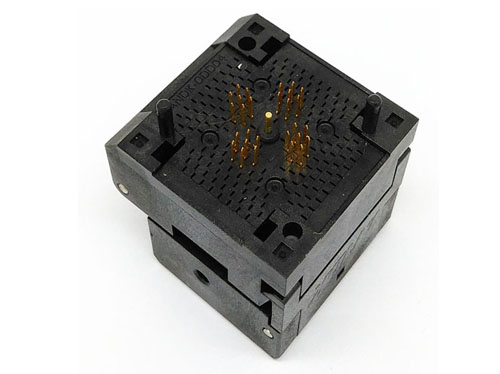

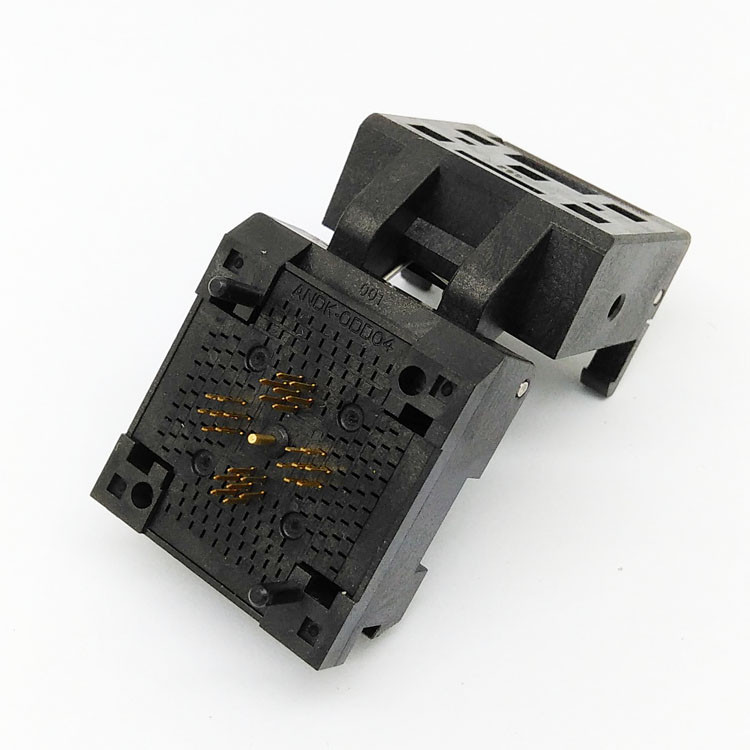

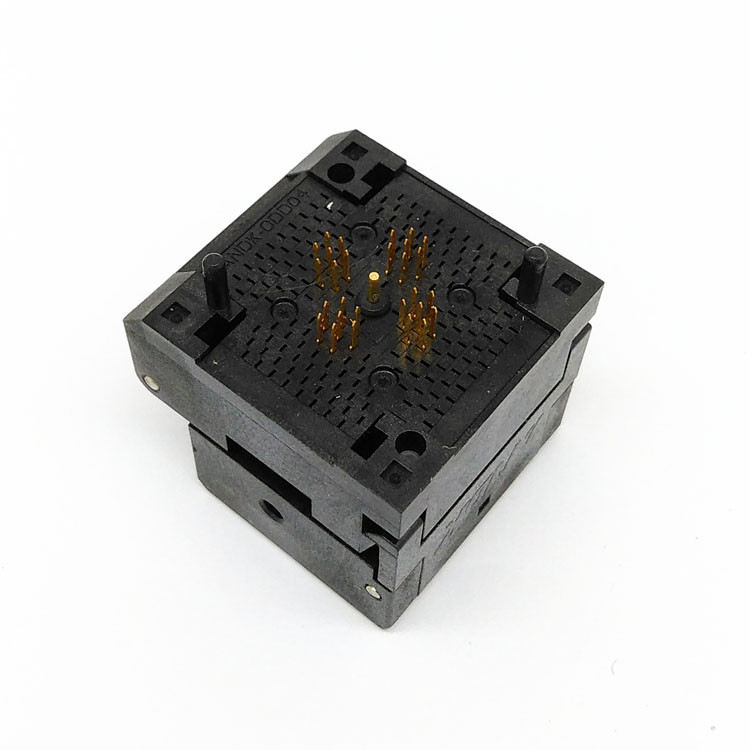

Product image
