QFN28 STM32 programming socket
QFN28 MLF28 WLCSP28 to DIP28 Programming Socket Adapter Pitch 0.5mm IC Body Size 5x5mm STM32 programming socket
parameter
| Type | Test & Programming Socket ( with pcb ) |
| Package | QFN28 , MLF28 , WLCSP28 |
| Pin Pitch | 0.5 mm |
| Pin Count | 28 pins |
| Applicable IC body size | 5x5 mm |
| About the pinout, please check the socket drawing. | |
PRODUCT FEATURES
-
-
Small spacing
minimum pitch of 0.2mm
-
-
test accuracy
The test is accurate and the error rate is 0.001 %
-
-
High temperature
high temperature: 175 ℃, low temperature: -55 ℃
-
-
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands

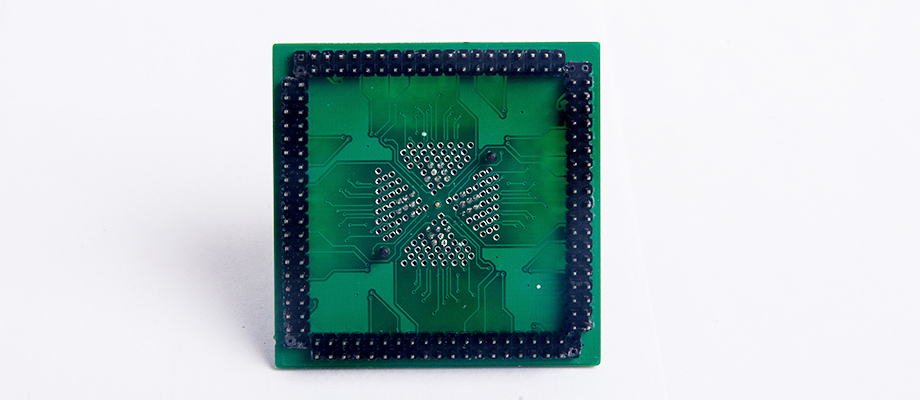

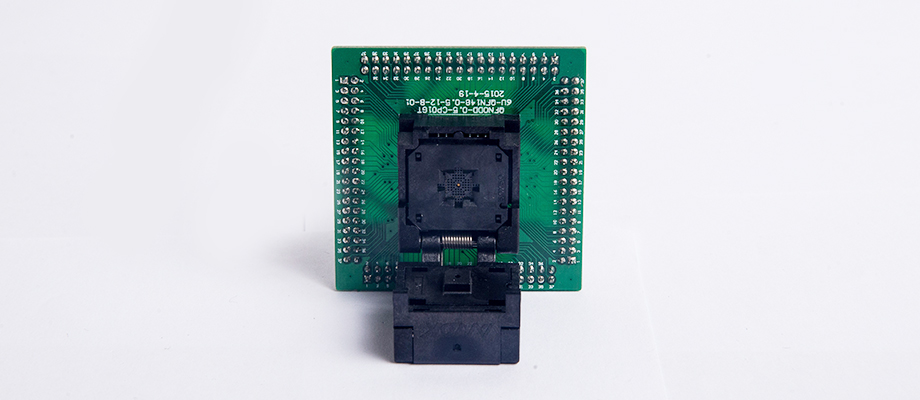

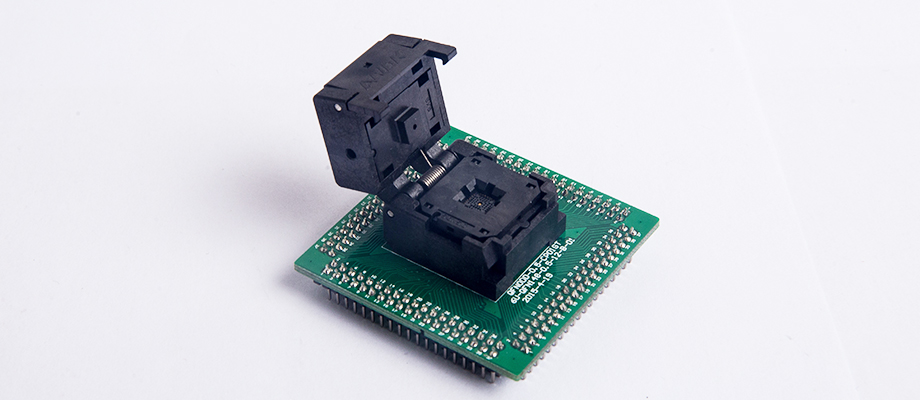

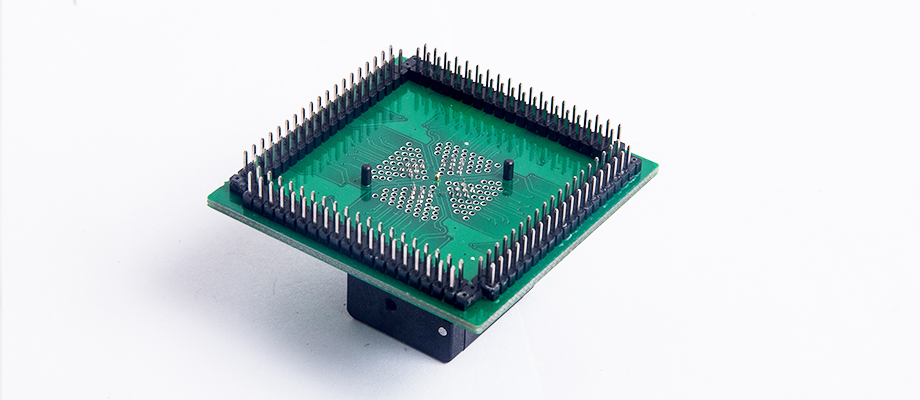

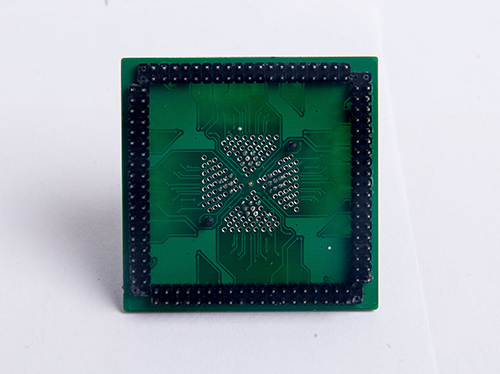

Product image
