QFN32 MLF32 0.4mm open top Burn in Socket
QFN32 MLF32 Burn in Socket IC Test Socket Burn in Socket Opentop Chip Size 5*5 Programming Socket Flash Connector
RODUCT FEATURES
-
1.Product Usage : burn in socket , test socket , burn in and test for chip QFN32 -
2.Applicable Package : QFN32 , pin pitch 0.4mm

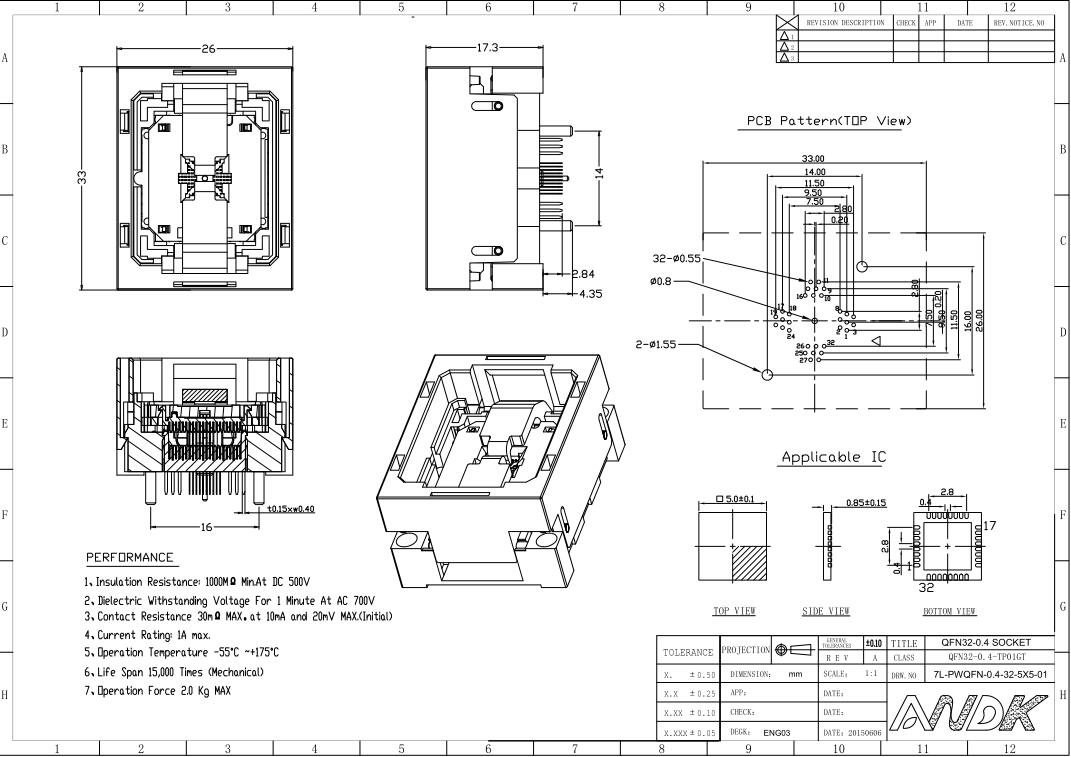

SPECIFICATION AND DIMENSION
| Type | QFN 32 |
| Pin pitch | 0.4 mm |
| Pin Count | 32 |
| Applicable IC Body Dimension | 5*5 mm |

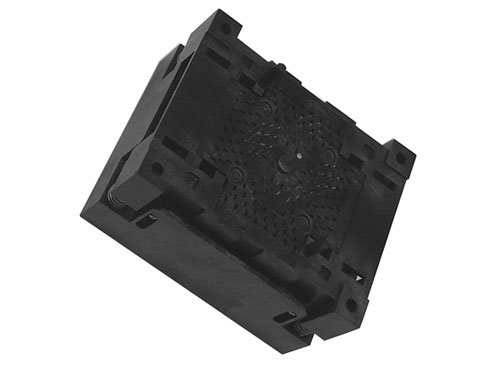

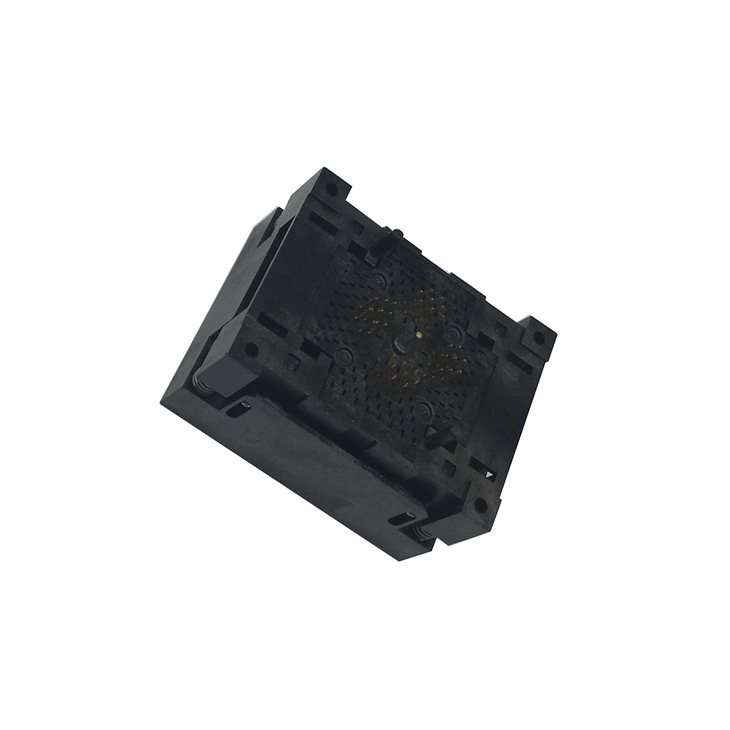

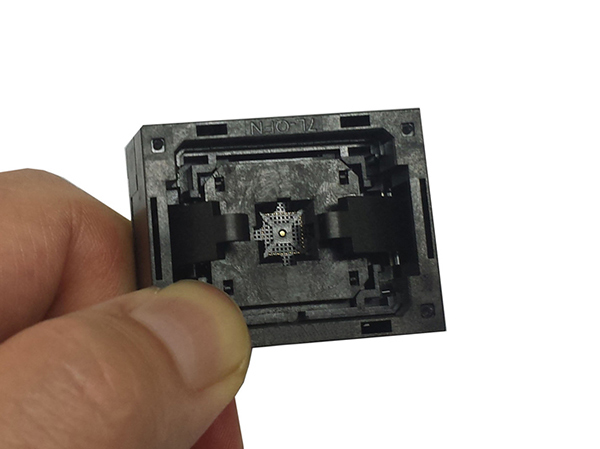

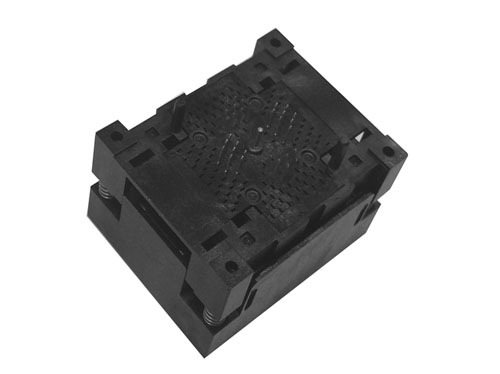

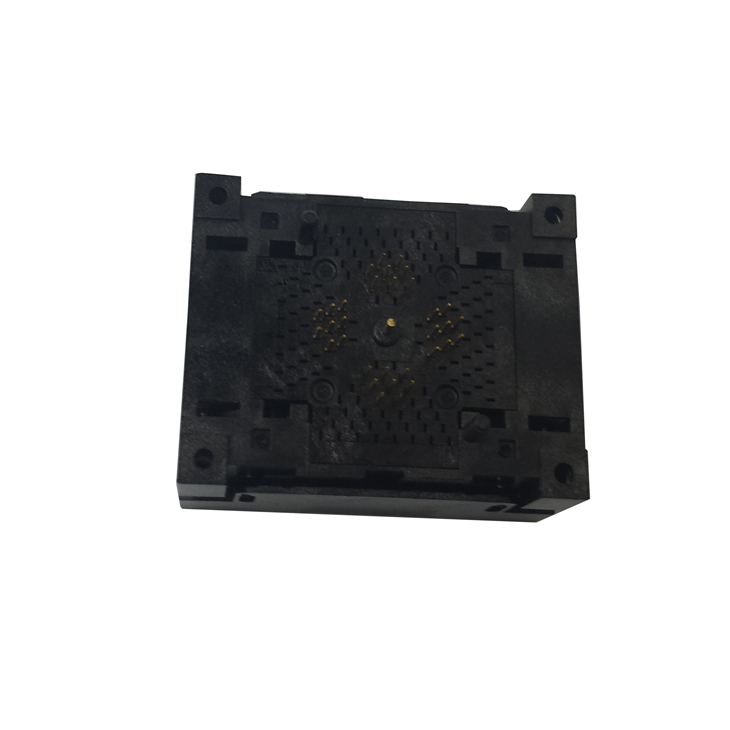

PRODUCT IMAGE
