QFN36-0.4 5x5 Burn in Socket
QFN36-0.4 5x5 Burn in Socket IC Test Socket Opentop Chip IC Size 5*5 Test Socket QFN36 MLF36 Flash Adapter Socket customized
Product features
-
1.Product Usage : programmer socket , test socket , burn in and test for chip QFN36 -
2.Applicable Package : QFN36 , pin pitch 0.4mm

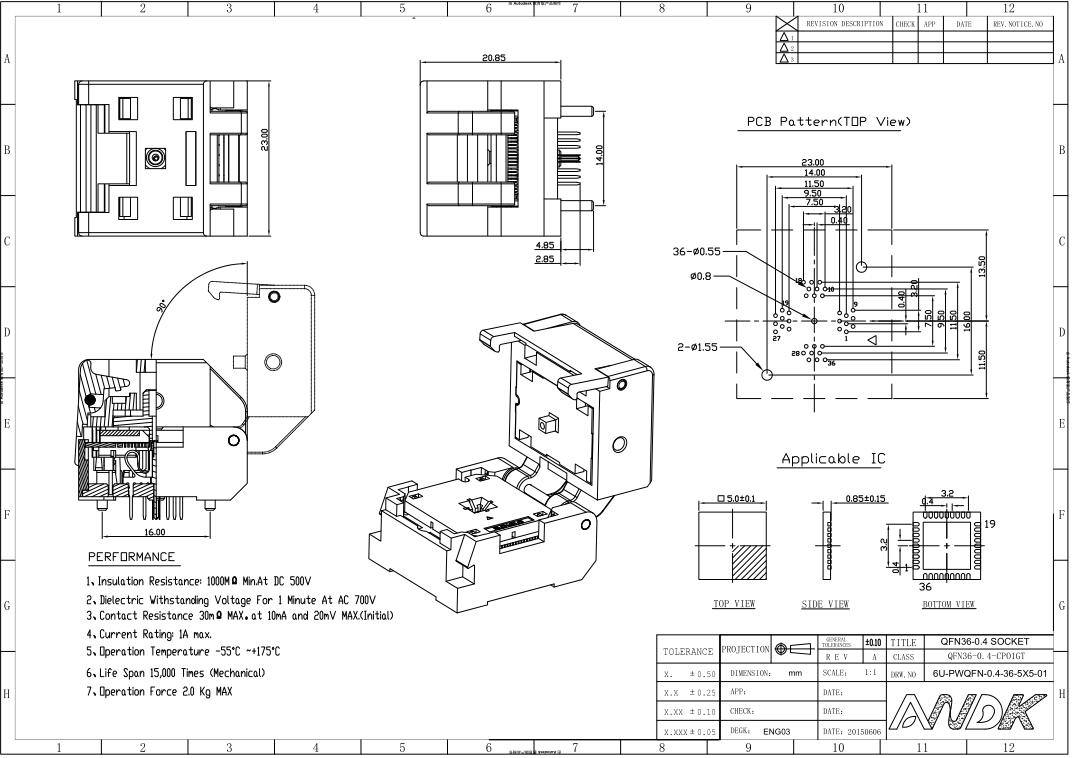

Specification and Dimension
| Type | QFN 36-0.4 |
| Pin pitch | 0.4 mm |
| Pin Count | 36 |
| Applicable IC Body Dimension | 5*5 mm |
| Applicable IC Body Dim... |
|
| Product description | QFN36(5x5)-0.4 socket QFN36 MLF36 Burn in Socket IC Test Socket Opentop Chip Size 5*5 Test S... |

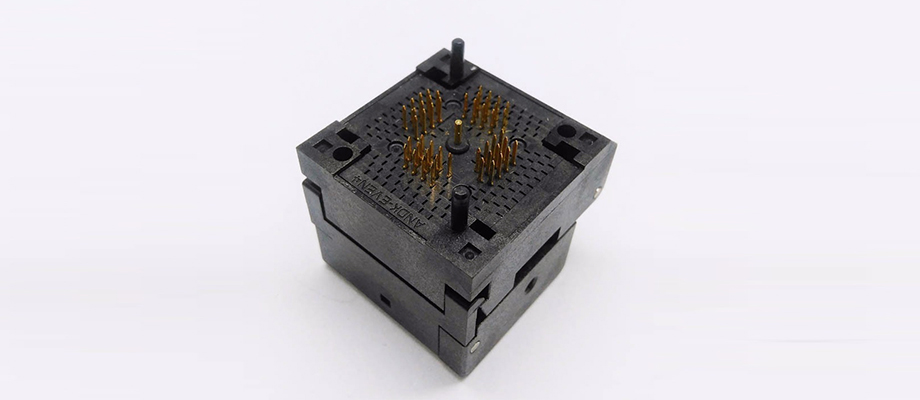

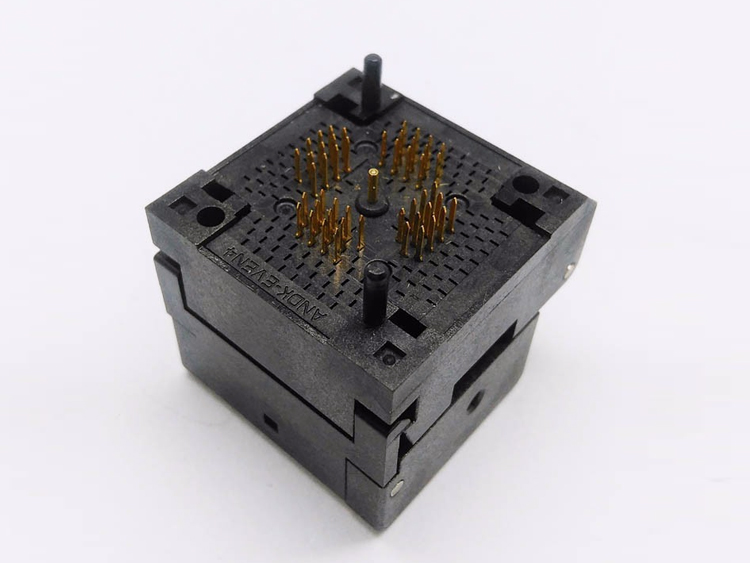

Product image
QFN36(5x5) 0.4 Burn in Socket IC Test Socket Opentop Chip IC Size 5*5 Test Socket QFN36 MLF36 Flash Adapter Socket customized
