QFN36 MLF36 WLCSP36 Programming Socket Adapter Pin Pitch 0.4mm I
QFN36 MLF36 WLCSP36 Programming Socket Adapter Pin Pitch 0.4mm IC Body Size 5*5mm Test Socket QFN36(5x5)-0.4 programming socket
Product features
-
1.100% brand new , high Quality and duarable -
2.Tested before shipping -
3.Easy to use -
4.Technical support and datasheet are available if you need -
5.we are the original manufacturer and welcome anyone to be our distribution agents -
6.Professional manufacturer in all kinds of IC chip testing sockets and adapters -
More Quantities with LOWER PRICE! -
More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

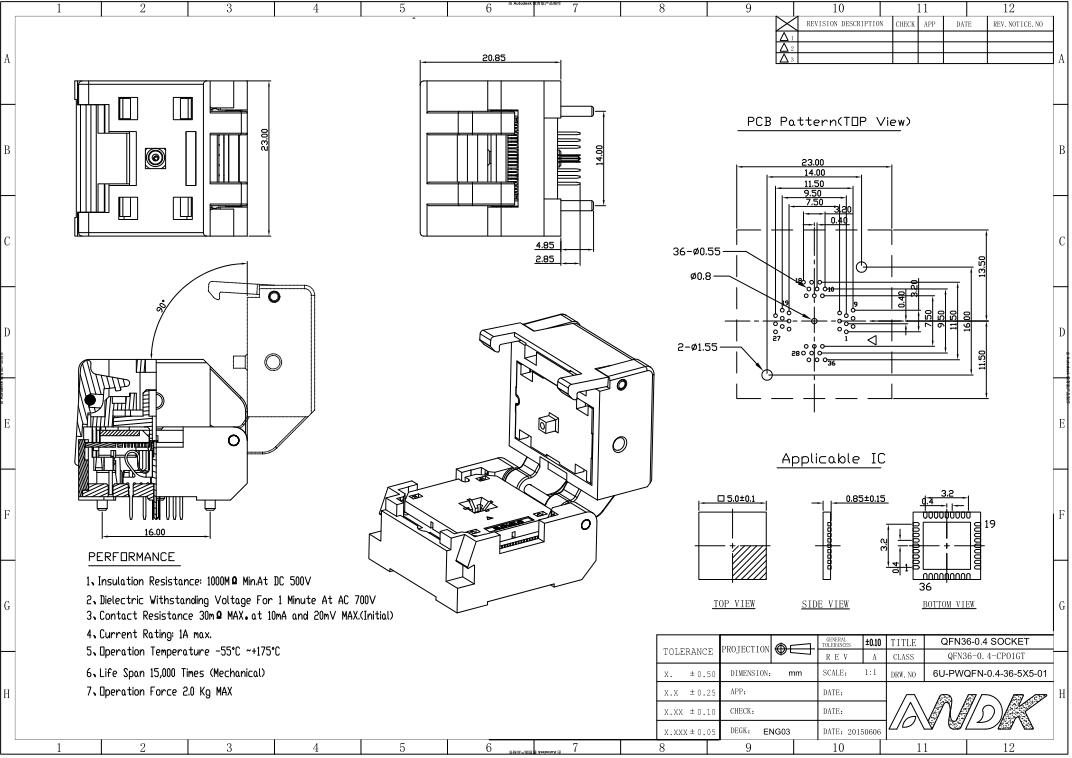

Specification and Dimension
| Type | Test & Programming Socket ( with pcb ) |
| Package | QFN 36 , MLF 36 , WLCSP 36 |
| Pin Pitch | 0.4 mm |
| Pin Count | 36 pins |
| Applicable IC body size | 5*5 mm |
| Product description | QFN36 MLF36 WLCSP36 Programming Socket Adapter Pin Pitch 0.4mm IC Body Size 5*5mm Te... |

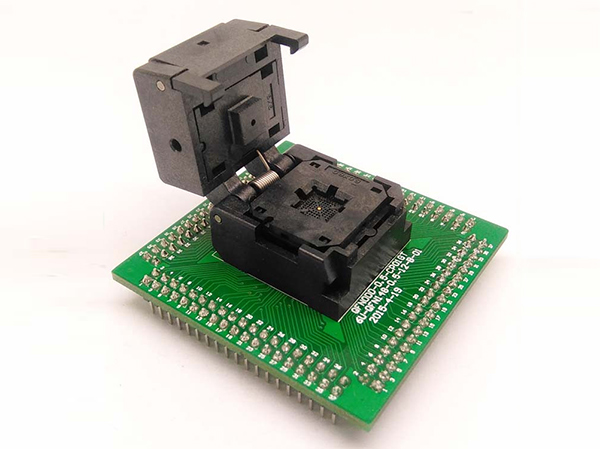

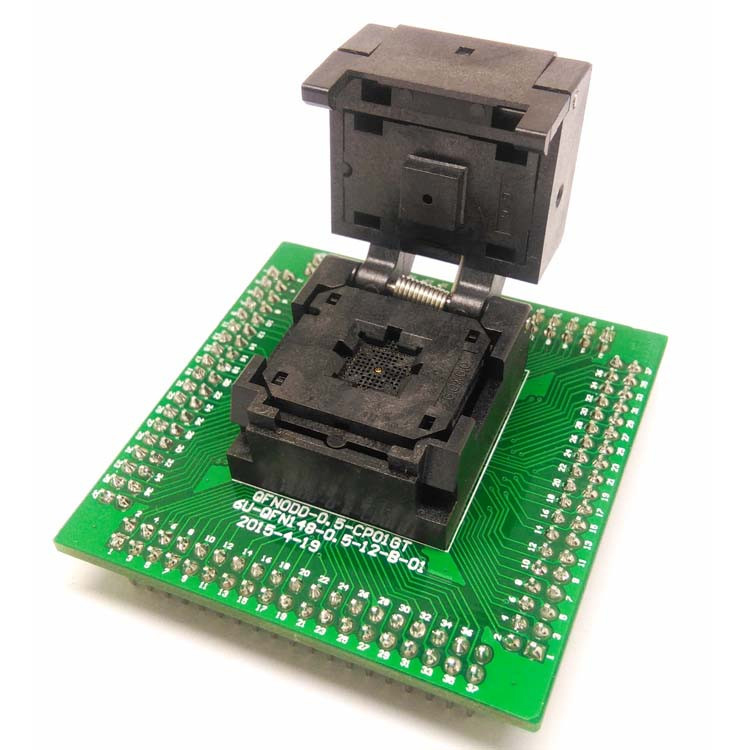

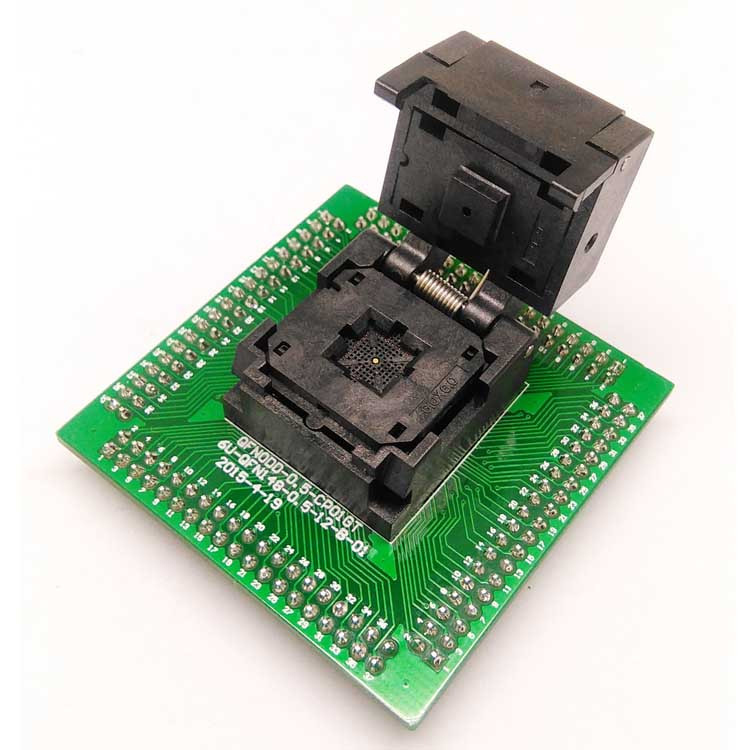

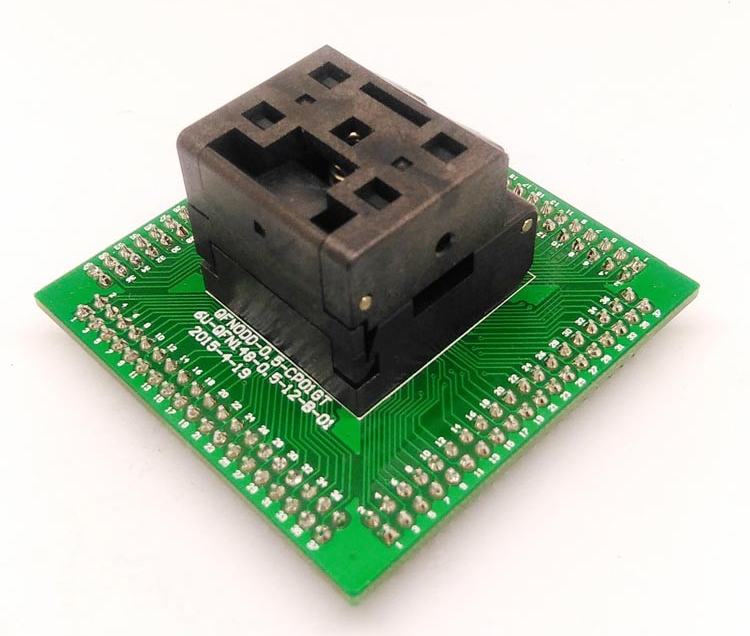

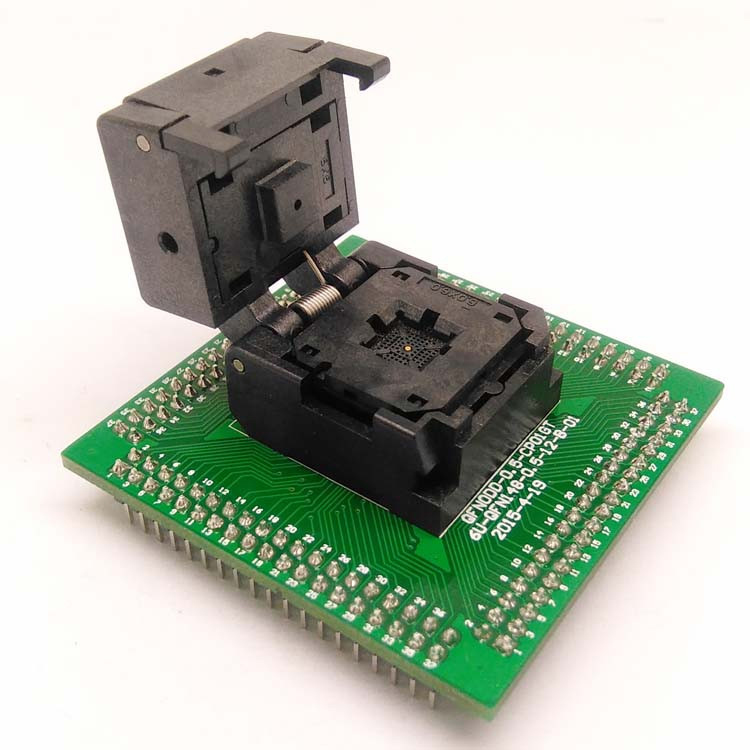

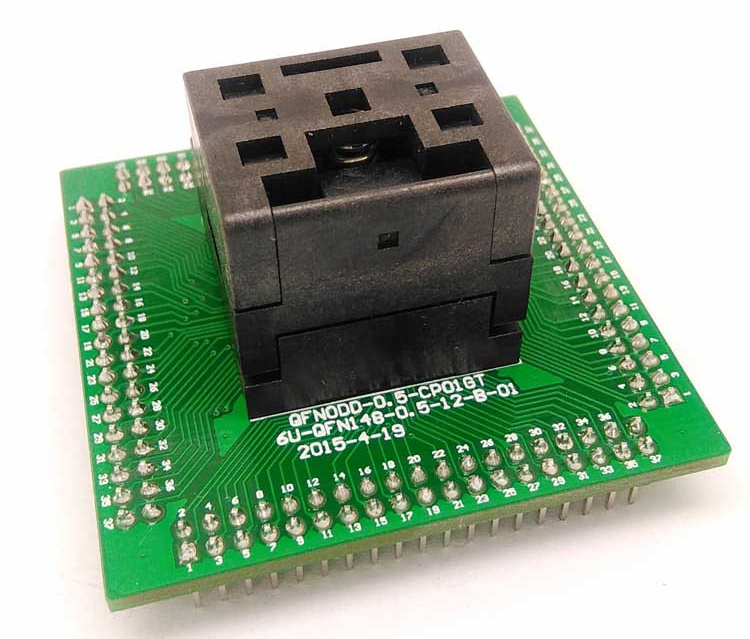

Product image
QFN36 MLF36 WLCSP36 Programming Socket Adapter Pin Pitch 0.4mm IC Body Size 5*5mm Test Socket QFN36(5x5) 0.4 programming socket
