QFN40 MLF40 0.4 5*5 clamshell Burn in Socket
QFN40 MLF40 Burn in Socket IC Test Socket Pitch 0.6mm Clamshell Chip Size 6*6 Flash Adapter Burn in Socket
Product features
-
1.Product Usage : programming socket , test socket , burn in and test for chipQFN40 -
2.Applicable Package : QFN40 , pin pitch 0.4mm

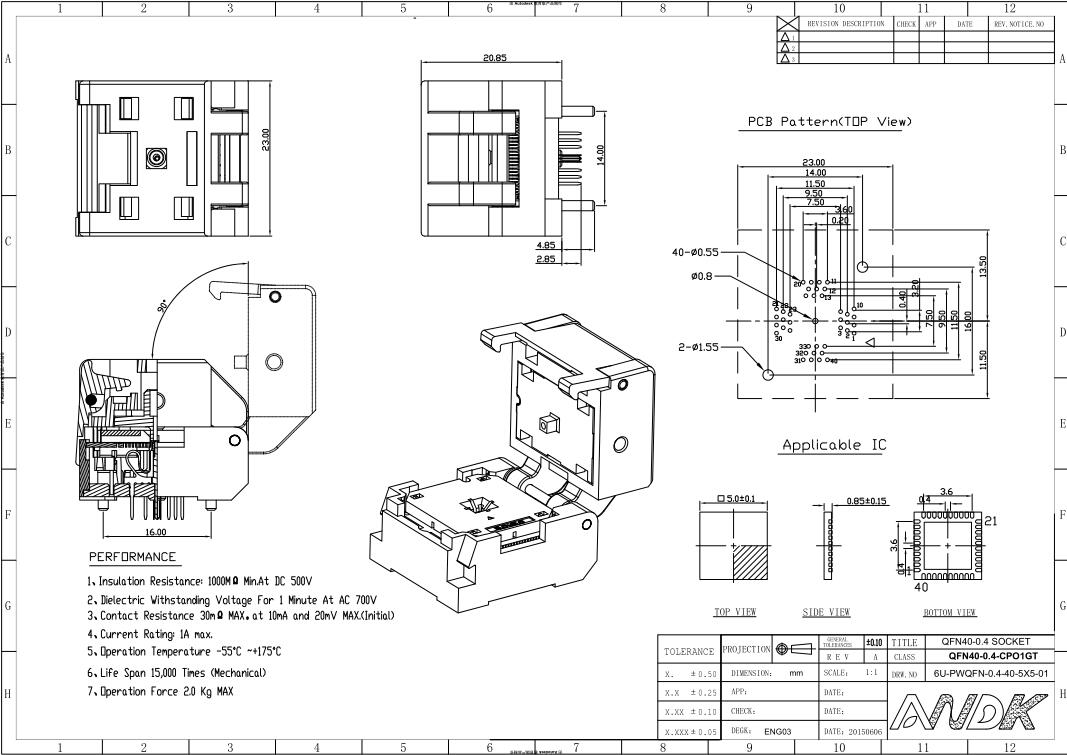

Specification and Dimension
| Type | QFN 40 |
| Pin pitch | 0.4 mm |
| Pin Count | 40 pins |
| Applicable IC body size | 5*5mm |
| Applicable IC body size | 5*5 |
| Product description | QFN 40 MLF 40 Burn in Socket IC Test Socket Pitch 0.4mm Clamshell Chip Size 5*5 Flash Adapter |

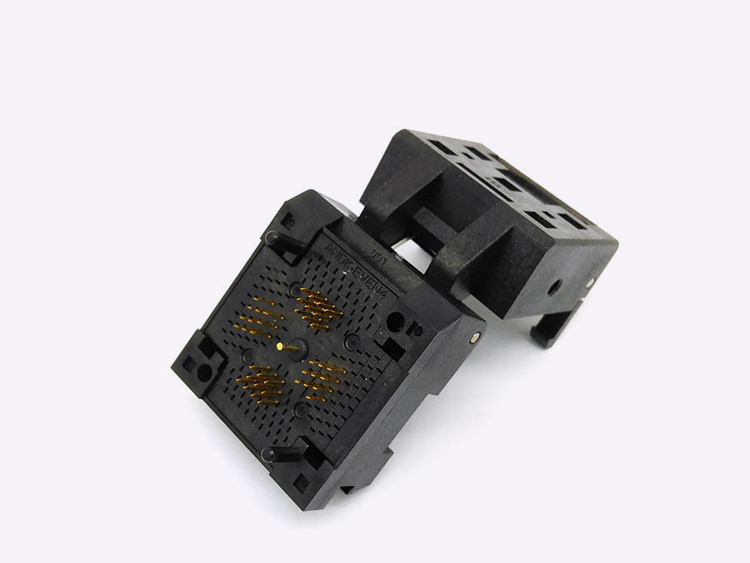

Product image
