QFN4 DFN4 WSON4 burn in Socket
Pogo Pin IC Test Adapter QFN4-1.2-CPO1PNL Pitch 1.2mm Clamshell Size 3.2*2.5mm Burn in Socket
Product features
-
1.100% brand new , high Quality and duarable -
2.Tested before shipping -
3.Easy to use -
4.Technical support and datasheet are available if you need -
5.we are the original manufacturer and welcome anyone to be our distribution agents -
6.Professional manufacturer in all kinds of IC chip testing sockets and adapters. -
More Quantities with LOWER PRICE! -
More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

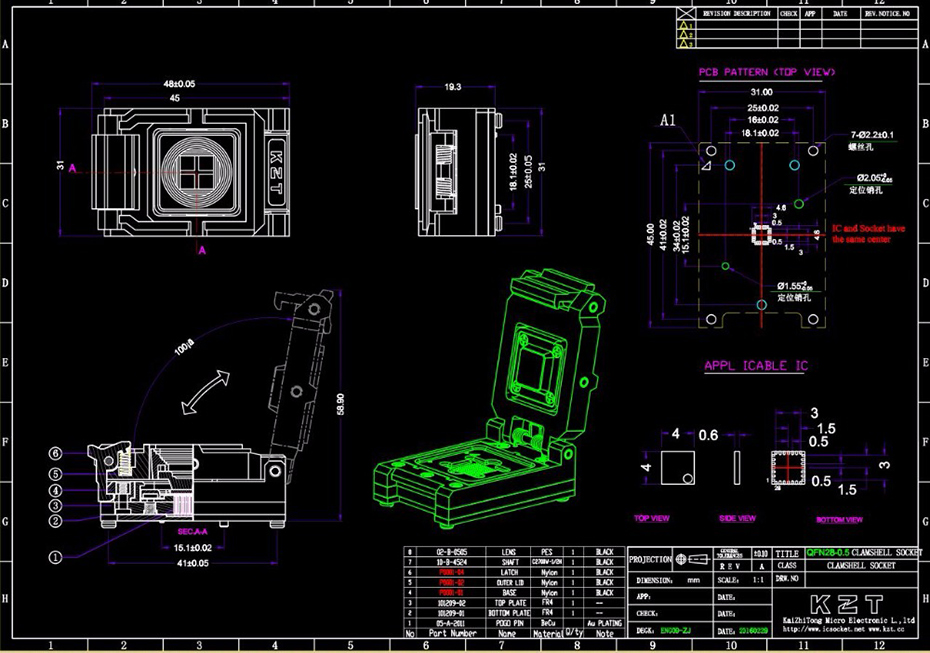

Specification and Dimension
| Type | Test & Programming Socket ( with pcb , POGO PIN ) |
| Package | QFN 4 , DFN 4 , WSON 4 |
| Pin Pitch | 1.2 mm |
| Pin Count | 4 pins |
| Applicable IC body size | 3.2*2.5 mm |
| Model Number | QFN4-1.2-CPO1PNL |
| Package Including | QFN4-1.2 3.2*2.5mm adapter 1 piece |

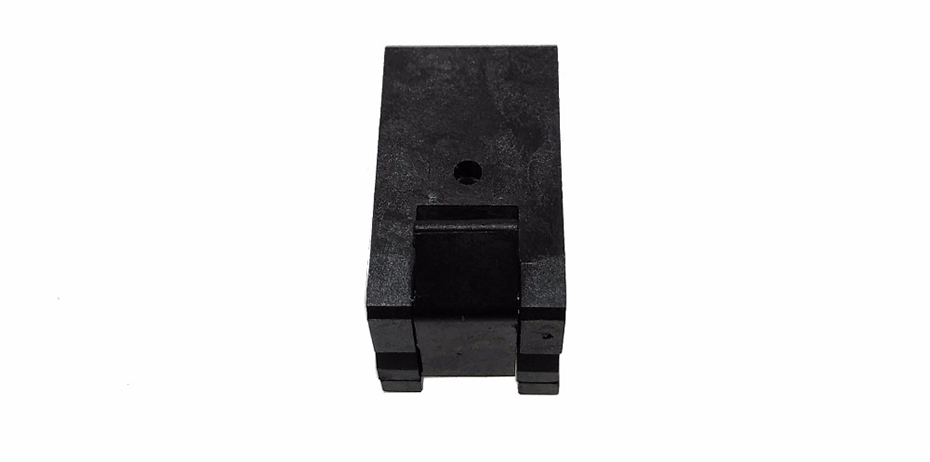

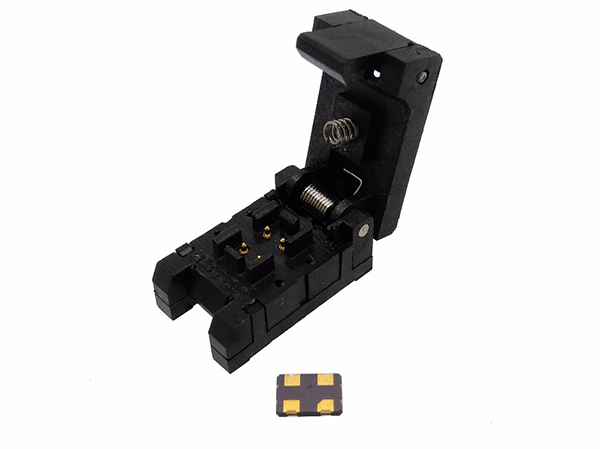

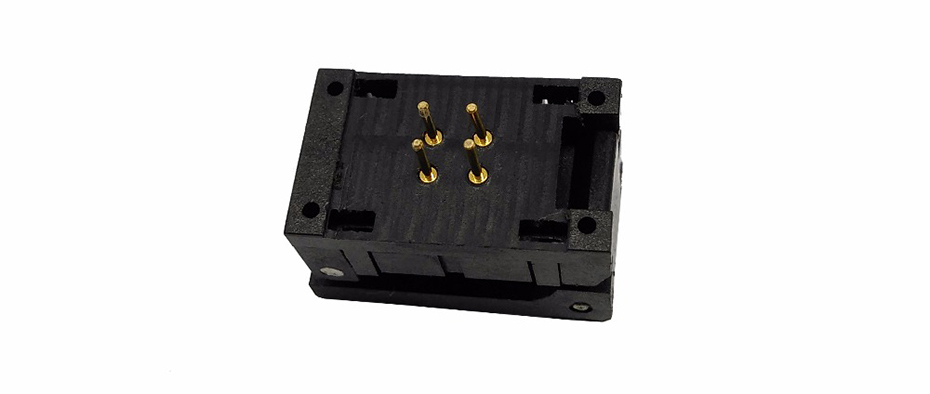

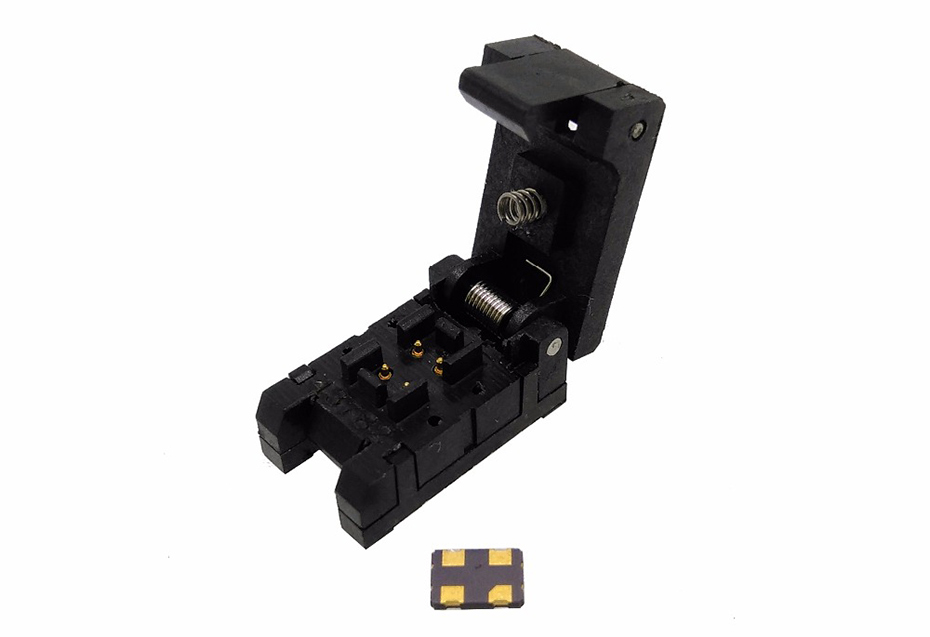

Product image
