QFP64 TQFP64 LQFP64 Open top Structure Burn in Socket

QFP64 TQFP64 LQFP64 Open top Structure Burn in Socket Pitch 0.5mm FPQ-64-0.5-06 Test Flash Programming Adapter
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product Specification:


  • 1. Product Usage : programmer socket , test socket , burn in and test for chip QFP64/TQFP64/LQFP64

  • 2. Applicable Package : QFP64 , TQFP64 , LQFP64 , pin pitch 0.5mm

Specification and Dimension :


  • a) Type : QFP64-0.5-CP01N
    b) Pin pitch : 0.5 mm
    c) Pin Count : 64

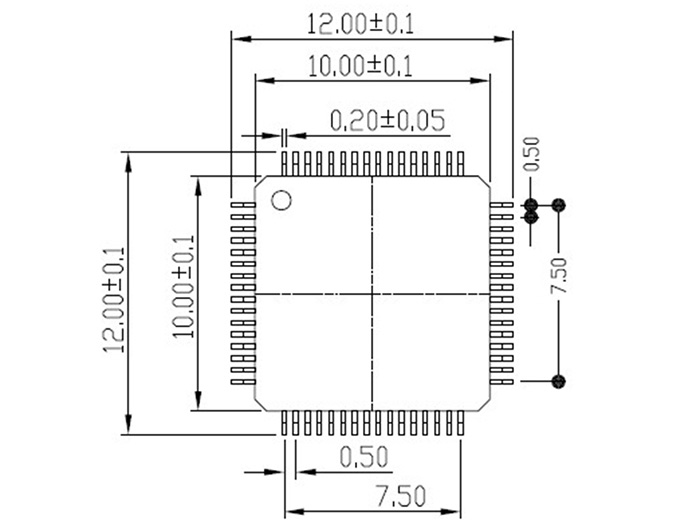

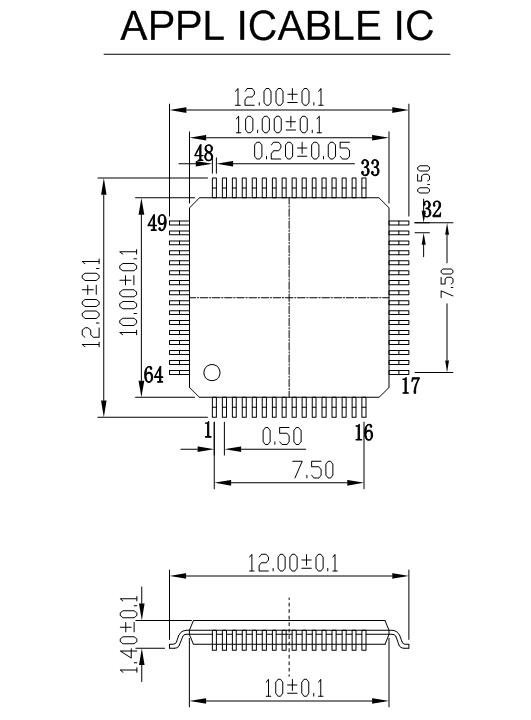

    d) Applicable IC Body Dimension : 10*10 mm ( including pin dimension : 12*12 mm)

Specification and Dimension

Model Number: QFP 64 Programmer Socket
Type: QFP 64 TQFP 64 LQFP 64 Programm Socket
Pin: 64
Pin Pitch: 0.5 mm
Structure: Open Top
Product description: a) Type : QFP64-0.5-CP01N
b) Pin pitch : 0.5 mm
c) Pin Count : 64
d) Applicable IC Body Dimension : 10*10 mm ( including pin dimension : 12*12 mm)
We're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you want batch purchase , please contact us for inquiry , we can offer you a cheaper price ! !

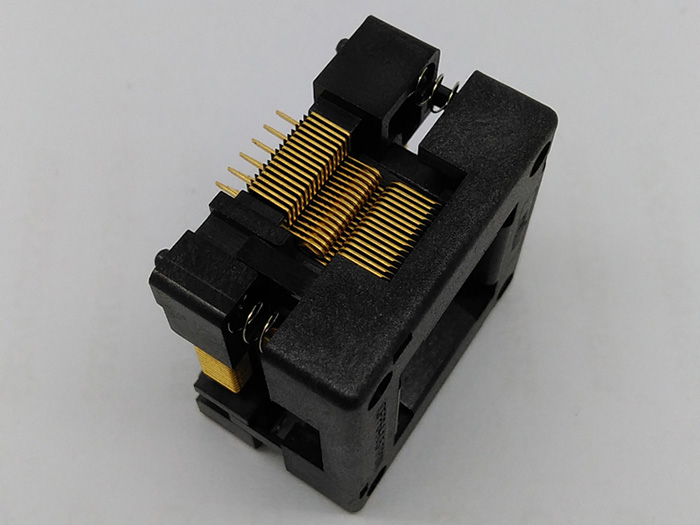

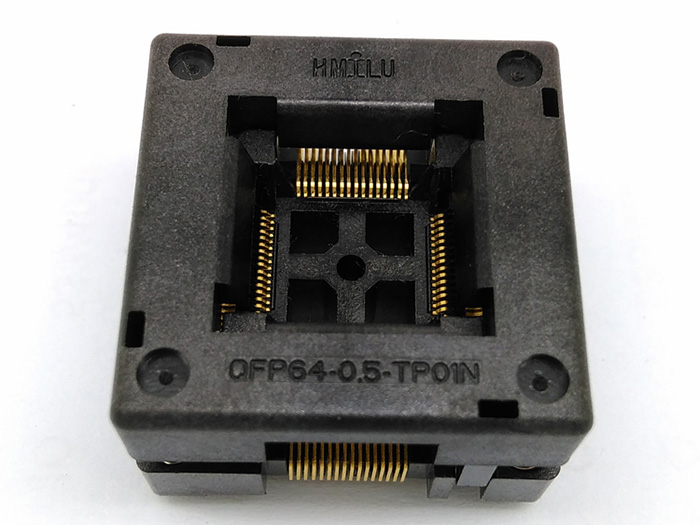

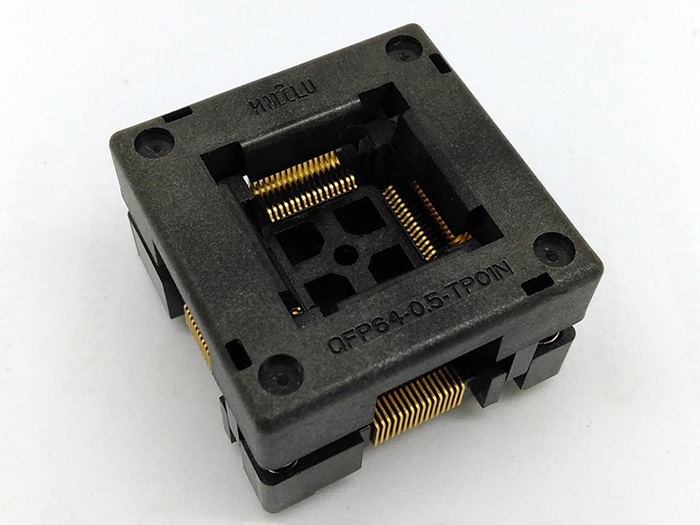

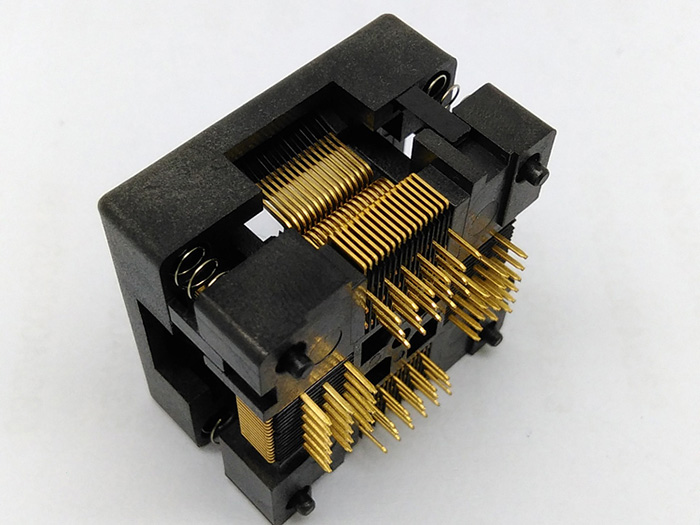

Product image

QFP64 TQFP64 LQFP64 Open top Structure Burn in Socket

QFP64 TQFP64 LQFP64 Open top Structure Burn in Socket

QFP64 TQFP64 LQFP64 Open top Structure Burn in Socket

QFP64 TQFP64 LQFP64 Open top Structure Burn in Socket

QFP64 TQFP64 LQFP64 Open top Structure Burn in Socket

QFP64 TQFP64 LQFP64 Open top Structure Burn in Socket
