QFP64 TQFP64 LQFP64 Open top Structure Burn in Socket
QFP64 TQFP64 LQFP64 Open top Structure Burn in Socket Pitch 0.5mm FPQ-64-0.5-06 Test Flash Programming Adapter
Product Specification:
-
1. Product Usage : programmer socket , test socket , burn in and test for chip QFP 64/TQFP 64/LQFP 64 -
2. Applicable Package : QFP 64 , TQFP 64 , LQFP 64 , pin pitch 0.5mm

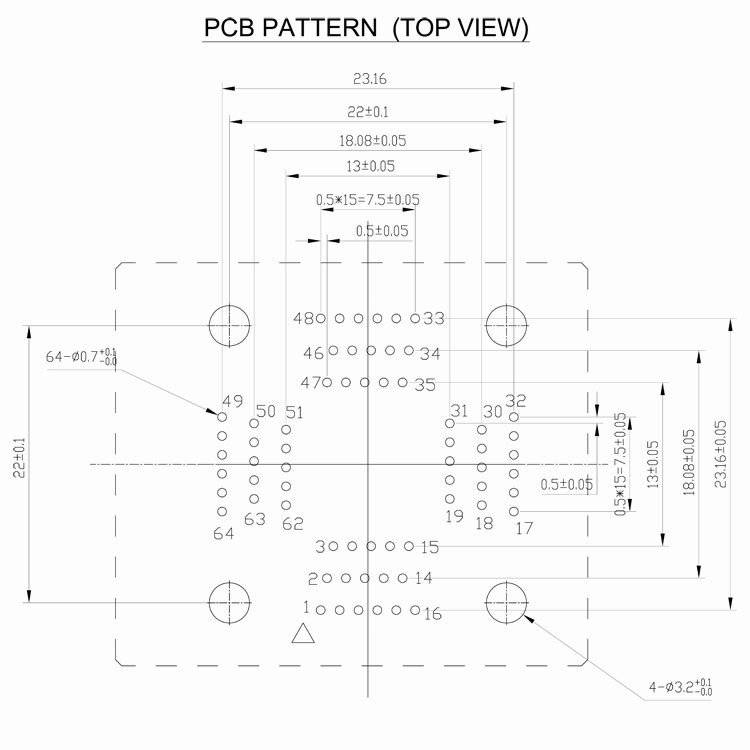

Specification and Dimension :
-
a) Type : QFP64-0.5-CP01N
b) Pin pitch : 0.5 mm
c) Pin Count : 64
d) Applicable IC Body Dimension : 10*10 mm ( including pin dimension : 12*12 mm)
Specification and Dimension
| Model Number: | QFP 64 Programmer Socket |
| Type: | QFP 64 TQFP 64 LQFP 64 Programm Socket |
| Pin: | 64 |
| Pin Pitch: | 0.5 mm |
| Structure: | Open Top |
| Product description: |
a) Type : QFP64-0.5-CP01N b) Pin pitch : 0.5 mm c) Pin Count : 64 d) Applicable IC Body Dimension : 10*10 mm ( including pin dimension : 12*12 mm) |

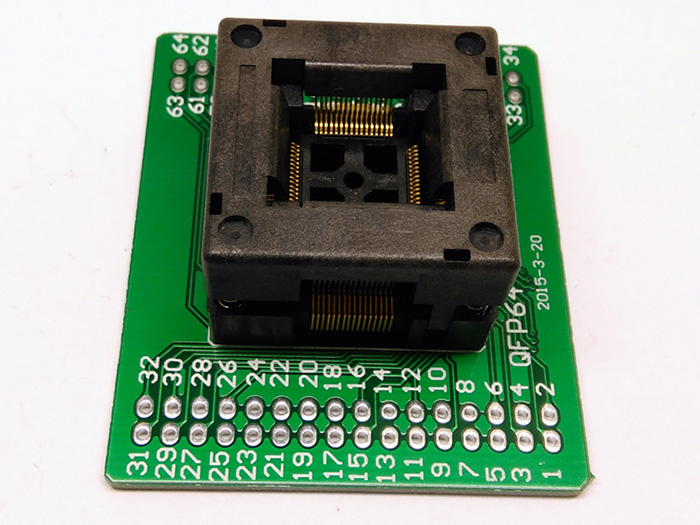

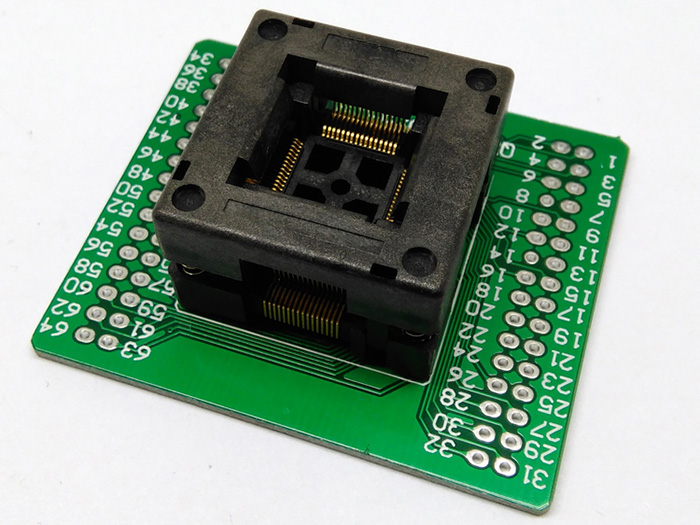

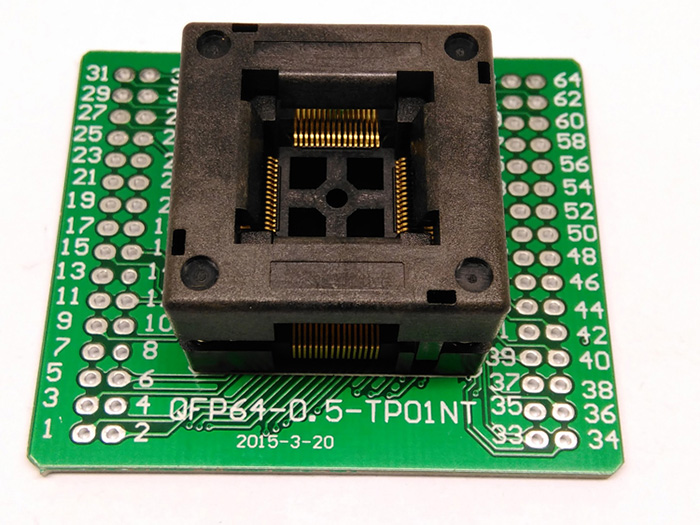

Product image
