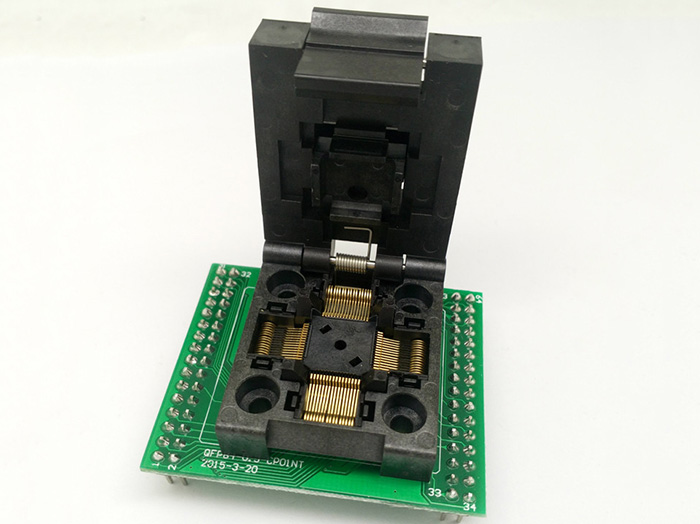

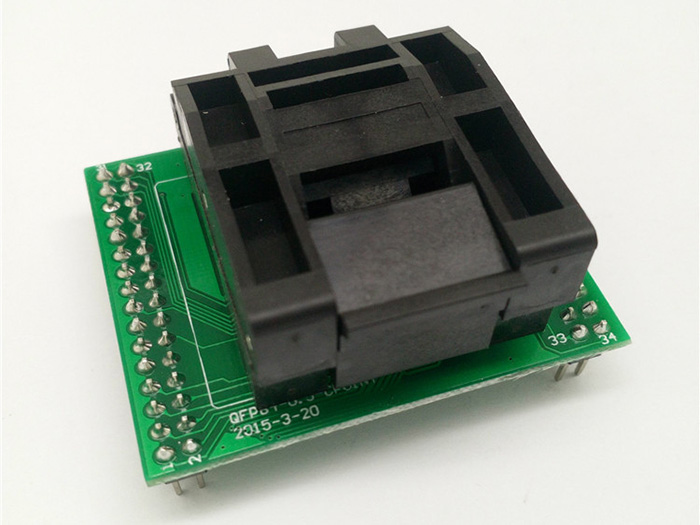

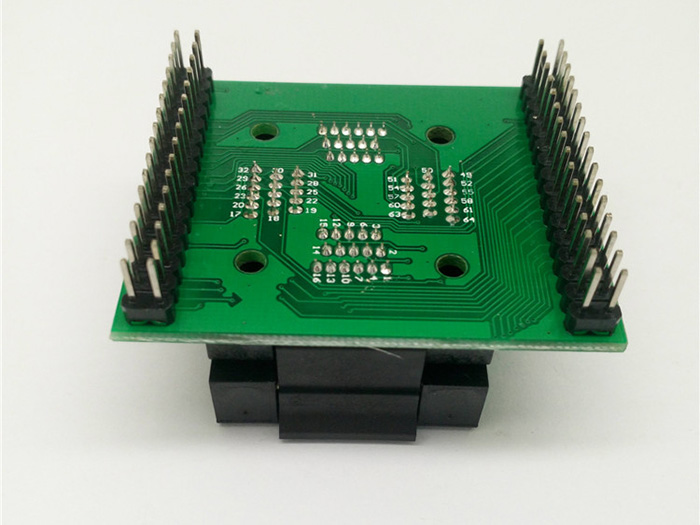

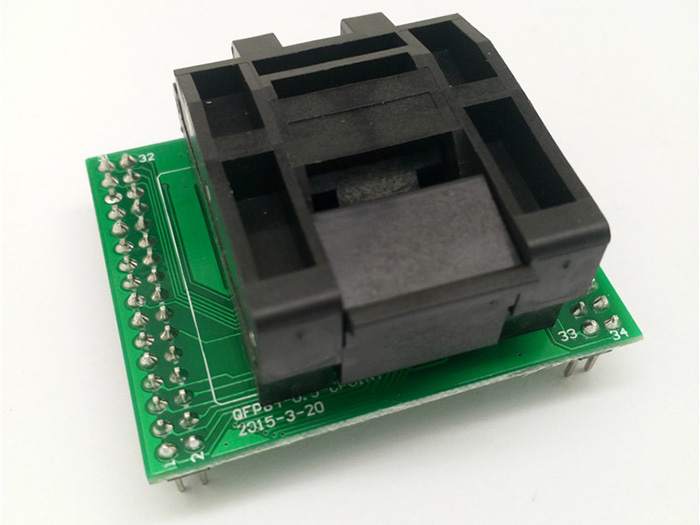

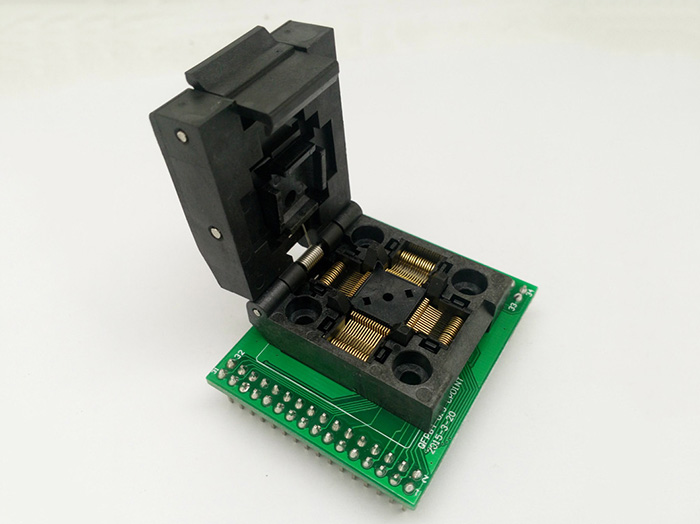

QFP64 TQFP64 LQFP64 Clamshell Programming Socket
QFP64 TQFP64 LQFP64 Open top Structure Burn in Socket Pitch 0.5mm FPQ-64-0.5-06 Test Flash Programming Adapter
Product Introduction:
-
1. Product Usage : programmer socket , test socket , burn in and test for chip QFP64/TQFP64/LQFP64 -
2. Applicable Package : QFP64 , TQFP64 , LQFP64 , pin pitch 0.5mm
Specification and Dimension :
-
a)a) Type : QFP64-0.5-CP01N
b) Pin pitch : 0.5 mm
c) Pin Count : 64

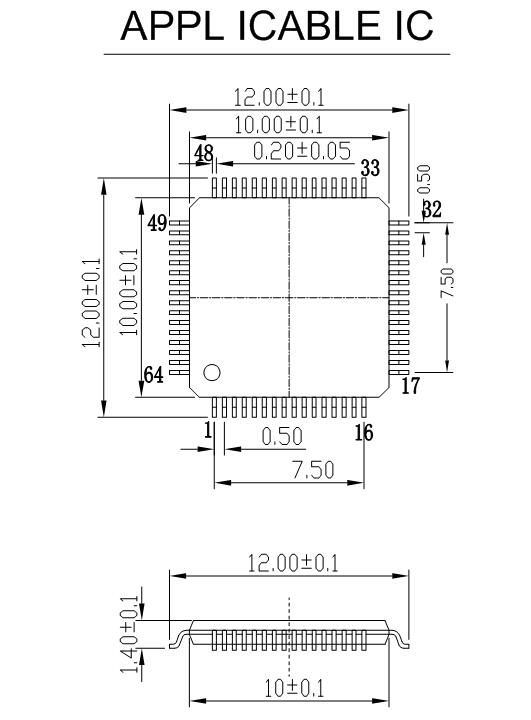

d) Applicable IC Body Dimension : 10*10 mm ( including pin dimension : 12*12 mm)
Specification and Dimension
| Type: | QFP 64 Programming Socket |
| Pin: | 64 |
| Pin Pitch: | 0.5 mm |
| Structure: | Clamshell |
| Product description: |
1. Product Usage : programmer socket , test socket , burn in and test for chip QFP 64/TQFP 64/LQFP 64 2. Applicable Package : QFP 64 , TQFP 64 , LQFP 64 , pin pitch 0.5mm |
