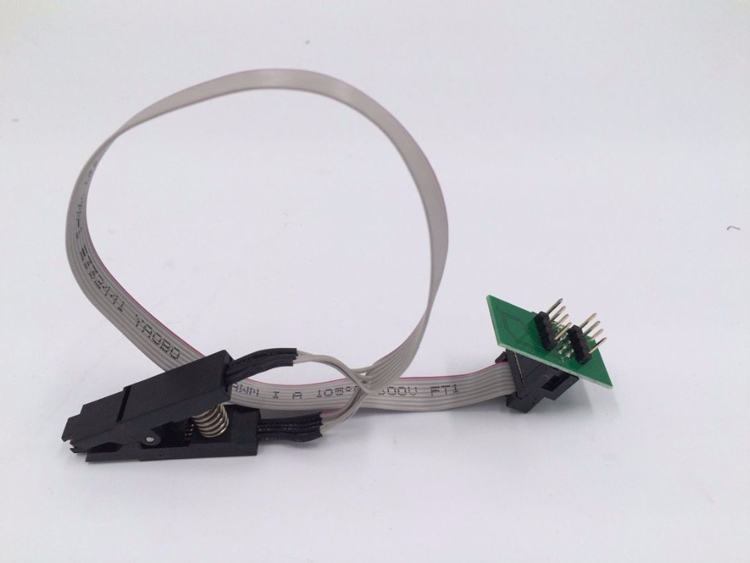

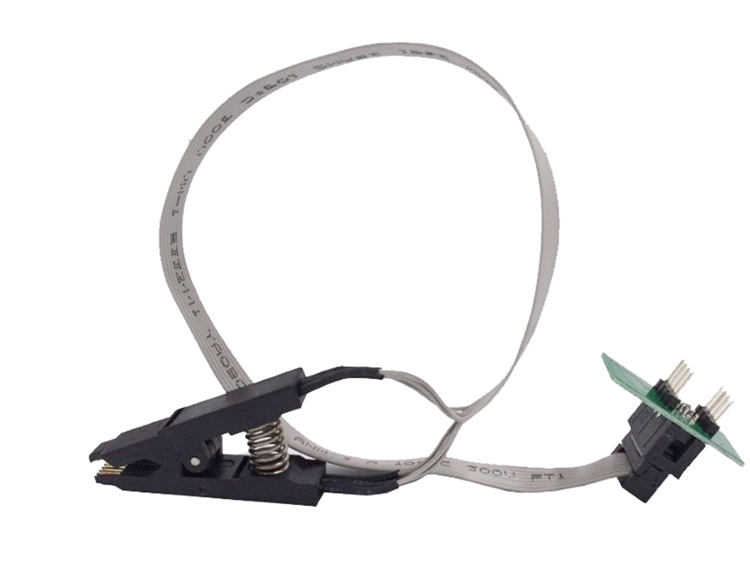

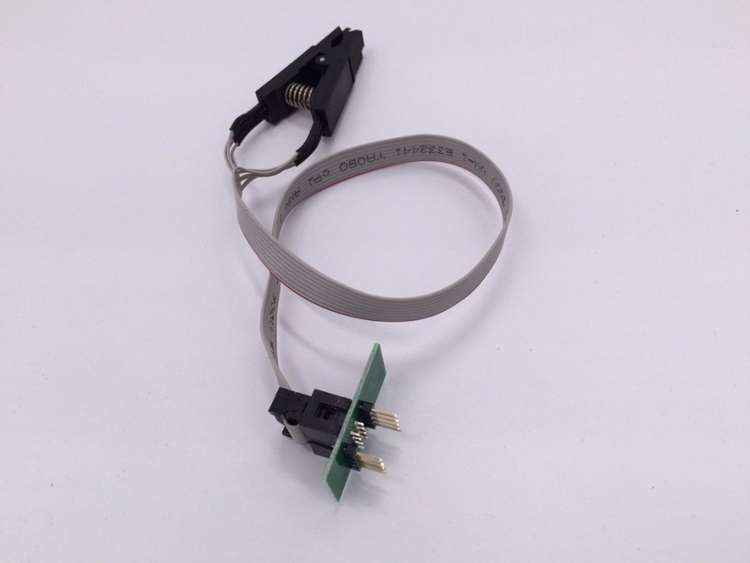

SOIC8 SOP8 Clip DIP8
SOIC8 SOP8 Clip DIP8 in-circuit programming SPI flash EEPROM 93CXX/25CXX/24CXX on ...
Product features
-

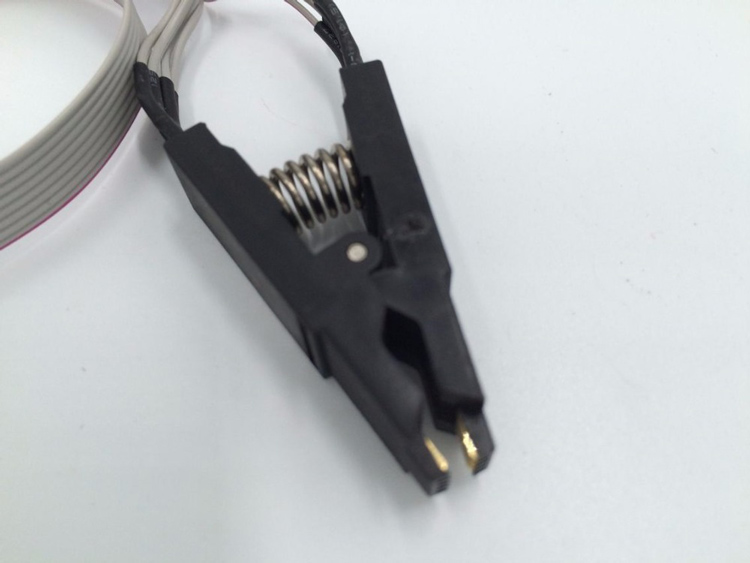

Beryllium copper plating needle, without welding, can be directly inserted -
SOP8 SOIC8 eSOP8 VVSOP8 SO8 Clip DIP8 for in-circuit programming For EEPROM 93CXX/25CXX/24CXX on ZIP USB Programmer TL866 EZP2010 RT809H CH341A -
TEST CLIP: SOP8 SOIC8 eSOP8 VVSOP8 SO8 -

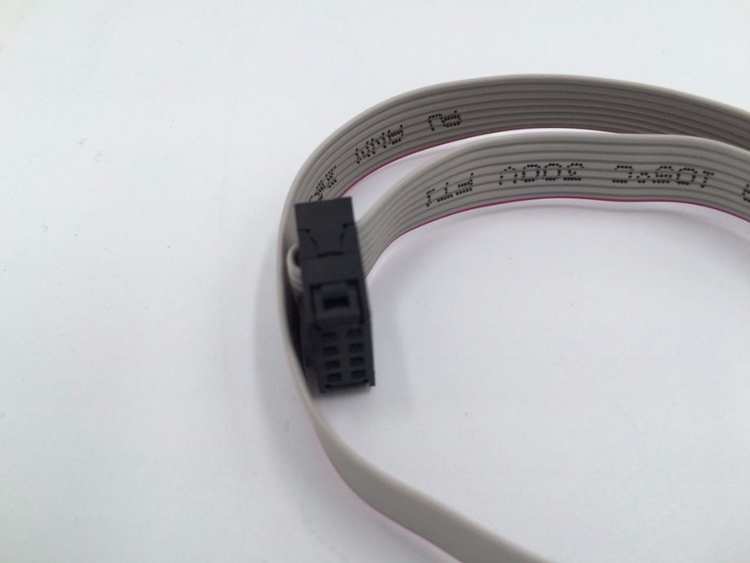

Connector type: Straight with wire -
Test Clip Pin format: SOIC8 SOP8 matrix -
Now many of the main board, routing, set-top boxes, LCD, game consoles, etc.
EPROM Chip is SOP8,8 pin IC package, welding on the circuit board.
In order to programming the update to the chip，you need to remove the Chip, and to purchase corresponding programming socket,that is a lot of trouble.
At the same time, removing chips are easy to damage the chip, even if removed and programmed all good, and welded back to the motherboard,with welding high temperature,that is easy to damage the chip or lead to data loss,then it will damage to the motherboard.
Because of this, we have introduced this Non removing IC SOP8 clip with in circuit programming , this product delete the welding process.
With this universal programming clip (for SOP8 package 1.27mm pitch IC pin) can be programming
BIOS more simple and more efficient.

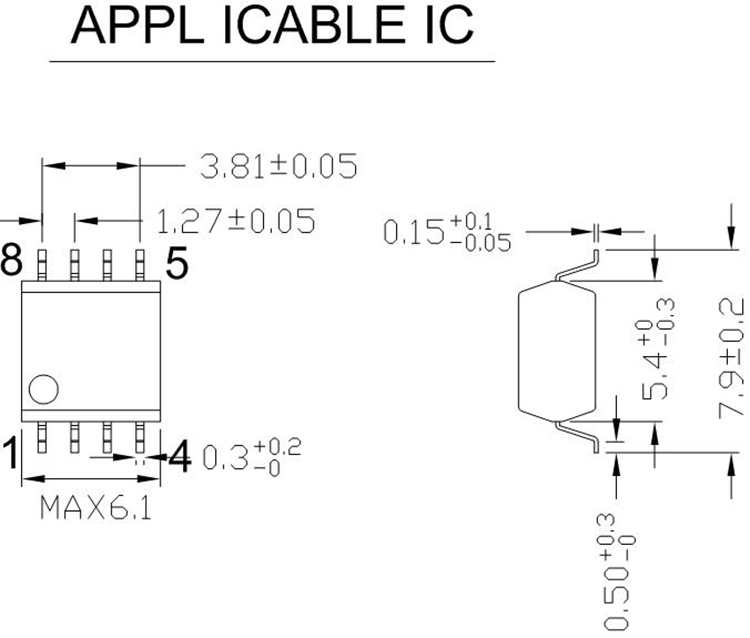

Application IC package
-
SOP8 SOIC8 eSOP8 VVSOP8 SO8-1.27 -
Application of field(need to work with the programmer): -
WIFI / BIOS SOP8 IC programming , -
series / parallel (ISA) NOR flash SOP8 IC Programming -
F-RAM SOIC8 IC programming , -
nv SRAM SOIC8 programming , -
LED driver programming eSOP IC, -
EEPROM programming, -
SPI flash NAND Chip programming
