SOP16 (16)-1.27 burn in socket
SOP16 150mil Programming Socket OTS-16-1.27-03 IC Test Socket Conversion Block Programmer Adapter Plug
Product Features
-
1.Use double contact technology , contact more stable , -
2.The socket shell use special engineering plastic , high strength , long mechanical life , -
3.The shapnel use import beryllium copper , small impedance , good flexibility , -
4.Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
Product performance :
-
1. Material : -
Insulator , PEI , PPS -
Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50) -
2. Electrical Specification : -
Insulation resistance : 1000m Min,At DC 500V -
Voltage resistance : voltage resistance -
Contact resistance : exceed 25m -
PIN feet stretch : 55g/PIN(Normal) -
Mechanical life : 50000Times -
Operating temperature : Minus 65 degree to 55 degress -
Operating force : exceed 0.9kg Max
Specification and Dimension
| Type | SOP 16-1.27 |
| Pin pitch | 1.27 mm |
| Pin Count | 16 |
| Applicable IC body width | 3.9mm |
| Thoery life | 20,000 times(Mechanical) |
| ANDK Operating Temperature | -55℃~+175 ℃ |

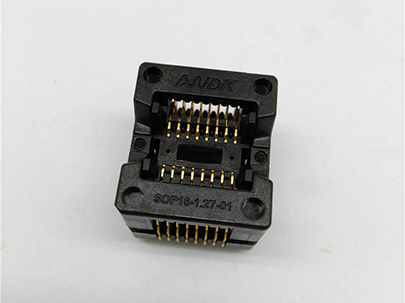

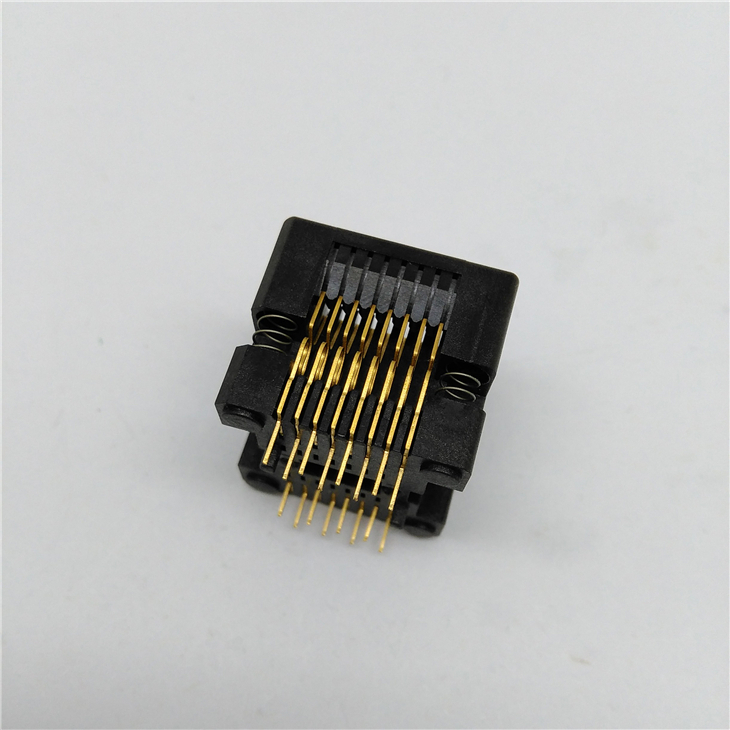

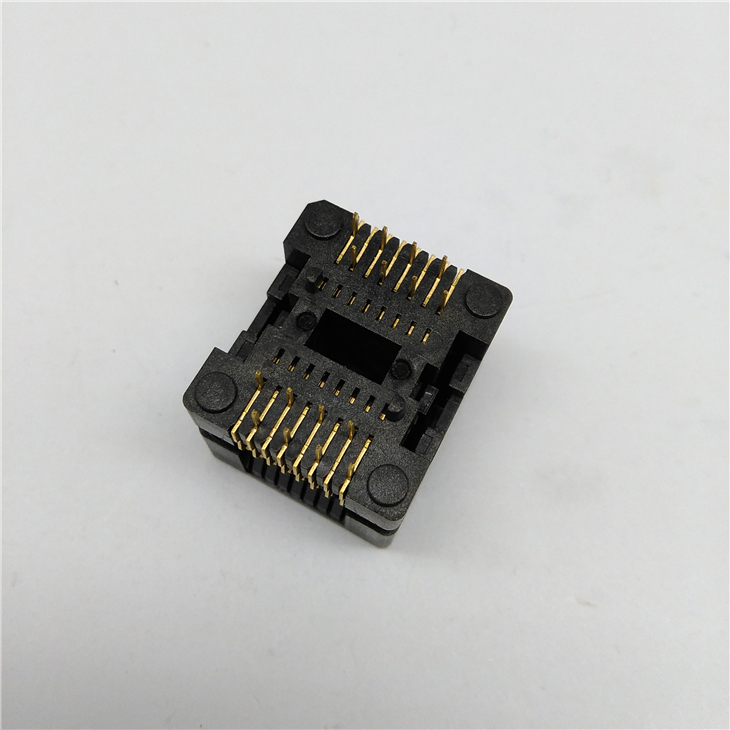

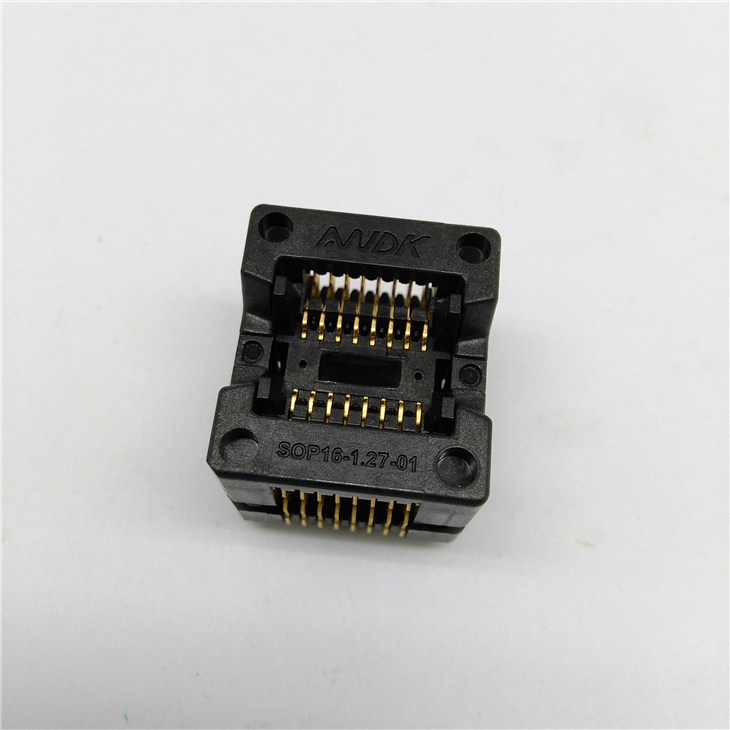

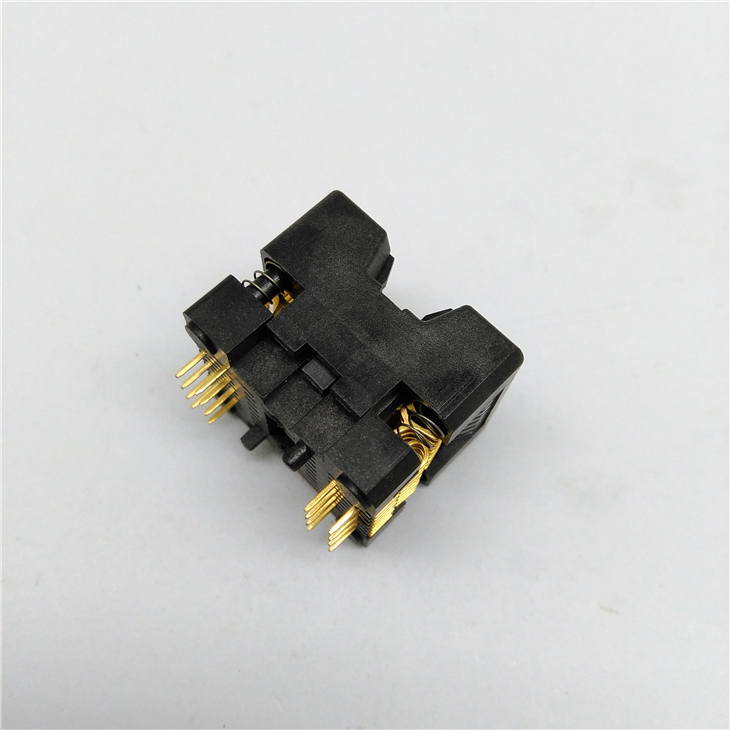

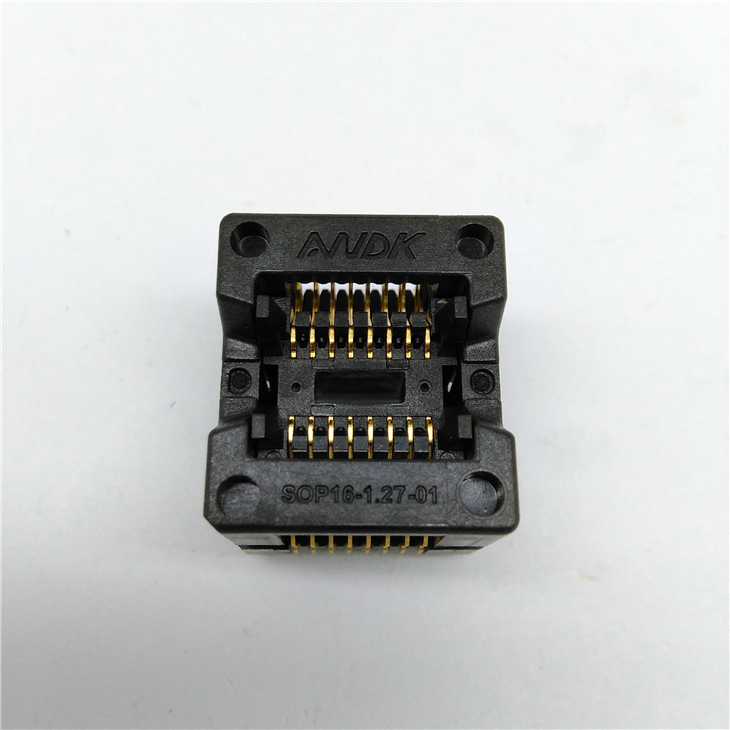

Product image
