SOP16 (20)-1.27 programming adapter
SOP16 SOIC16 SO16 to DIP16 Programming Socket Pitch 1.27mm IC Body Width 5.4mm 209mil Test Socket Adapter
Product Features
-
1.100% brand new , high Quality and duarable -
2.Tested before shipping -
3.Easy to use -
4.Technical support and datasheet are available if you need -
5.we are the original manufacturer and welcome anyone to be our distribution agents -
6.Professional manufacturer in all kinds of IC chip testing sockets and adapters. -
7.More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .Specification and Dimension
SPECIFICATION AND DIMENSION
| Type | Test & Programming Socket ( with pcb ) |
| Package | SOP 16 , SOIC 16 , SO 16 |
| Pin pitch | 1.27 mm |
| Pin Count | 16 pins |

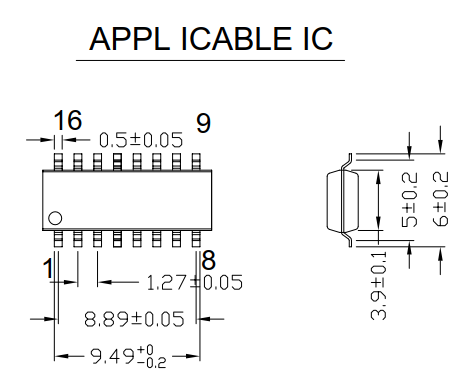

| Applicable IC body width | 5.4mm ( 209mil ) |
| Thoery life | 20,000 times(Mechanical) |
| HMILU Thoery life | 5,000 times(Mechanical) |
| ANDK Operating Temperature | -55~+175 |

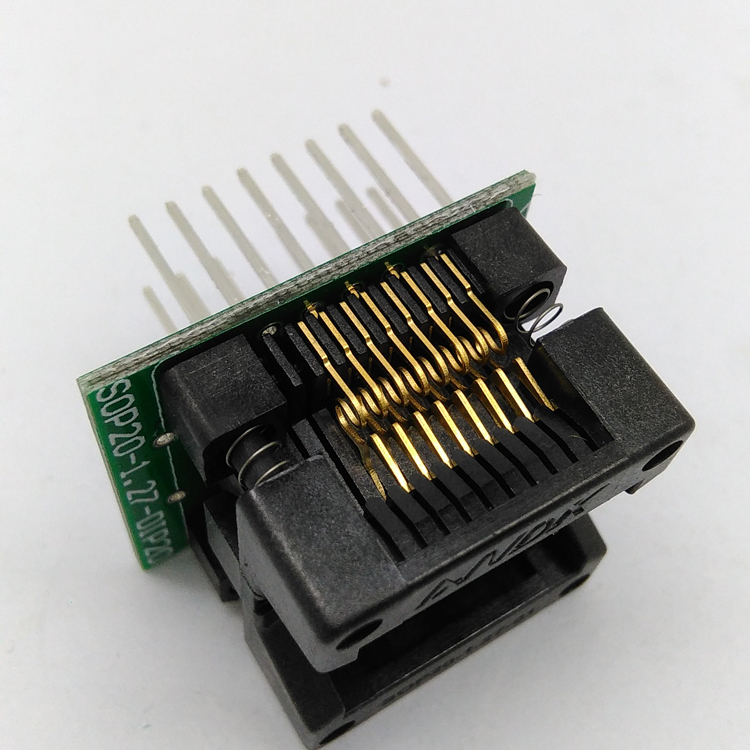

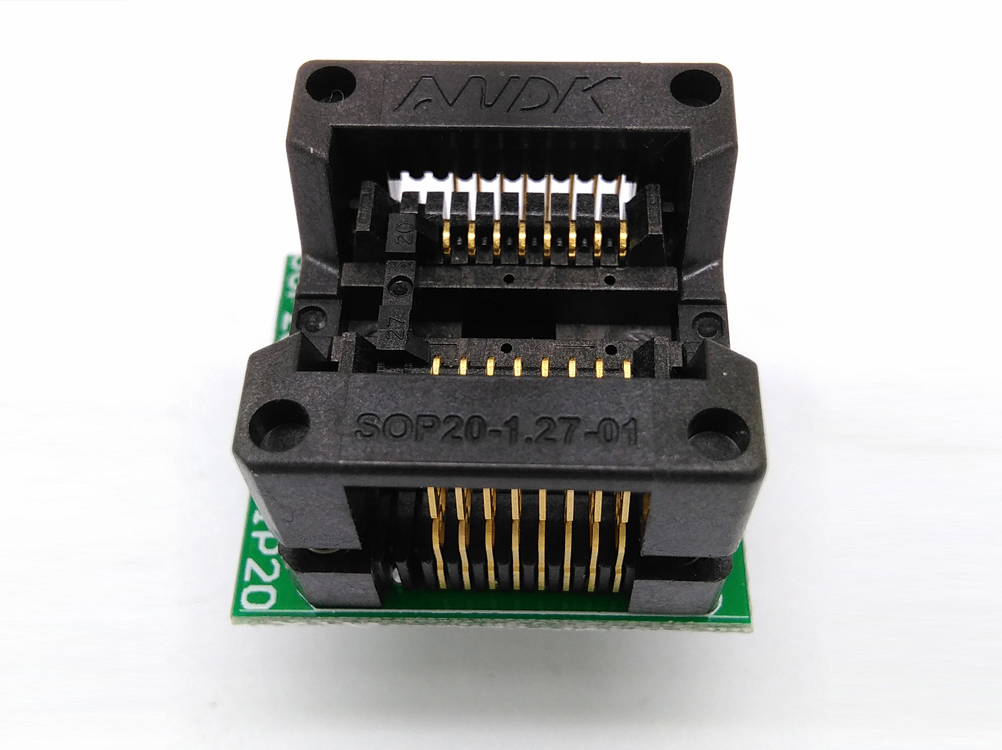

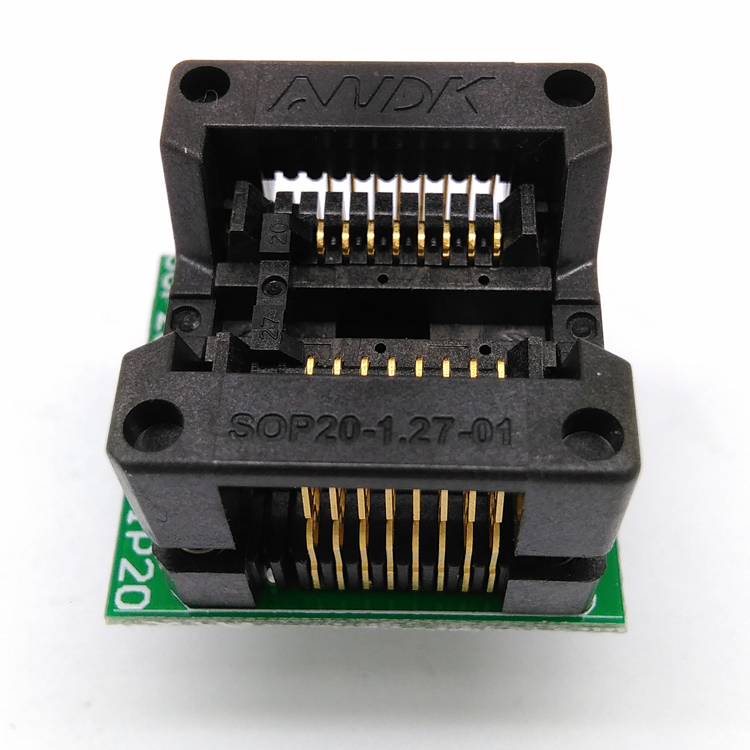

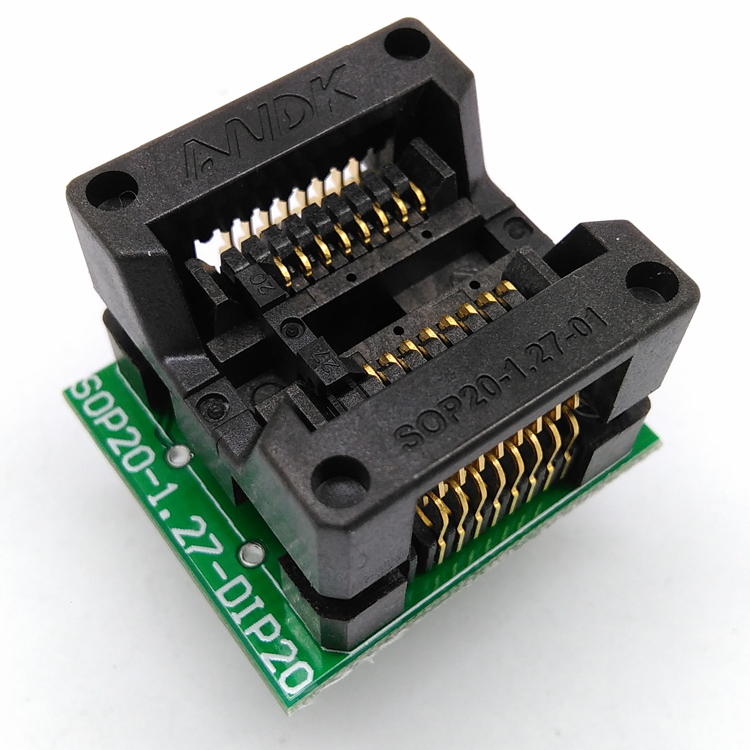

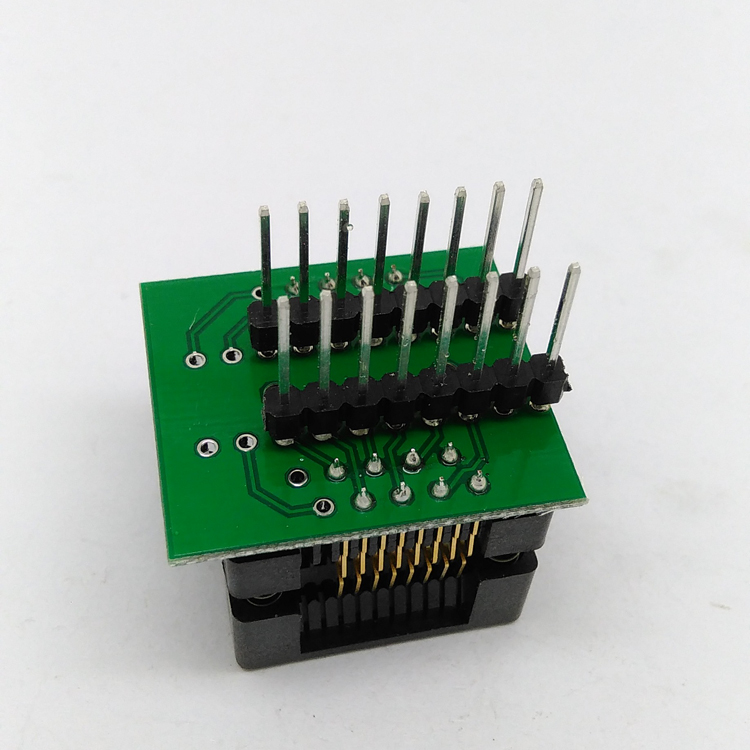

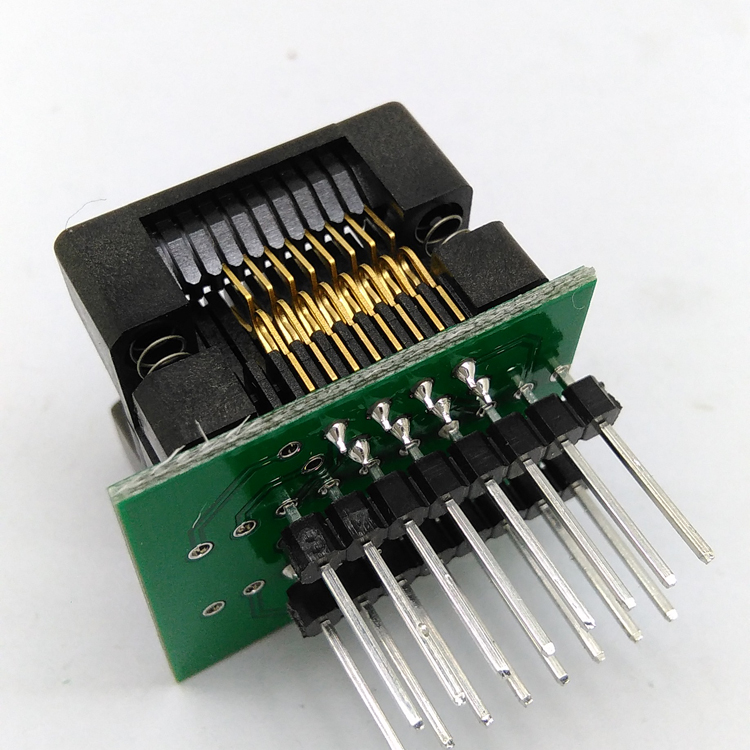

Product image
