SOP16(28)-1.27mm burn in socket
SOP16 SOIC16 SO16 Burn in Socket Pitch 1.27mm 300mil IC Body Width 7.5mm Test Socket Adapter
Product features
-
1. 100% brand new , high Quality and duarable -
2. Tested before shipping -
3. Easy to use -
4.Technical support and datasheet are available if you need . -
5.we are the original manufacturer and welcome anyone to be our distribution agents -
6.Professional manufacturer in all kinds of IC chip testing sockets and adapters. -
More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

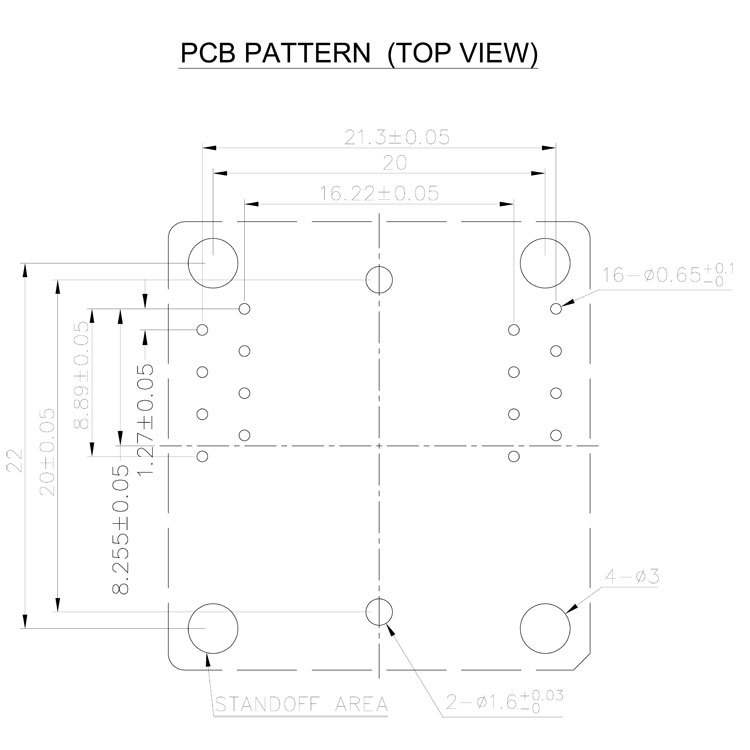

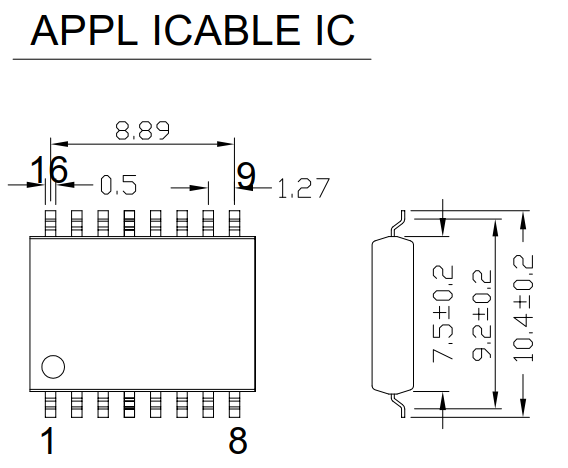

Specification and Dimension
| Type | Test & Burn in Socket ( without pcb ) |
| Package | SOP 16 , SOIC 16 , SO 16 |
| Pin pitch | 1.27 mm |
| Pin Count | 16 pins |
| Applicable IC body width | 7.5 mm ( 300mil ) |
| Thoery life | 20,000 times(Mechanical) |
| HMILU Thoery life | 5,000 times(Mechanical) |
| ANDK Operating Temperature | -55℃~+175 ℃ |

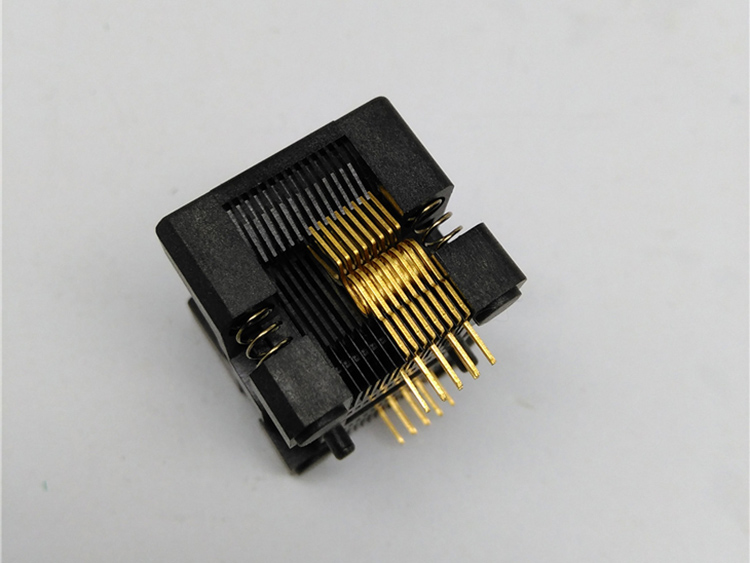

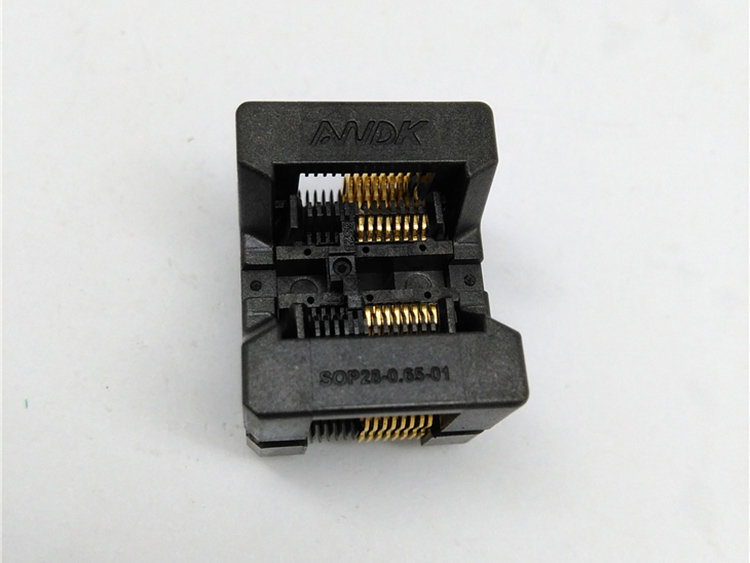

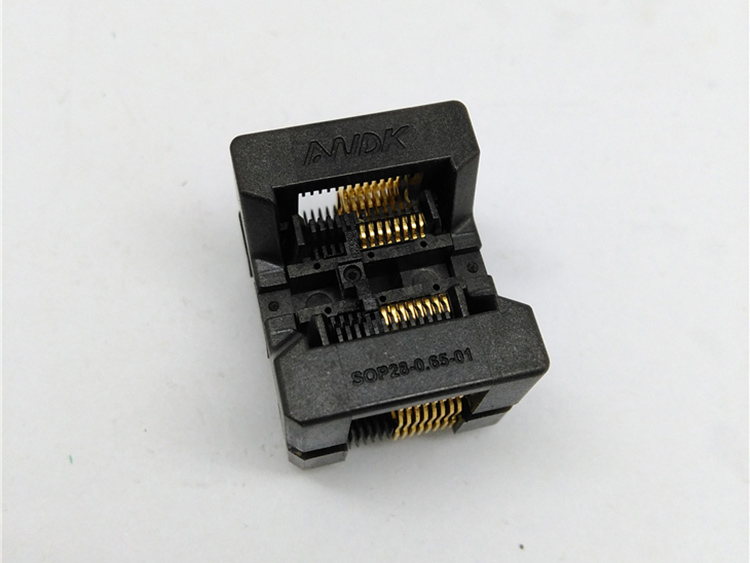

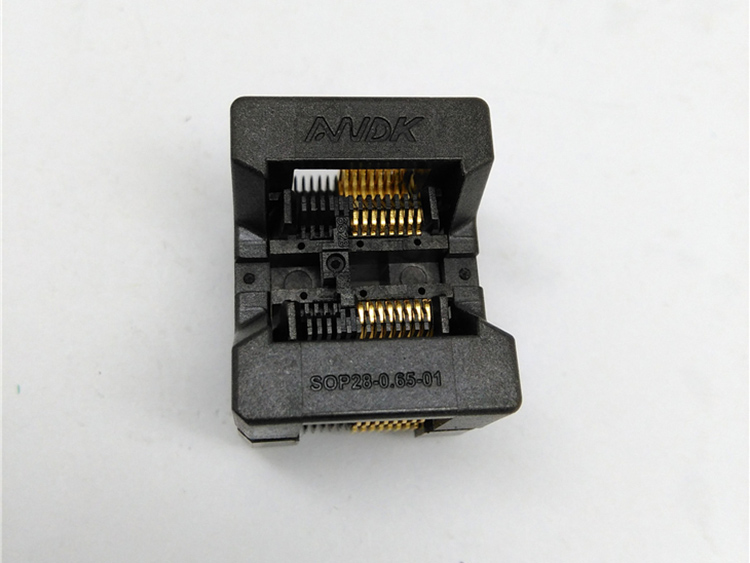

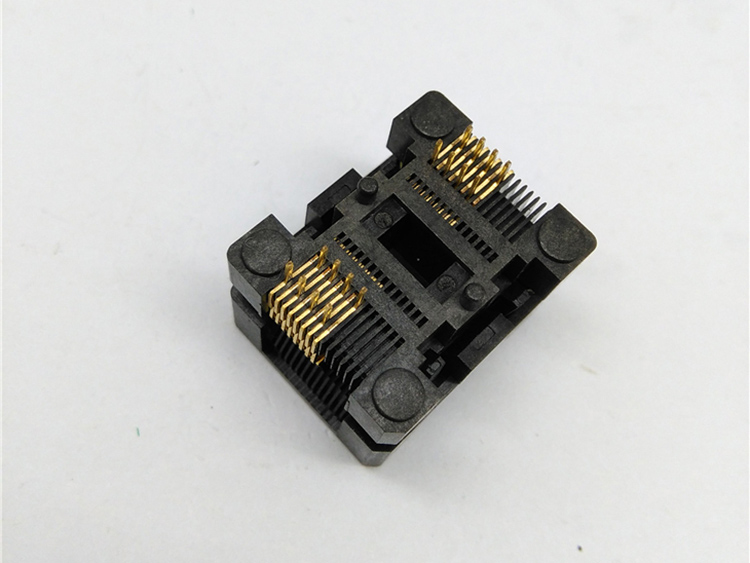

Product image
