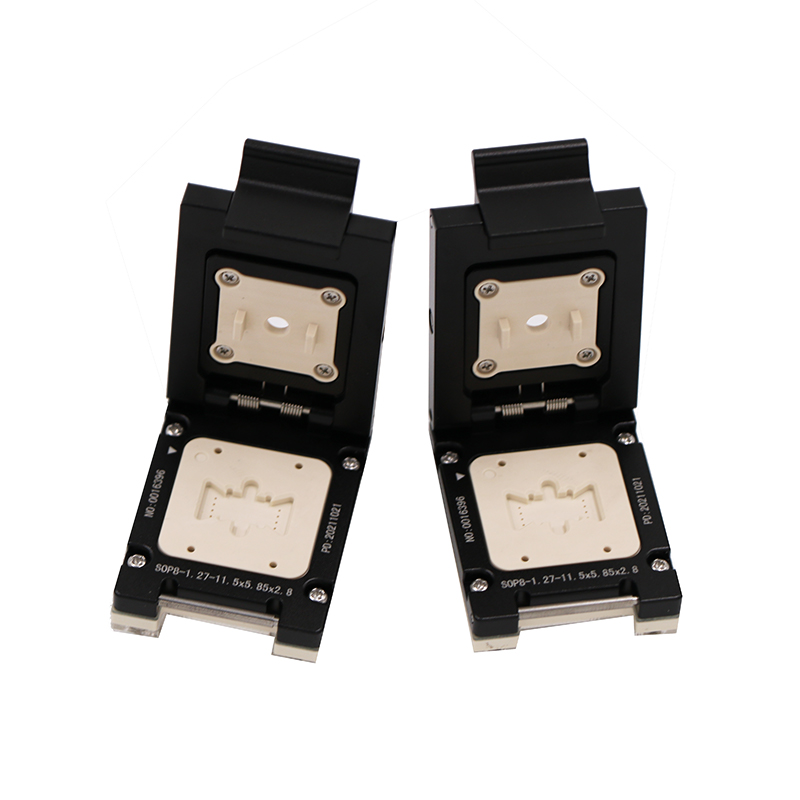

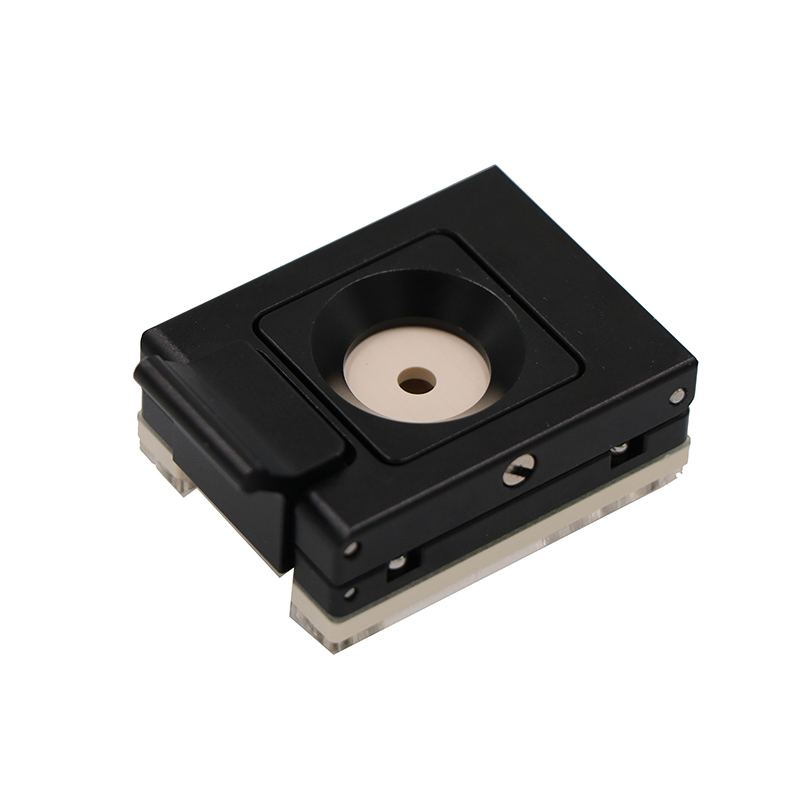

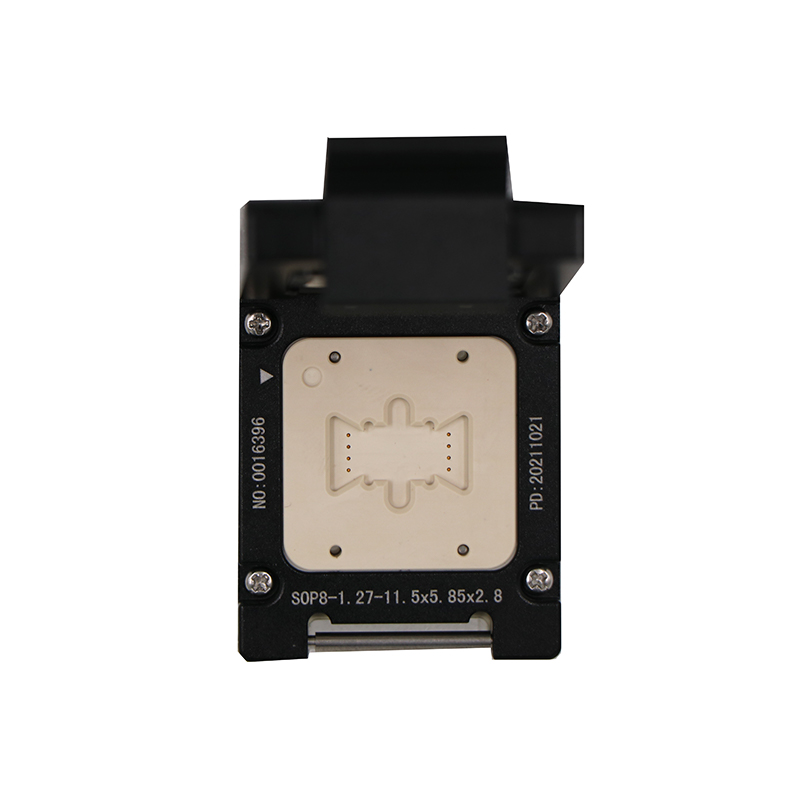

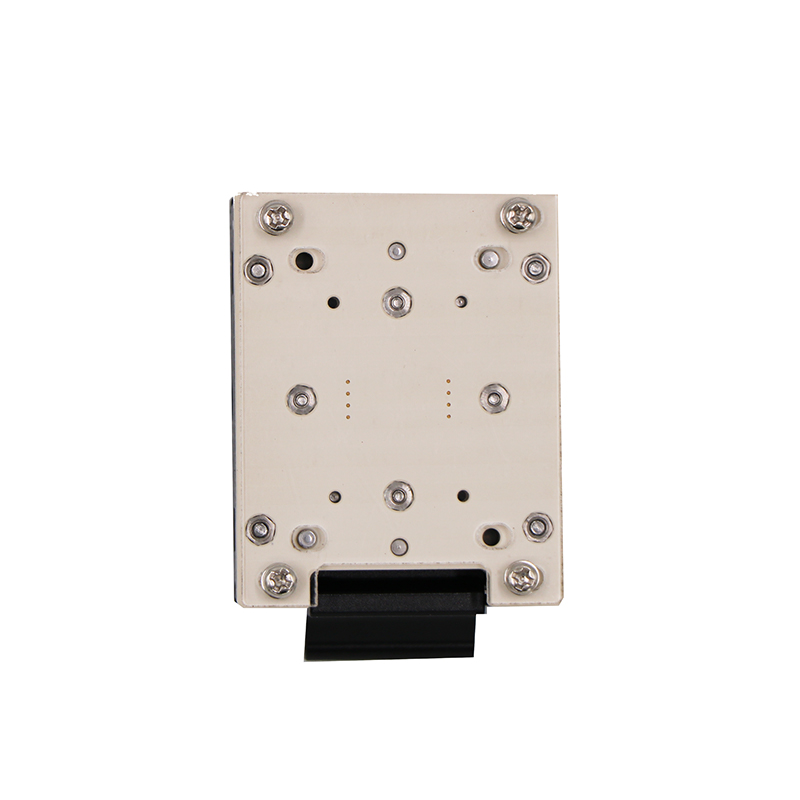

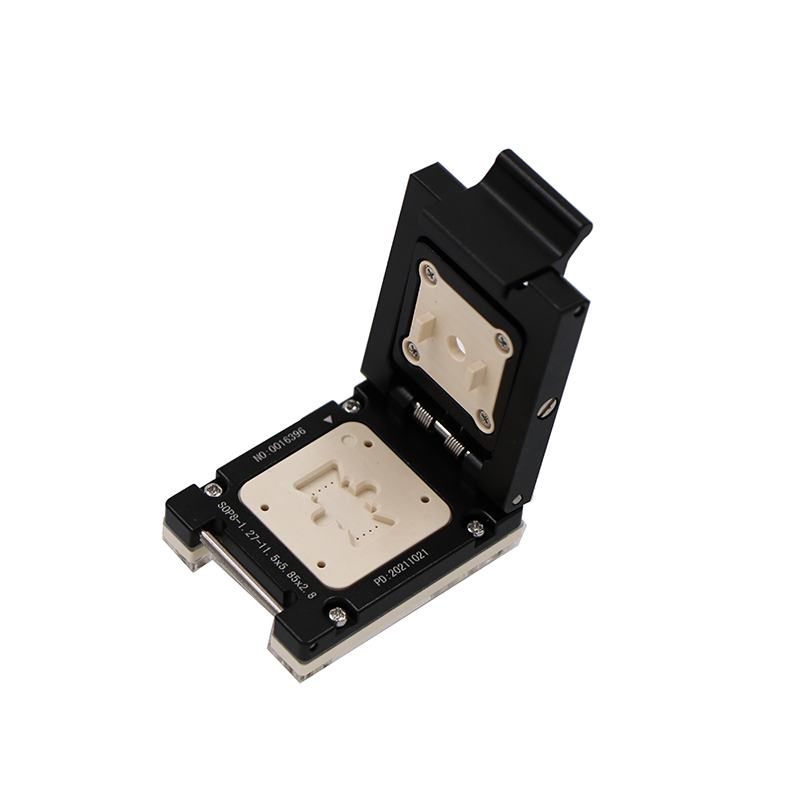

SOP8-1.27-11.5×7.5 burn in socket
SOP8-1.27-11.5×7.5 burn in socket
SPECIFICATION AND DIMENSION
| Type | SOP8 1.27 11.5*7.5 burn in test socket |
| Package | SOP special package |
| Pin Pitch | 1.27 mm |
| Pin Count | 8 pins |
| Applicable IC body size | 11.5*7.5mm |
| Product description |
customized socket |
①Structure: flip type;
② Shell material: aluminum alloy;
③Contact method and material: double-ended probe, beryllium copper gold-plated;
④Material of core components: peek ceramics;
⑤ Rated current: 1A;
⑥Operating pressure: 30g, the more PINs, the greater the pressure;
⑦Contact resistance: <100mΩ;
⑧ Ambient temperature: -55℃~175℃≤85%rh;
⑨Mechanical life: 100000;
