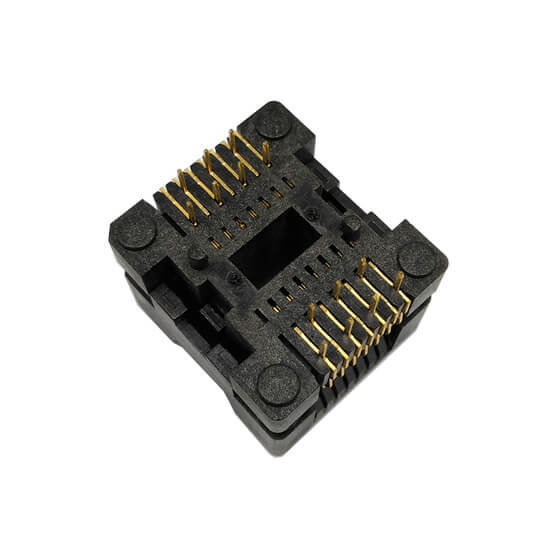

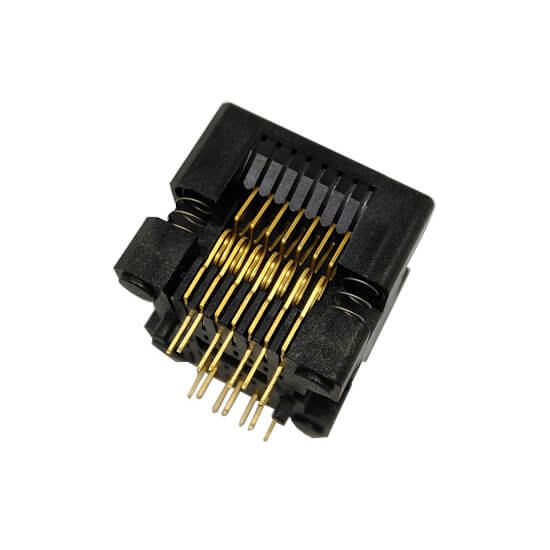

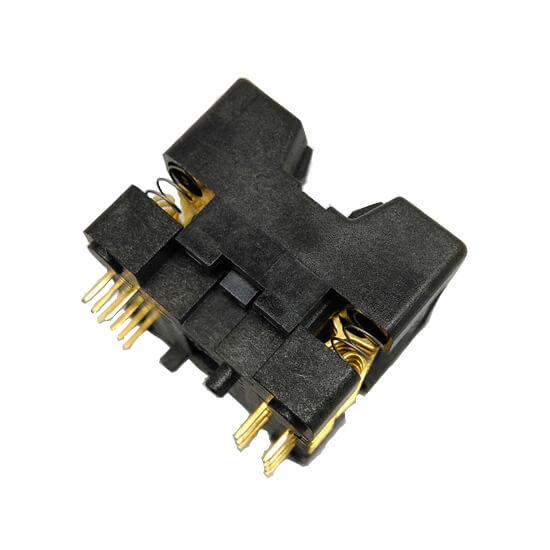

SOP8 209mil burn in socket
SOP8 IC Test Socket 209mil OTS-20-1.27-01 Burn in Socket Conversion Block Connector Programmer Adapter
PRODUCT FEATURE
-
1. Use double contact technology,contact more stable; -
2. The socket shell use special engineering plastic,high strength,long mechanical?life; -
3. The shapnel use import beryllium copper,small impedance,good flexibility; -
4. Coating with ticken gold plating layer,contact ticken electroplate,lowest contact resistance,high reliability.
PRODUCT PERFORMANCE
Material:
-
1.Insulator,PEI,PPS; -
2. Shrapnel,beryllium copper Be Cu Gold plating(30) Over Nickel plating(50).
ELECTRICAL SPECIFICATION
| Insulation resistance | 1000m Min,At DC 500V |
| Voltage resistance | voltage resistance |
| Contact resistance | exceed 25m |
| PIN feet stretch | 55g/PIN(Normal) |
| Mechanical life | 50000Times |
| Operating temperature | Minus 65 degree to 55 degress |
| Operating force | exceed 0.9kg Max |

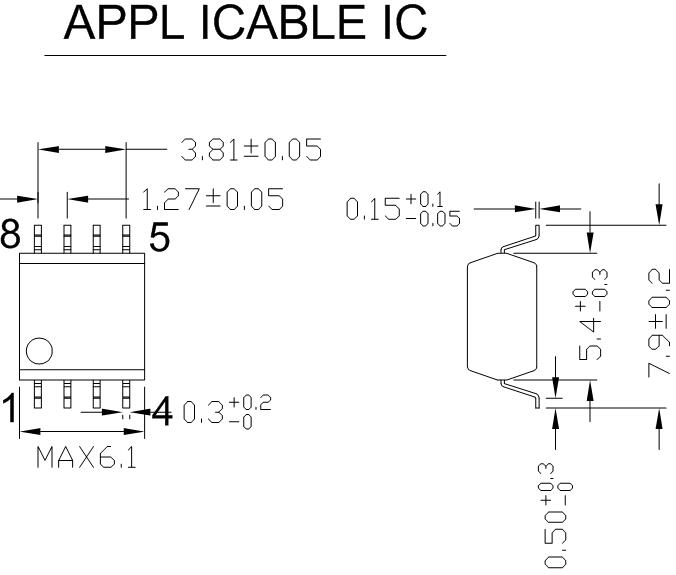

SPECIFICATION AND DIMENSION
| Type | OTS-20-1.27-01 |
| Pin pitch | 1.27mm (209mil) |
| Pin Count | 8 |
| Applicable IC body width | 5.4mm |
|
Thoery life 20,000 times(Mechanical) Operating Temperature -55℃~+175 ℃ |
|
