SOT23 programming socket
SOT23-5-0.95 Clamshell Pogo Pin Probe Test Socket SOT23-5-0.95-CP01PNL Programming Socket Pitch 0.95 Chip Size 1.6*3mm
1.Product Usage : programming socket , test socket , burn in and test for chip SOT23-5;
2. Applicable Package : SOT23-5 , pin pitch 0.95mm
1.Product Usage : programming socket , test socket , burn in and test for chip SOT23-5;
2. Applicable Package : SOT23-5 , pin pitch 0.95mm
parameter
| Type | SOT23-5-0.95 |
| Pin pitch | 0.95 mm |
| Pin Count | 5 |
| Applicable IC Body Dimension | 1.6*3 mm |
PRODUCT FEATURES
-
-
Small spacing
minimum pitch of 0.2mm
-
-
test accuracy
The test is accurate and the error rate is 0.001 %
-
-
High temperature
high temperature: 175 ℃, low temperature: -55 ℃
-
-
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands

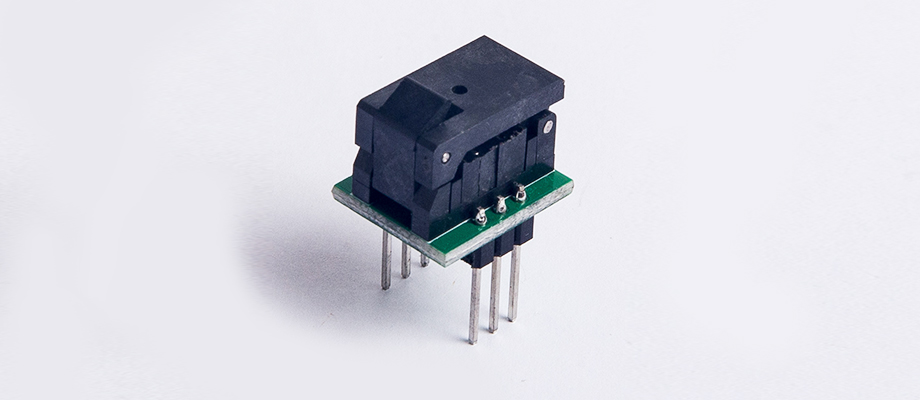

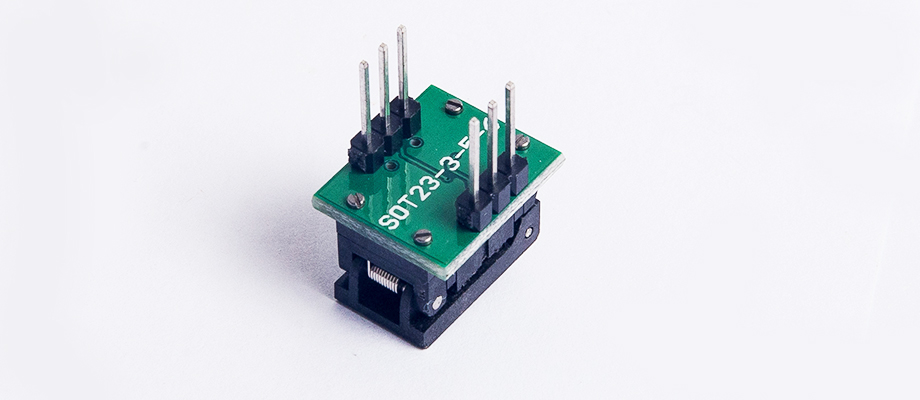

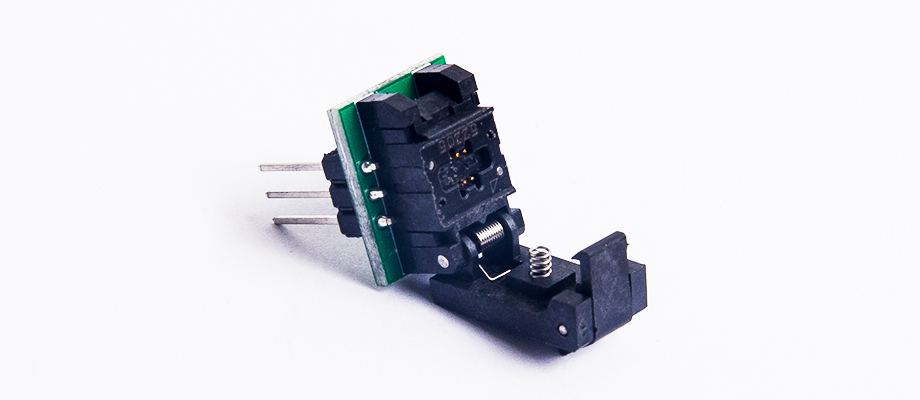

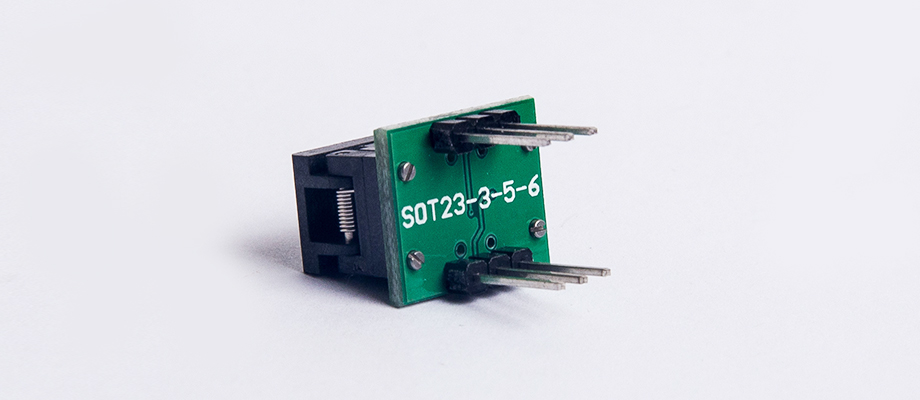

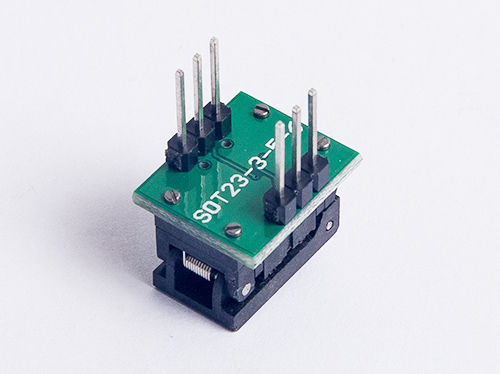

Product image
