SSOP20(28)-0.65 Programming Socket
OTS-28-0.65-01 SSOP20 TSSOP20 DIP20 Programming Socket IC Test Socket Programmer Adapter Shrapnel Socket Convertor Conector
Product features
-
1. Use double contact technology , contact more stable; -
2. The socket shell use special engineering plastic , high strength , long mechanical life ; -
3. The shapnel use import beryllium copper , small impedance , good flexibility ; -
4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .
Product performance :
1. Material :
a) Insulator , PEI , PPS
b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)
2. Electrical Specification :
a) Insulation resistance : 1000m Min,At DC 500V
b) Voltage resistance : voltage resistance
c) Contact resistance : exceed 25m
d) PIN feet stretch : 55g/PIN(Normal)
e) Mechanical life : 25000Times
f) Operating temperature : Minus 65 degree to 55 degress
g) Operating force : exceed 0.9kg Max
Specification and Dimension
| Type | SOP 20 (24)-0.65 |
| Pin pitch | 0.65mm |
| Pin Count | 20 |
| Product description | SSOP 20 TSSOP 20 DIP 20 Programming Socket IC Test Socket Programmer Adapter Shrapnel Soc... |

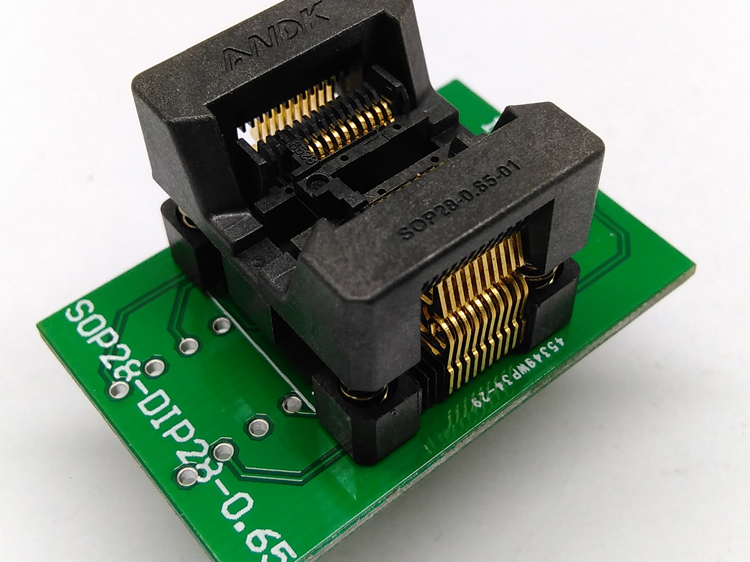

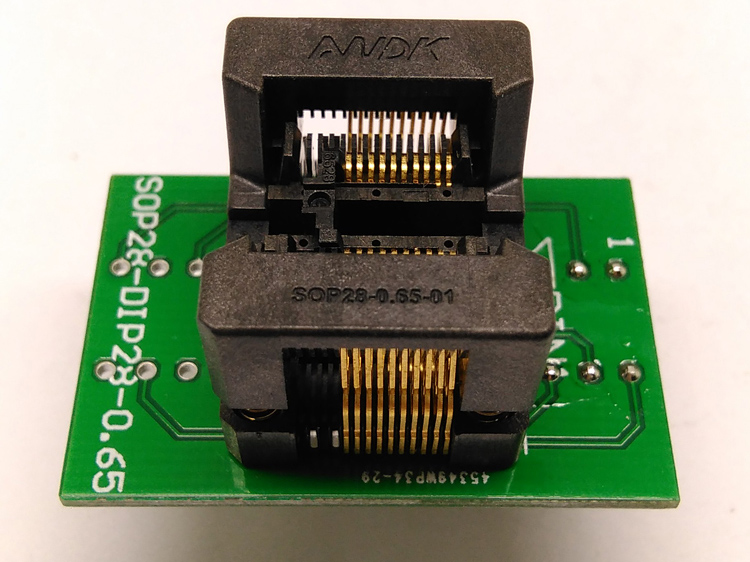

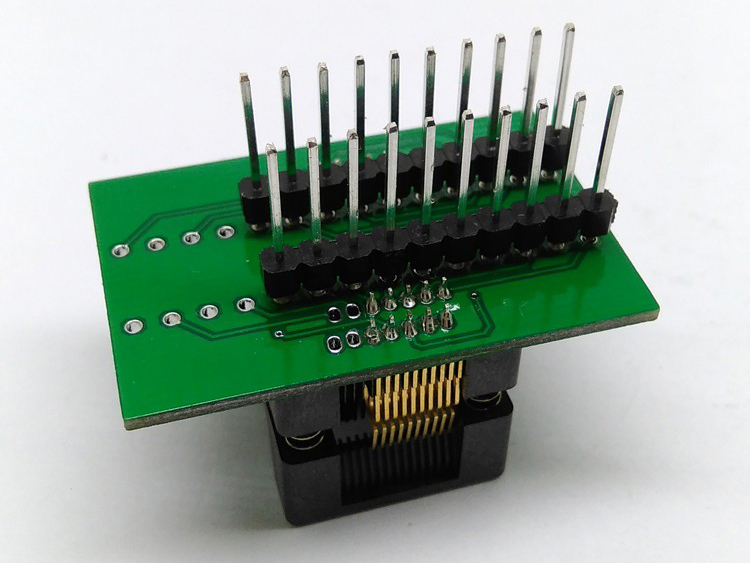

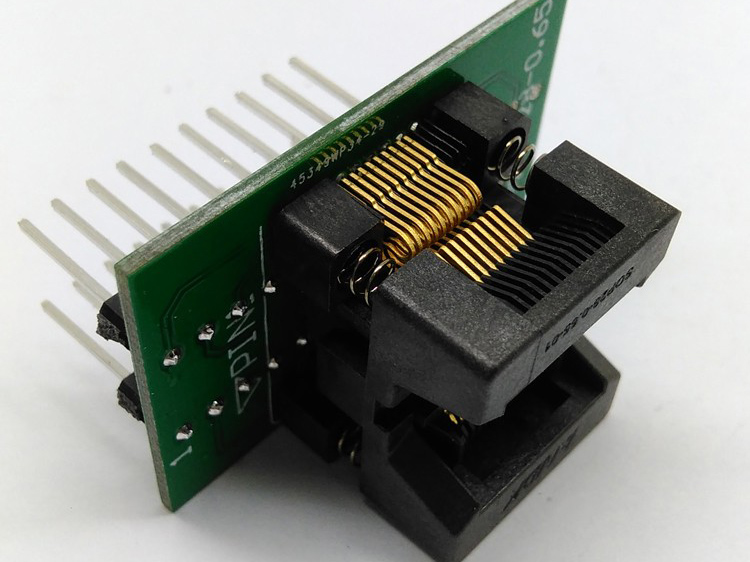

Product image
