TQFP44 FQFP44 QFP44 to DIP44 Double-Board Programming Socket

TQFP44 FQFP44 QFP44 to DIP44 Double-Board Programming Socket OTQ-44-0.8-14 Pitch 0.8mm IC Body Size 10x10mm Test Adapter
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

Product Feature:


  • 100% brand new , high Quality and duarable

  • Tested before shipping

  • Easy to use

  • Technical support and datasheet are available if you need .

  • we are the original manufacturer and welcome anyone to be our distribution agents

  • Professional manufacturer in all kinds of IC chip testing sockets and adapters.

  • More types of sockets and adapters for eMMC , eMCP , SOP , SSOP , TSSOP , QFP , QFN , BGA , SOT , MSOP , DFN and customize design , for customized socket and more product detail , please feel free to contact us .

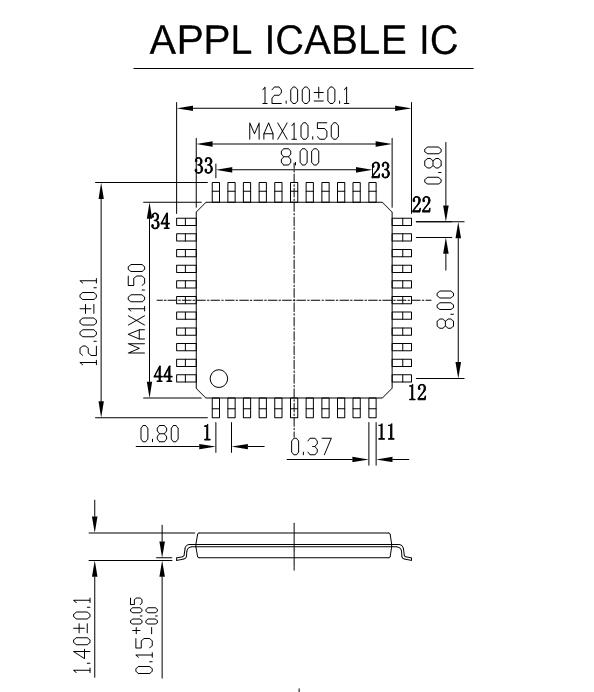

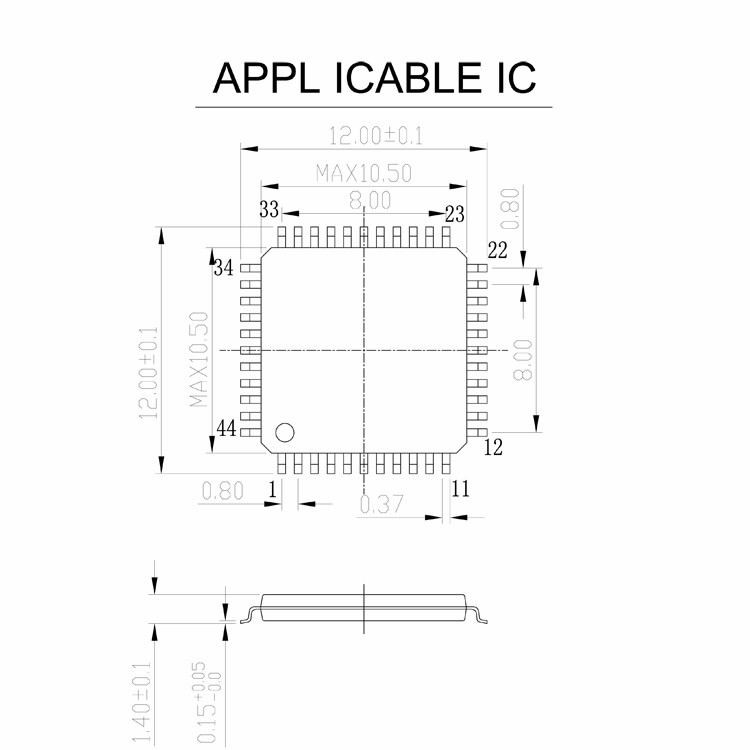

Specification and Dimension :


  • *Type : Test & Programming Socket ( with pcb )
    * Package : QFP44 , TQFP44 , LQFP44
    * Pin Pitch : 0.8 mm
    * Pin Count : 44 pins
    * Applicable IC body size : 10x10 mm
    * IC tip-to-tip : 12x12 mm
    * Double-board , can plug in the DIP socket of your programmer directly .

Specification and Dimension

Brand Name: HMILU
Model Number: QFP 44 Test & Programming Socket
Type: Test Programming Socket(with scp)
Package: QFP 44 , TQFP 44 , LQFP 44
Pin Pitch: 0.8 mm
Pin Count 44 pins
Applicable IC body size: 10x10 mm
IC tip-to-tip: 12x12 mm
Structure: Open Top
Life Span: 15,000 times
Model: FPQ-48-0.5-06
Product description: * Type : Test & Programming Socket ( with pcb )
* Package : QFP44 , TQFP44 , LQFP44
* Pin Pitch : 0.8 mm
* Pin Count : 44 pins
* Applicable IC body size : 10x10 mm
* IC tip-to-tip : 12x12 mm
* Double-board , can plug in the DIP socket of your programmer directly
We're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you want batch purchase , please contact us , we can give you a discount .

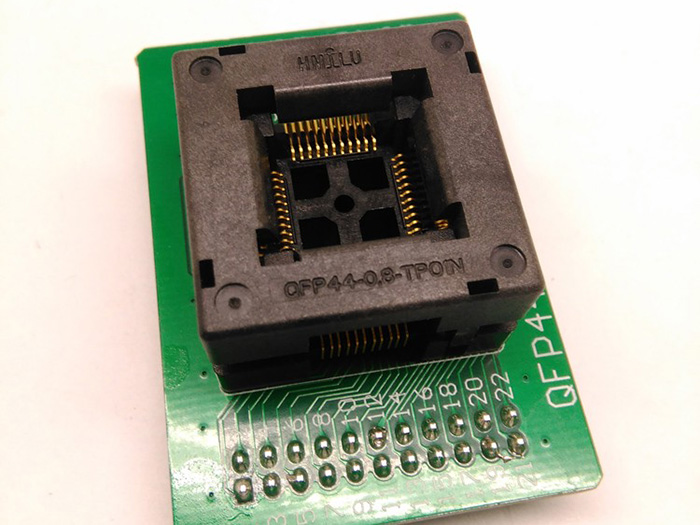

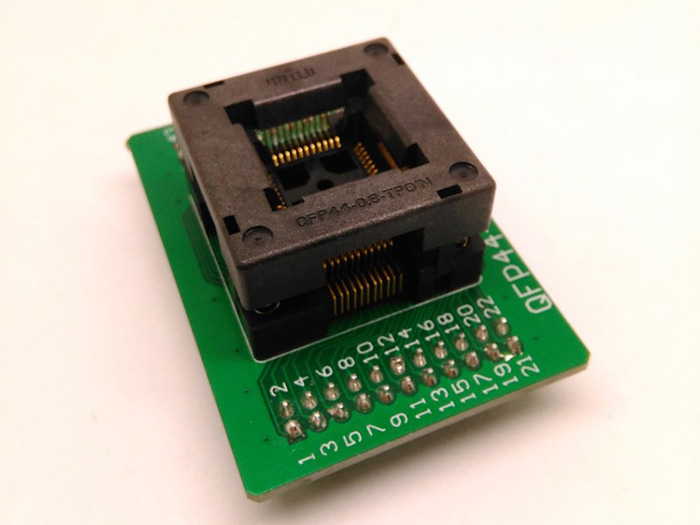

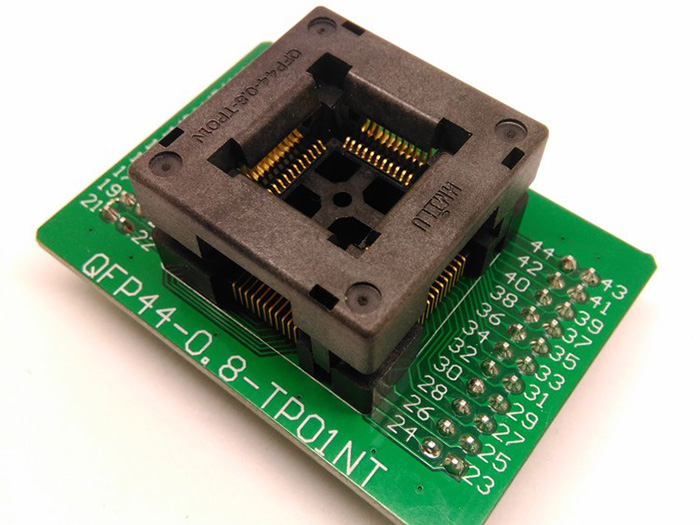

Product image

TQFP44 FQFP44 QFP44 to DIP44 Double-Board Programming Socket

TQFP44 FQFP44 QFP44 to DIP44 Double-Board Programming Socket

TQFP44 FQFP44 QFP44 to DIP44 Double-Board Programming Socket

TQFP44 FQFP44 QFP44 to DIP44 Double-Board Programming Socket

TQFP44 FQFP44 QFP44 to DIP44 Double-Board Programming Socket

TQFP44 FQFP44 QFP44 to DIP44 Double-Board Programming Socket
