TSOP54-0.8 Opentop IC Test Socket
TSOP54-0.8 Opentop IC Test Socket Burn in Socket Programming Socket Adapter Conversion Block High Quality Eletronic Wholesale
Product Feature :
-
1. Use double contact technology , contact more stable , -
2. The socket shell use special engineering plastic , high strength , long mechanical life , -
3. The shapnel use import beryllium copper , small impedance , good flexibility , -
4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .

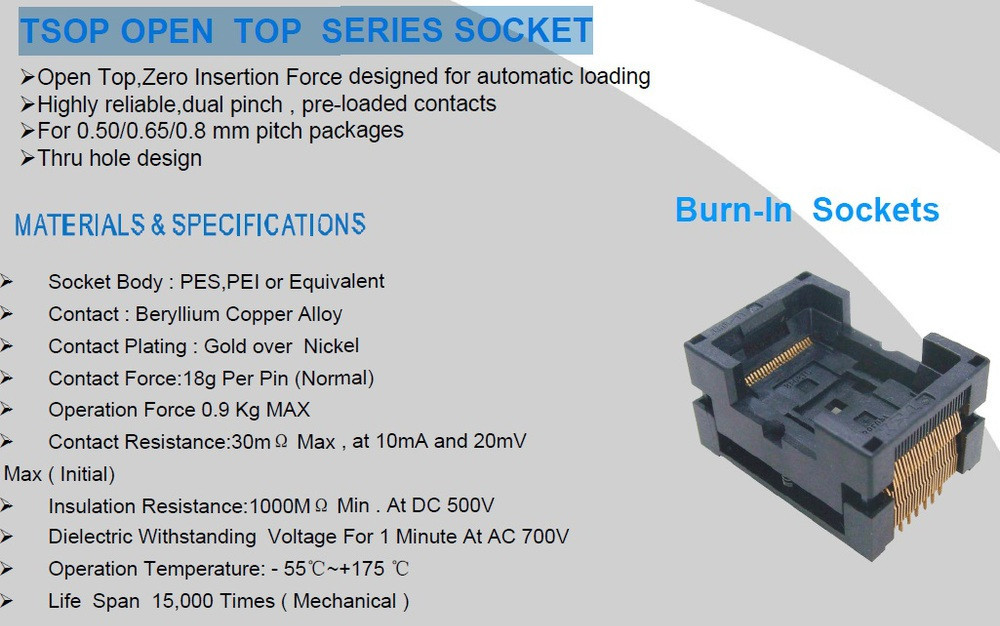

Product performance :
-
1. Material :
a) Insulator , PEI , PPS
b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)
-
2. Electrical Specification :
a) Insulation resistance : 1000m Min,At DC 500V
b) Voltage resistance : voltage resistance
c) Contact resistance : exceed 25m
d) PIN feet stretch : 55g/PIN(Normal)
e) Mechanical life : 100000Times
f) Operating temperature : Minus 65 degree to 55 degress
g) Operating force : exceed 0.9kg Max -

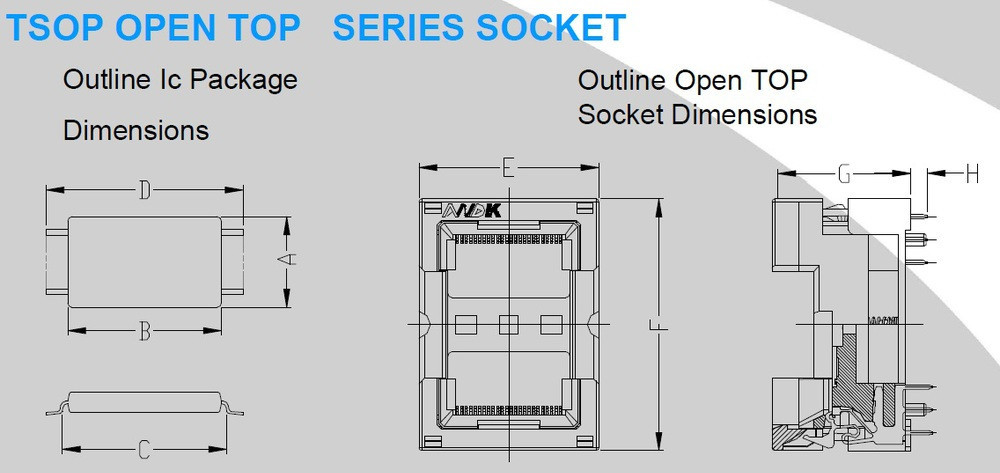

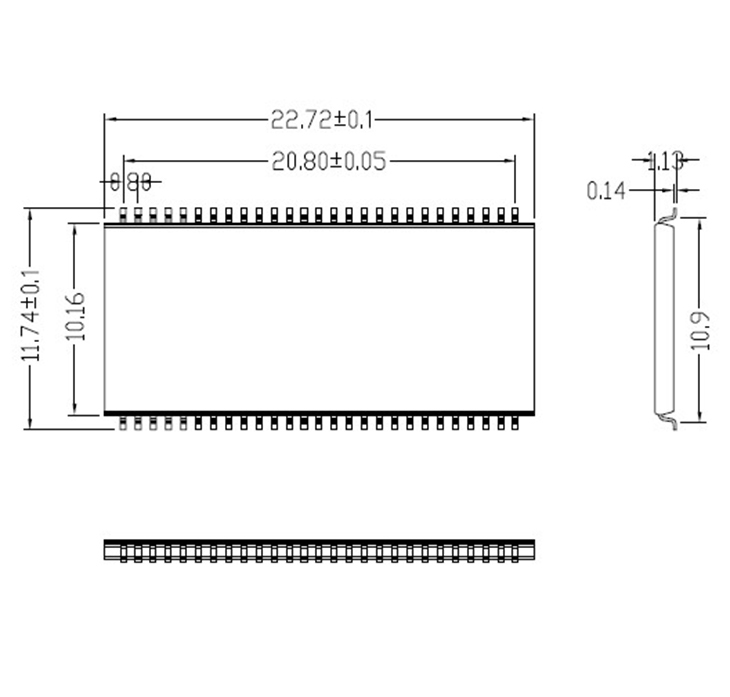

3. Specification :
a) Type : TSOP 54-0.8
b) Pin pitch : 0.8 mm
c) Pin Count : 54
d) Applicable Chip Dimension : 18*22 mm
We're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you want batch purchase , please contact us , we can offer you a more cheaper price !!

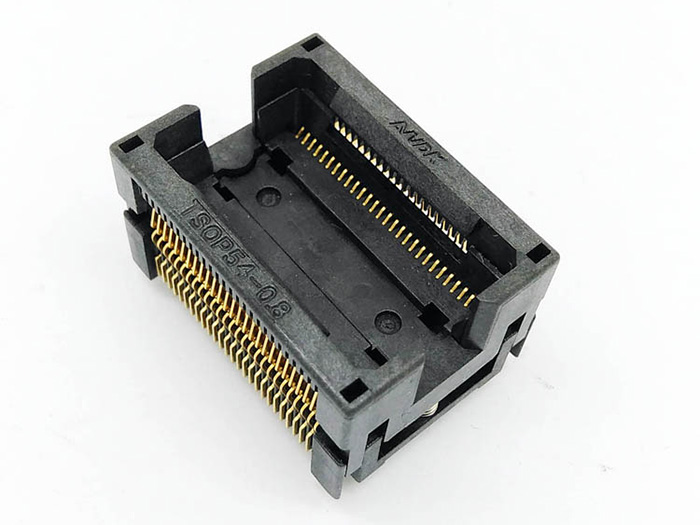

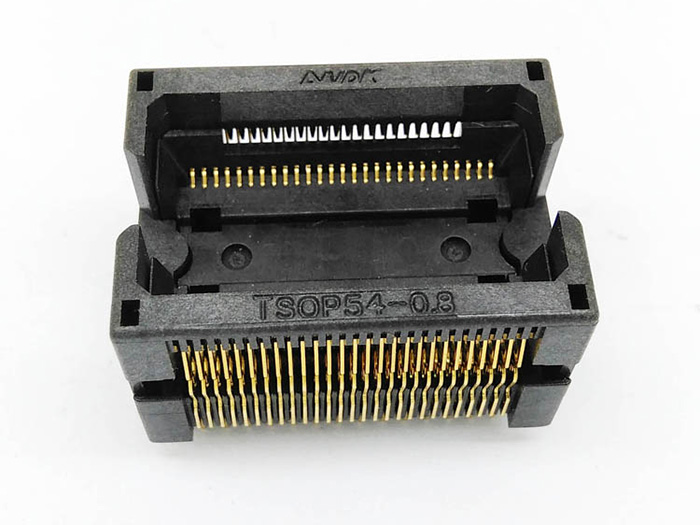

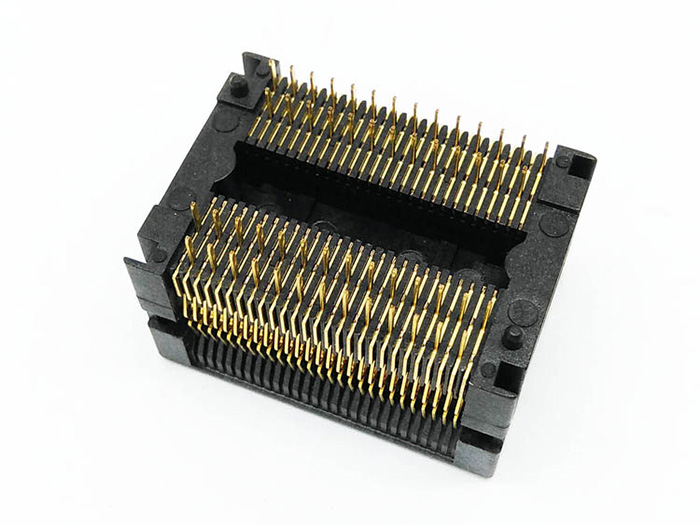

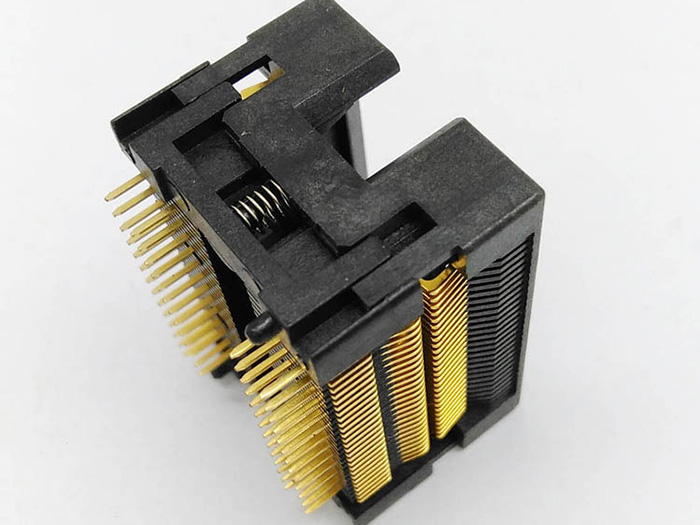

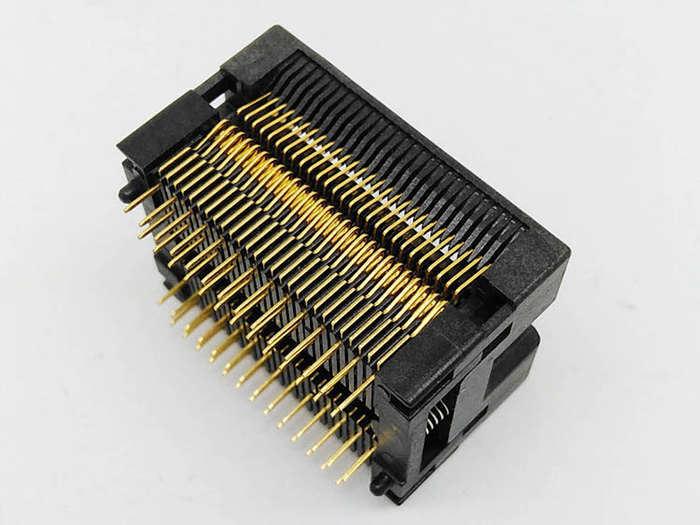

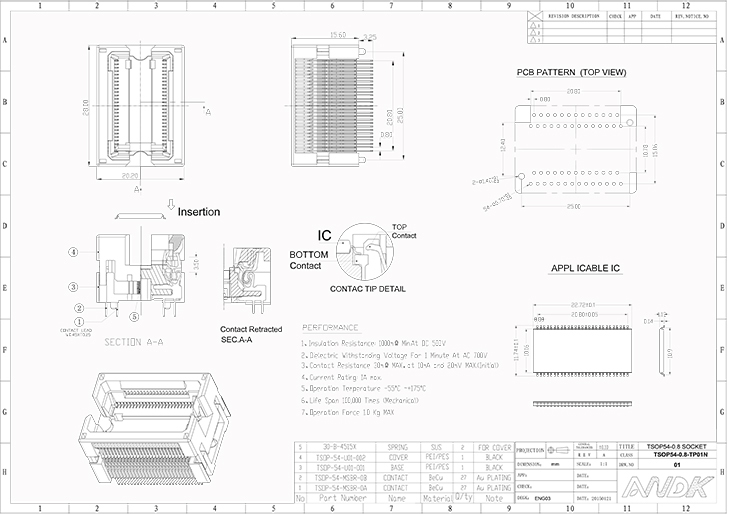

Product image
