TSOP66 Pin Board TSOP66-0.65 Interposer Board 66 pins Receptacle

Marerial:Insulator , PEI , PPS , FR4
Clip:BeCu
Clip eletroplate:Gold plating (10) , Over Nickel Platin...
Outshell:Pbronze
Hotline:+8618824309157 Email:sales@andksocket.com Drawing:Download
advisory

TSOP66 Pin Board TSOP66-0.65 Interposer Board 66 pins Quality Receptacle Pin Adapter Plate Burn in Socket Test Socket Plug pin


Specification :

1.Material :

a) Insulator : PEI , PPS , FR4

b) Clip : BeCu

c) Clip eletroplate : Gold plating (10) , Over Nickel Plating (30)

d) OutShell : Pbronze

e) Outshell eletroplate : Gold plating (10) , Over Nickel Plating (10)


2. Electrical Specification :

a) Voltage resistance : 150VDC/100V RMS

b) Eletricity resistance : 1A

c) Dielectric : Exceed 1000V RMS

d) Contact Resistance : Exceed 30 m


3. Feature :

a) Type : TSOP66-0.65

b) High quality and durable

c) Tested before shipping

d) Easy to use


We're the original manufaturer , we can provide the lowest and competitive price , the shortest processing time is guaranteed ! ! ! If you have any inquiry , please contact us freely .

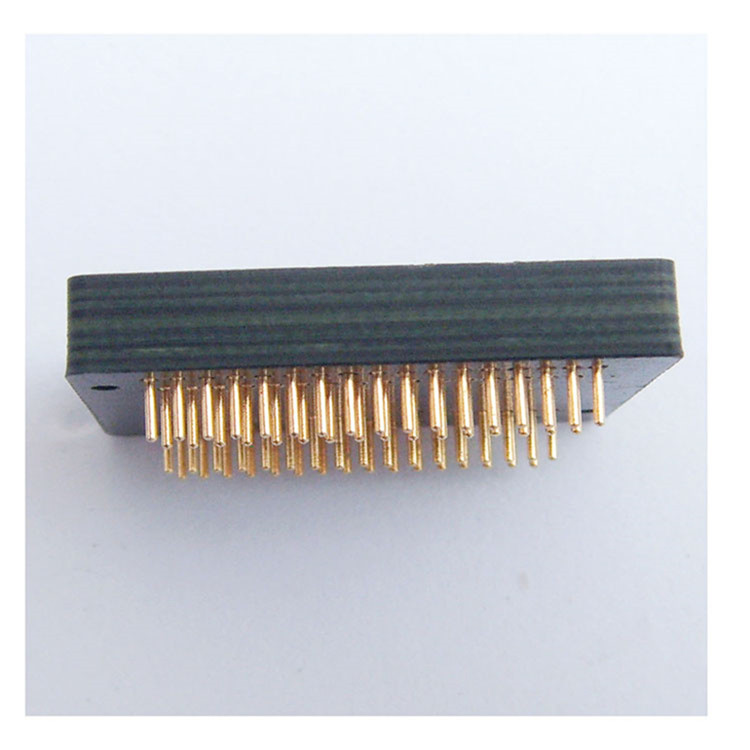

TSOP66 Pin Board 3

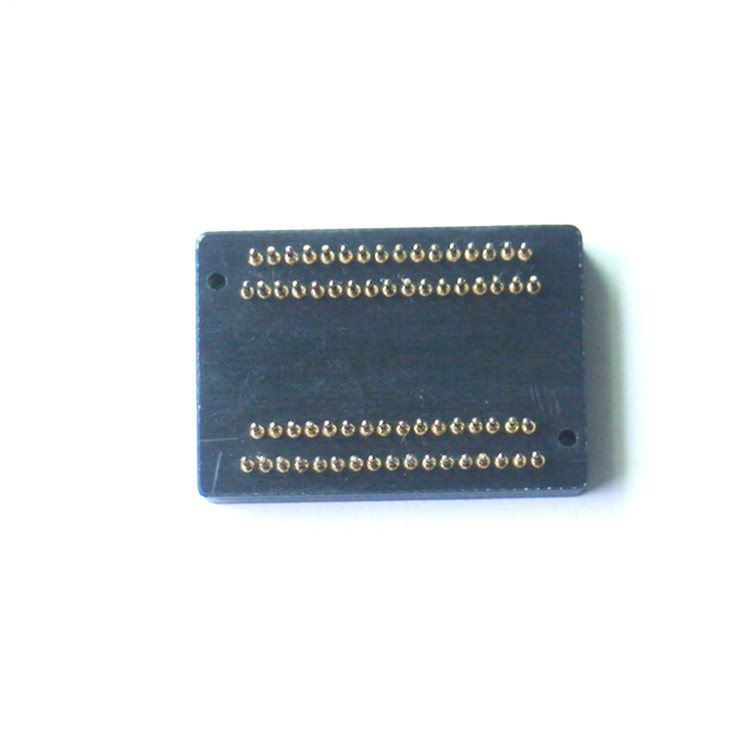

TSOP66 Pin Board 2

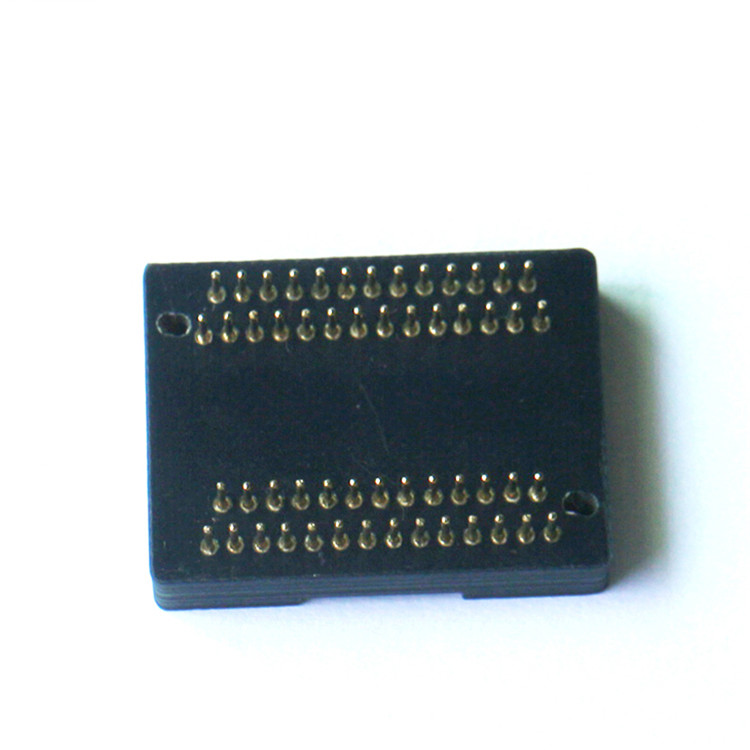

TSOP66 Pin Board 1

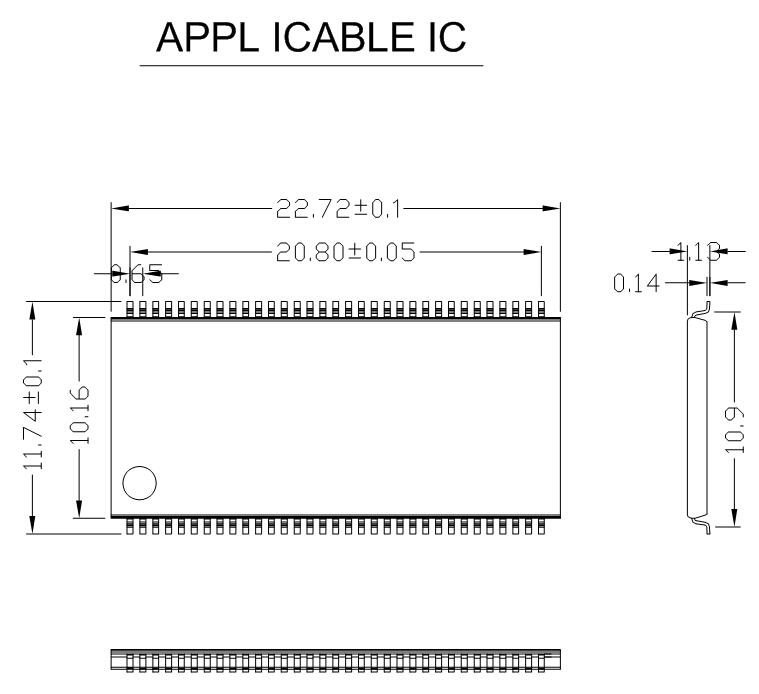

TSOP66 Pin Board
